Harsh Metalloys, located in Mumbai, India, has earned a solid reputation as a reliable manufacturer and supplier of Stainless Steel 440C Sheets and Plates. These products are celebrated for their remarkable hardness, impressive wear resistance, and excellent dimensional stability. Grade 440C is a high-carbon martensitic stainless steel that achieves the highest hardness among stainless steels when heat-treated. Our 440C sheets and plates come in a variety of thicknesses, finishes, and dimensions to meet a wide range of industrial needs. Designed for precision and strength, these materials are commonly used in tooling, aerospace, automotive, surgical, and mechanical applications where durability and resistance to abrasion are crucial.
Stainless Steel 440C Sheets and Plates generally consist of 16–18% Chromium and 0.95–1.20% Carbon, along with trace amounts of Manganese, Silicon, and Molybdenum. This specific composition allows the material to be heat-treated, achieving Rockwell hardness values of up to 58 HRC. It boasts a tensile strength exceeding 750 MPa and a yield strength of around 450 MPa. While its corrosion resistance is moderate compared to austenitic grades, it performs admirably in dry or mildly corrosive settings. These sheets and plates provide outstanding mechanical strength and wear resistance, making them ideal for machining and polishing tasks.
| ASME/ASTM Grade | ASTM A480 / ASME SA480 |
| Width Available | 1800mm, 3000mm, 1500mm, 2000mm, 1000mm, 2500mm, 1219mm, 3500mm etc |
| Thickness | 4mm – 100mm |
| Supply Length | 2000mm, 2440mm, 6000mm, 5800mm,3000mm etc |
| Most Commom Finish | SATIN (Met with Plastic Coated), 2B, Cold rolled sheet (CR), BA NO(8), Hot rolled plate (HR), 2D |
| Surface types | sand blast, etching, NO.1, embossed, hair line, 2B, Brush, BA, 2D, checkered, NO.8, 8K, NO.4, mirror, etc |
| Available Plate Form with us | Foils, Perforated Sheets, Plain Sheet, Coils, Rolls, Flats, Shim Sheets, Chequered Plate, Strip, Blank (Circle), Ring (Flange) etc. |
| Mo | S | C | Cr | Si | Mn | N | Ni | P |
| 0.75 | 0.03 | 0..95-1.20 | 16.00-18.00 | 1 | 1 | – | – | 0.04 |
| Tempering Temperature (°C) | Tensile Strength (MPa) | Yield Strength 0.2% Proof (MPa) | Elongation (% in 50mm) | Hardness Rockwell (HR C) | Impact Charpy V (J) |
| Annealed* | 758 | 448 | 14 | 269HB max# | – |
| 204 | 2030 | 1900 | 4 | 59 | 9 |
| 260 | 1960 | 1830 | 4 | 57 | 9 |
| 316 | 1860 | 1740 | 4 | 56 | 9 |
| 371 | 1790 | 1660 | 4 | 56 | 9 |
Contact us to get a quick quote for your requirement.
Stainless Steel 440C Hot Rolled Sheets have a high corrosion resistance and durability to be used for applications that need high strength. Usually available from 3mm to 50mm in thickness and up to 2000mm in width. These sheets are used for heavy-duty conditions where strength and toughness are in demand.

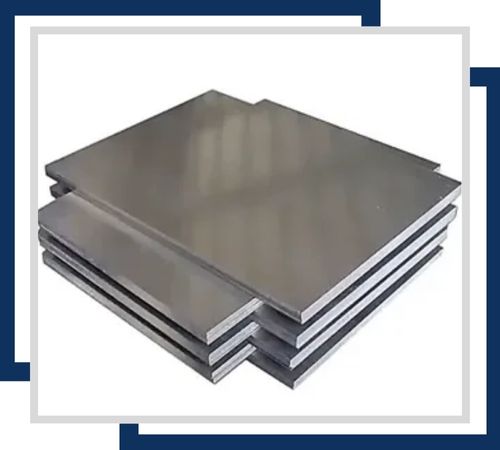

Stainless Steel 440C Cold Rolled Plates have excellent corrosion resistance and a smooth finish. The plates are generally supplied in the thickness of 0.5mm to 6mm and width up to 1250mm. The plates are best suited for applications where precision is needed along with high-quality surface finish.

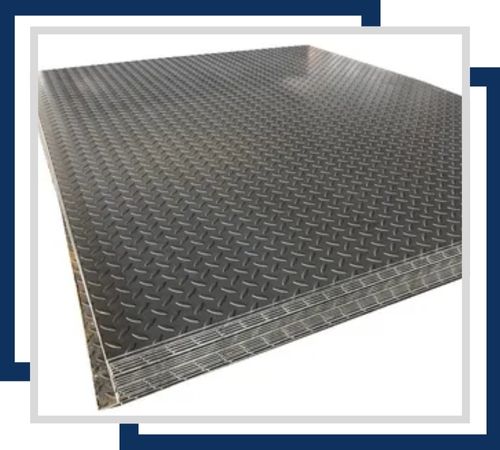

Stainless Steel 440C chequered sheet is used that provides raised patterns for enhanced friction resistance and scratch resistance. Highly corrosion resistant products with sizes as follows: -Thickness range 1.5 mm to 6 mm. They are available in standard sizes up to 1000mmx2000mm. Flooring application, safety purpose, industrial areas, etc.

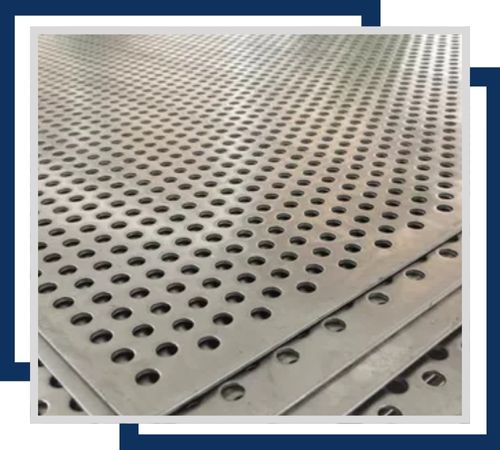

Stainless Steel 440C Perforated Sheets combine corrosion resistance with functional perforations for ventilation and filtration. Thickness ranges from 0.8mm to 6mm, with hole sizes and patterns. The sheets are used in architectural, industrial, and filtration applications where strength and design flexibility are needed.

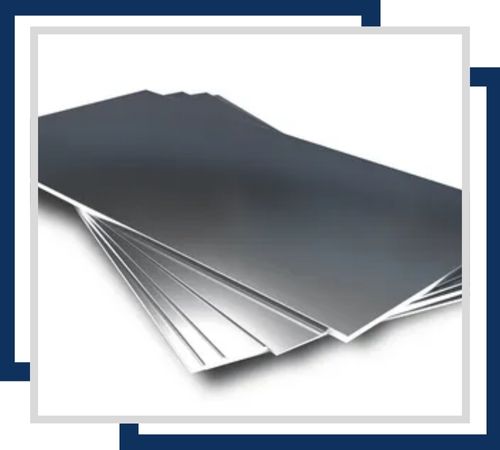

Stainless Steel 440C shim plates are provided with precise thickness tolerances and excellent corrosion resistance. They are available in the range starting from the thickness of 0.1mm up to 300mm width. It is ideal for applications requiring the proper spacing and adjustment, and for such machinery and assembly, it is preferred.

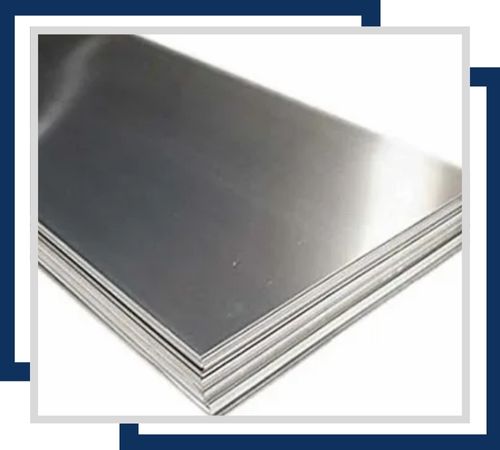

Stainless Steel 440C Polished Sheets offer a bright luster appearance with excellent corrosion resistance. Generally available in 0.5mm to 10mm thicknesses and up to 2000mm widths. These sheets are used in decorative and high-end applications where aesthetics and durability are important.
Harsh Metalloys specializes in bringing excellent customer experience with complete documentation for the superior-quality Stainless Steel 440C Sheets and Plates we offer to our customers. We provide commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-approved lab test reports that prove authentic and superior quality. In addition, all our Stainless Steel 440C Sheets and Plates are provided with various test certificates such as MTC according to EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third Party Inspection Certificates. These detail documents reflect that we are very customer-centric, and we aim for excellence with our products.
Stainless Steel 440C Sheet and Plates are used extensively in applications requiring high hardness, precision, and wear resistance. Common applications include cutting tools, molds, dies, valve components, ball bearings, and knife blades. They are also used in surgical instruments, aerospace parts, and automotive components where strength and dimensional accuracy are critical. Due to their ability to maintain edge sharpness and resist deformation, they are ideal for applications under high mechanical stress or friction. Their machinability and ability to achieve a fine finish make them highly suitable for precision manufacturing and industrial tooling.
