Home > Sheet and Plates > Stainless Steel 317L Sheet and Plates
Harsh Metalloys stands out as a top-notch manufacturer and supplier of Stainless Steel 317L sheets and plates, proudly based in Mumbai, India. We specialize in delivering high-quality stainless steel flat products that are renowned for their remarkable corrosion resistance, exceptional strength, and durability even in the toughest environments. Our SS 317L sheets and plates are crafted from premium raw materials and cutting-edge processing techniques, ensuring they meet international standards and serve a diverse array of industrial needs. With a strong commitment to quality, prompt delivery, and customer satisfaction, Harsh Metalloys is dedicated to supporting clients in the chemical, marine, pharmaceutical, and processing sectors both in India and abroad.
Our Stainless Steel 317L sheets and plates are composed of a low-carbon austenitic stainless steel alloy, featuring 18–20% chromium, 11–15% nickel, and 3–4% molybdenum. The low carbon content helps reduce carbide precipitation during welding, which boosts resistance to intergranular corrosion. These products boast a tensile strength of about 515 MPa and a yield strength of roughly 205 MPa. SS 317L is known for its outstanding resistance to pitting, crevice corrosion, and general corrosion, particularly in acidic and chloride-rich settings. Additionally, they provide excellent formability, weldability, and high-temperature strength, making them perfect for critical applications.
Stainless Steel Sheets and Plates Specification : ASTM A240 / ASME SA240
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
|---|---|---|---|---|---|---|---|---|---|
| 317L | 0.035 max | 2 max | 1 max | 0.040 max | 0.03 max | 18 – 20 | 3 – 4 | 11 – 15 | – |
| Density | 8.0 g/cm3 |
|---|---|
| Melting Point | 1454 °C (2650 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35 % |
Contact us to get a quick quote for your requirement.
High resistance to corrosion by chlorides and acids available as sheets and plates from a thickness of 3mm to 100mm in width to 2 meters. The hot-rolled product allows heavy usage because it produces a tough and durable finish.
With high corrosion resistance, the cold rolling provides cold rolled sheets and plates that range in thickness from 0.3mm to 6mm, with widths reaching up to 1.5 meters. In the case of cold rolling, it leaves the surface very smooth and precise for aesthetic and high-precision uses.
They have been designed with the patterned surface for superior friction and slip resistance. Chequered sheets and plates provide superior resistance to corrosion. These products are available from 1.5mm up to 6mm thickness in custom sizes as per application requirements.

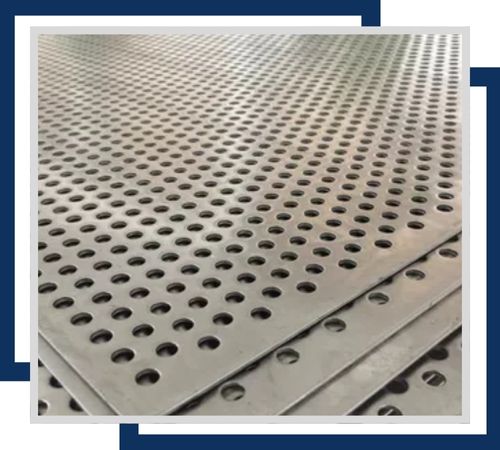

These sheets and plates are superior in corrosion resistance and perforated holes for ventilation, filtering, and aesthetic purposes. Common sizes range from 0.5mm to 6mm thick, and custom hole patterns and diameter sizes are offered according to several industrial and architectural needs.
Shim sheets and plates are highly resistant to corrosion and are used for precise spacing and alignment. They are thin gauges usually from 0.1mm to 3mm thick, but may be customized in dimensions according to the particular mechanical and industrial application.
They come with great corrosion resistance as well as the option of polishing to a mirror finish for aesthetic use, suitable in decorative or high-visibility applications. The sheets and plates range in thickness from 0.5mm to 12mm.
We, at Harsh Metalloys, ensure a completely hassle-free experience to our customer while providing documentation with our premium range of Stainless Steel 317L Sheets and Plates . Our pack consists of the commercial invoice, packing list, fumigation certificate, heat treatment chart, quality assurance plan, and NABL-approved lab test report. The quality and authenticity of our product get authenticated due to these documents, which then brings trust and confidence in the mind of our client. We also provide test certificate for our Stainless Steel 317L Sheets and Plates, like an MTC as per EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate. These certificates indicate our relentless pursuit of client satisfaction and our quest for excellence in the quality of the product.
Stainless Steel 317L sheets and plates find their place in various applications that involve exposure to aggressive chemicals and high moisture levels. This includes equipment used in chemical processing, pulp and paper production, food and beverage manufacturing, pharmaceuticals, and marine industries. Thanks to their high molybdenum content, they offer exceptional resistance to sulfuric acid and other harsh chemicals. SS 317L is also an excellent choice for heat exchangers, condensers, storage tanks, and evaporators. Its superior corrosion resistance, weldability, and durability make it the go-to material in industries where reliability and long-lasting performance under extreme conditions are crucial.
