Harsh Metalloys is a premier manufacturer and supplier of high-quality SS Forged Fittings based in Mumbai, India. Specializing in stainless steel forged fittings, we provide products that are manufactured with precision to meet stringent industry standards. Our fittings offer exceptional strength, durability, and corrosion resistance, making them suitable for critical applications in oil & gas, petrochemical, power, and chemical industries. With advanced forging technology and strict quality control, Harsh Metalloys ensures reliable performance and dimensional accuracy. We cater to diverse client needs with timely deliveries, competitive prices, and a strong commitment to customer satisfaction.
SS Forged Fittings by Harsh Metalloys are crafted from superior stainless steel grades such as SS 304, SS 316, and SS 316L. These alloys typically contain chromium (18–20%), nickel (8–14%), and molybdenum (up to 3%), providing excellent corrosion resistance and mechanical strength. The fittings exhibit tensile strength ranging from 520 to 750 MPa and yield strength above 205 MPa, with high toughness and ductility. The forging process enhances grain structure, resulting in superior mechanical properties and resistance to pressure, temperature, and harsh chemical environments, ideal for critical pipeline and industrial applications.
| Specifications | ASTM A403/ ASME SA403 |
|---|---|
| Size | Seamless Butt Weld Fittings : 1/2″ – 10″ Welded Butt Weld Fittings : 1/2″ – 48″ |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni |
| Stainless Steel Forged Fittings | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
We ensures that all stainless steel forged fittings undergo rigorous testing to ensure quality, strength and durability. Each product is thoroughly inspected using advanced techniques such as dimensional testing, pressure testing and material analysis. The company offers a full range of certifications, including ASTM, ISO, and other industry standards, assuring reliable and compliant fittings.

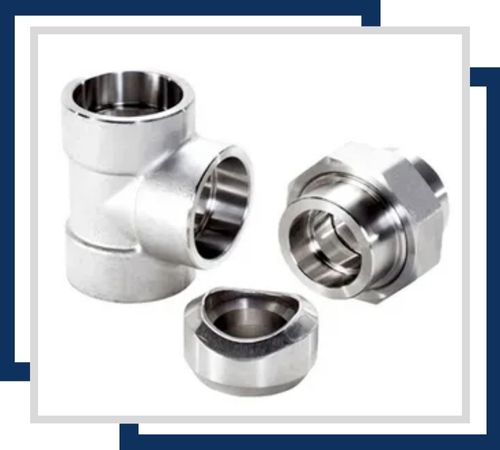

Corrosion-resistant and durable, these fittings are ideal for high-pressure applications. They are typically available in sizes ranging from 1/8 inch to 4 inches, with dimensions conforming to ANSI B16.11 standards, ensuring a secure and leak-proof connection.

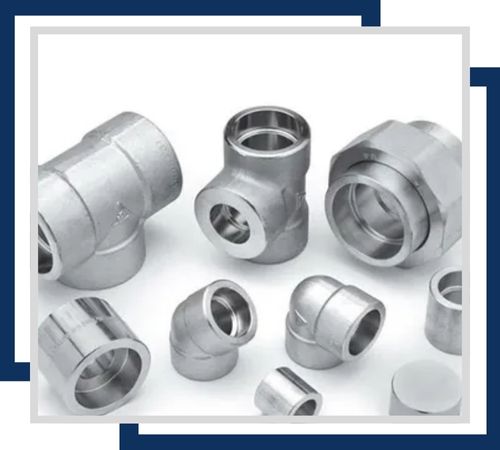

These fittings offer excellent corrosion resistance and are suitable for moderate to high-pressure applications. Sizes range from 1/8 inch to 6 inches. They conform to ASTM A105 or A182 standards, providing reliable connections with threaded ends for easy installation.

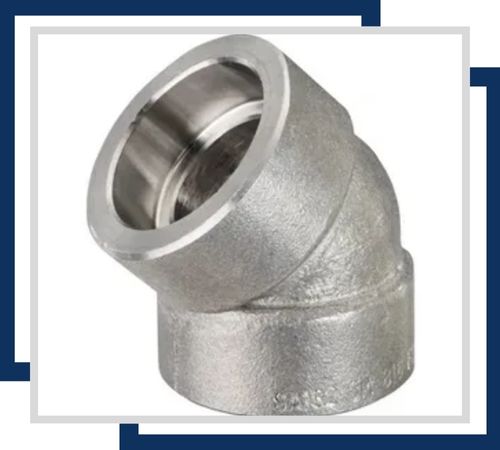

Designed for high-pressure systems, these elbows provide corrosion resistance and are available from 1/2 inch to 4 inches. They are made to ANSI B16.11 specifications, facilitating smooth directional changes in piping systems with minimal pressure loss.
Corrosion-resistant and versatile, threaded tees come from 1/8 inch to 6 inches. They adhere to ASTM standards, enabling the branching of pipes at a 90-degree angle while ensuring a secure and leak-free connection for various piping systems.

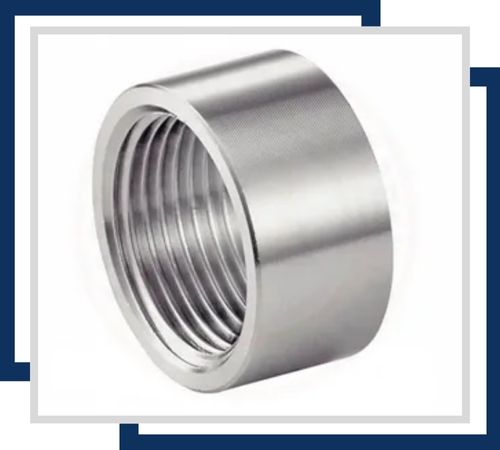

Half couplings are available in sizes from 1/8 inch to 6 inches, offering corrosion resistance and strength. They conform to ASTM A105 or A182 standards and are used to connect pipes or tubes, providing a reliable interface in threaded applications.

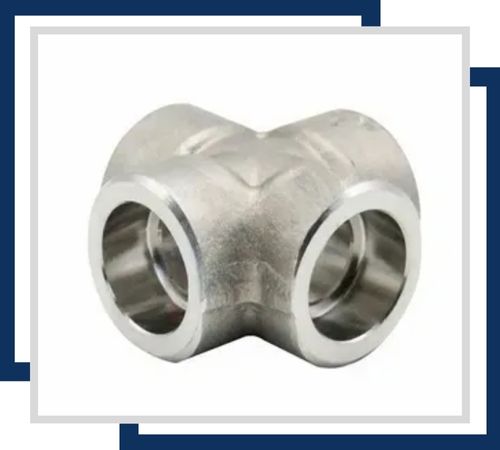

These fittings, resistant to corrosion and high-pressure environments, are available in sizes from 1/2 inch to 4 inches. They meet ANSI B16.11 standards and provide four-way connections, enabling the branching of pipes in multiple directions within a system.
SS Forged Fittings from Harsh Metalloys are essential components in industries requiring robust and leak-proof connections. Commonly used in oil & gas pipelines, chemical processing plants, power generation, and water treatment systems, these fittings ensure secure joint integrity under high pressure and corrosive conditions. They are ideal for use in high-temperature environments and in systems transporting fluids and gases. SS forged fittings are also widely employed in shipbuilding, pharmaceutical, and food processing industries due to their hygienic properties and durability. Their versatility and strength make them indispensable in both heavy industrial and specialized sanitary applications.
