Harsh Metalloys stands out as a top-notch manufacturer and supplier of **Stainless Steel 304/304L Sheet and Plates**, proudly based in Mumbai, India. Our sheets and plates are crafted from high-quality austenitic stainless steel, which means they boast remarkable corrosion resistance and strength. Grade 304 is the go-to choice for many due to its versatility, while 304L, the low-carbon variant, shines in terms of weldability. We offer these sheets and plates in various thicknesses and finishes, making them perfect for a multitude of industries, from chemical and food processing to marine and construction. We prioritize precision, durability, and compliance with international quality standards.
**Stainless Steel 304/304L** is made up of Chromium (18–20%), Nickel (8–12%), and low Carbon (≤0.08% for 304 and ≤0.03% for 304L), which together provide outstanding corrosion resistance and strength. These materials have a tensile strength of around 515 MPa and a yield strength of 205 MPa, along with impressive elongation and toughness. The lower carbon content in 304L minimizes the risk of intergranular corrosion after welding, making it ideal for high-weld applications. Both grades are known for their excellent forming and machining capabilities, as well as their resistance to oxidation and a variety of chemicals, whether in mild or harsh environments.
Stainless Steel Sheets and Plates Specification : ASTM A240 / ASME SA240
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| C | Mn | Si | P | S | Cr | Ni | N | |
|---|---|---|---|---|---|---|---|---|
| 304 | 0.07max | 2.0max | 0.75max | 0.045max | 0.03max | min: 18.0 max: 20.0 | min: 8.0 max: 10.5 | — |
| 304L | 0.03max | 2.0max | 0.75max | 0.045max | 0.03max | min: 18.0 max: 20.0 | min: 8.0 max: 12.0 | 0.10 max |
| Grade | Tensile Strength ksi (min) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
|---|---|---|---|---|---|
| 304 | 75 | 30 | 40 | 201 | 92 |
| 304L | 70 | 25 | 40 | 201 | 92 |
Contact us to get a quick quote for your requirement.

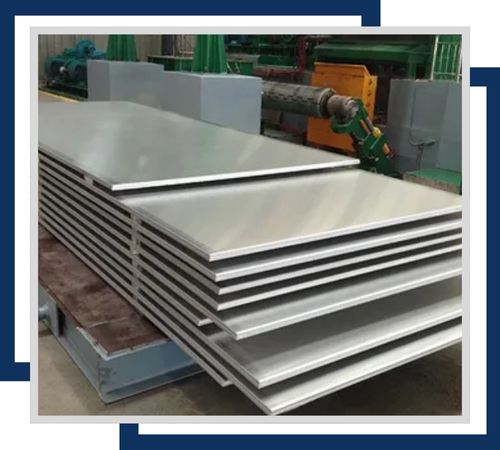

This type of stainless steel is known for its good corrosion resistance. The thickness of this type of stainless steel ranges from 3mm to 100mm. The sheets and plates are available in sizes up to 1500mm x 3000mm. Suitable for structural applications and industrial uses.

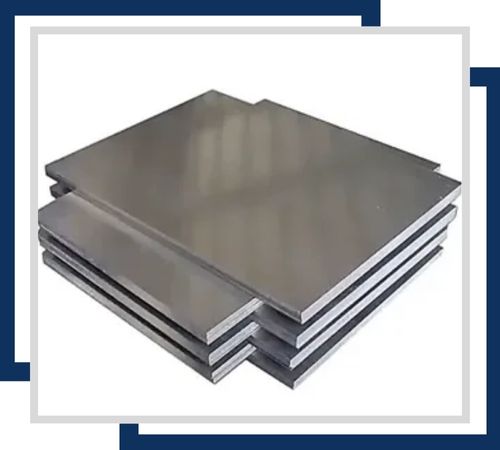

Offering great corrosion resistance, 304L cold-rolled sheets and plates are well known for smooth finish. These are available in thicknesses of 0.5mm up to 12mm, standard sizes up to 1500mm x 3000mm. They are ideal for applications requiring high-quality surface.

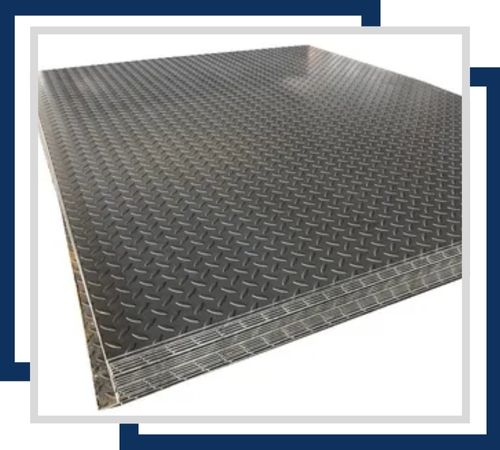

With superior corrosion resistance, 304L chequered sheets and plates are designed for anti-slip applications. They typically come in 2mm to 6mm thicknesses and sizes up to 1500mm x 3000mm. They are commonly used in flooring and stair treads.

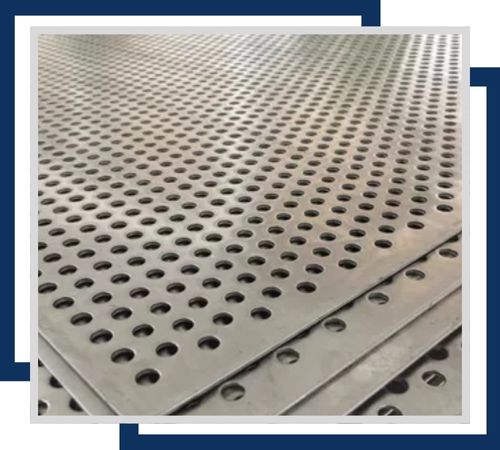

Featuring excellent corrosion resistance, these hole-perforated sheets and plates come in different hole patterns, size, and thickness with a specified range of 0.5mm to 6mm, standard dimension up to 1500mm x 3000mm, suitable for filtration and decorative uses.

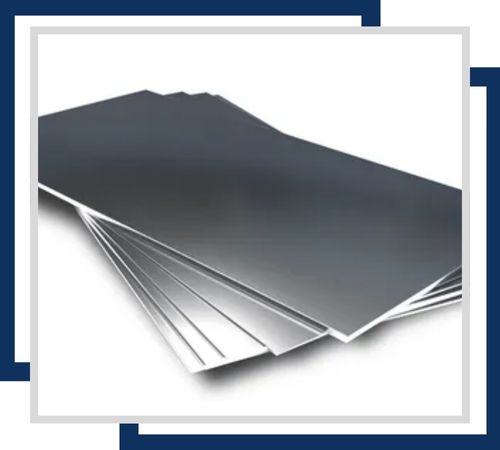

304 shim sheets and plates have good corrosion resistance. They can be as thin as 0.1mm. Standard sizes can go up to 1500mm x 3000mm. These are used in machinery for accurate spacing and adjustment.

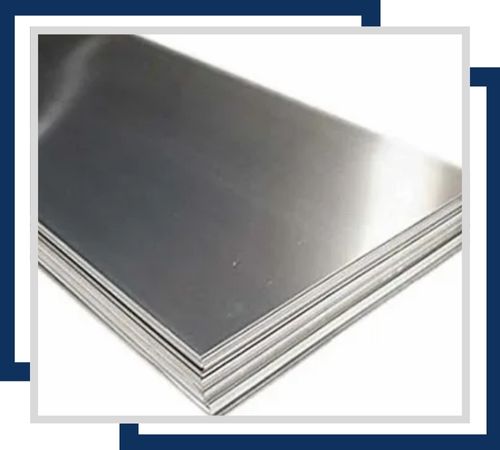

304 polished sheets and plates offer excellent corrosion resistance and a high-gloss finish. Thicknesses from 0.5mm to 12mm, and sizes up to 1500mm x 3000mm. Aesthetic and architectural applications.
Stainless Steel 304/304L Sheet and Plates find their way into a broad spectrum of industrial and commercial applications thanks to their superior formability and corrosion resistance. You’ll often see them in the fabrication of kitchen equipment, food processing machinery, chemical containers, marine hardware, and architectural panels. They’re also widely utilized in automotive components and heat exchangers, proving their versatility across different sectors.
