Home > Sheet and Plates > Stainless Steel 317 Sheet and Plates
Harsh Metalloys is a trusted manufacturer and supplier of Stainless Steel 317 Sheet and Plates in Mumbai, India, offering premium-grade products to various industries globally. SS 317 is a high-alloy austenitic stainless steel enriched with molybdenum, delivering superior corrosion resistance compared to conventional 304 or 316 grades. Our SS 317 sheets and plates are engineered to withstand aggressive environments, including those with sulfuric, acetic, and formic acids. Manufactured to international standards such as ASTM A240, these sheets and plates come in various thicknesses, sizes, and surface finishes. Harsh Metalloys ensures reliable performance, high strength, and long service life in demanding applications.
Stainless Steel 317 Sheet and Plates contain approximately 18–20% chromium, 11–15% nickel, and 3–4% molybdenum, with a maximum carbon content of 0.08%. This composition offers excellent resistance to pitting, crevice corrosion, and chemical attacks. The material has a minimum tensile strength of 515 MPa and a yield strength of 205 MPa, with good ductility and toughness even at elevated temperatures. These mechanical properties, combined with enhanced corrosion resistance, make SS 317 ideal for use in aggressive chemical environments and high-temperature applications where durability and structural integrity are essential.
Specifications: ASTM A240 / ASME SA240
Dimensions: ASTM, ASME, and API.
Width: 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Thickness:4mm-100mm
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Surface Finish: 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, chequered, embossed, hairline, sand blast, Brush, etching, Hot rolled plate (HR), Cold rolled sheet (CR), SATIN (Met with Plastic Coated) etc
Form: Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
|
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
Fe |
|
SS 317 |
0.08 max |
2.0 max |
1.0 max |
0.045 max |
0.030 max |
18.00 – 20.00 |
3.00 – 4.00 |
11.00 – 15.00 |
57.845 min |
|
Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
|
7.9 g/cm3 |
1400 °C (2550 °F) |
Psi – 75000, MPa – 515 |
Psi – 30000, MPa – 205 |
35 % |
Contact us to get a quick quote for your requirement.
Stainless Steel 317 Hot Rolled Sheet and Plates provide excellent strength along with excellent corrosion resistance for high-temperature and aggressive chemical environments. They are used in industrial applications requiring durability and toughness.
Stainless Steel 317 Cold Rolled Sheet and Plates provide a smooth surface finish and precise dimensions, suitable for any applications in chemical, marine, pharmaceutical industries with high requirements of superior corrosion resistance and aesthetic quality.
Stainless Steel 317 Chequered Sheet and Plates are used in slip-resistant and long-lasting applications like flooring and stair treads. They are excellent corrosion-resistant materials, which can be used for both industrial and decorative purposes.

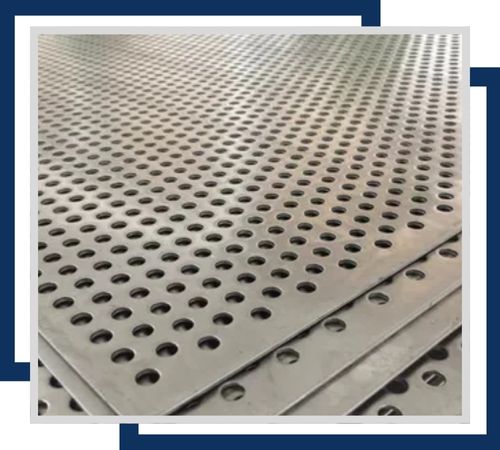

Stainless Steel 317 Perforated Sheet and Plates are used for filtration, ventilation, and architecture. It incorporates strength with the corrosion resistance capabilities of the plates along with useful perforations; hence, ideal for custom design and structural purposes in aggressive applications.
Stainless Steel 317 Shim Sheet and Plates are deployed for precision spacing and alignment within machinery and equipment. It shows high strength as well as resistant to corrosion features, thus sustaining stability and endurance in critical operations.
Stainless Steel 317 Polished Sheet and Plates have a very high-quality, reflective finish which is suitable for decorative and architectural applications. These have excellent corrosion resistance and are used in the environments where the appearance and durability are key requirements.
Stainless Steel 317 Sheets and Plates are widely used in industries that demand exceptional corrosion resistance and strength. Applications include chemical processing, marine equipment, pulp and paper manufacturing, food and beverage production, and pollution control systems. These sheets and plates are commonly utilized in the fabrication of tanks, reactors, pressure vessels, heat exchangers, evaporators, and flue gas desulfurization systems. Due to their superior resistance to a wide range of chemicals and elevated temperatures, SS 317 sheets and plates are preferred for critical environments. Harsh Metalloys offers custom-cut sheets and plates to meet client-specific design and performance requirements
