Harsh Metalloys stands out as a top manufacturer and supplier of Stainless Steel 415 Sheets and Plates, proudly based in Mumbai, India. SS 415 is a martensitic stainless steel celebrated for its impressive strength, decent toughness, and moderate resistance to corrosion. These sheets and plates find their way into applications that demand high mechanical strength and some level of corrosion resistance, particularly in mildly corrosive settings. Harsh Metalloys provides SS 415 sheets and plates in a variety of thicknesses, widths, and finishes, all adhering to global standards like ASTM A240. They’re perfect for automotive, industrial machinery, construction, and tooling projects.
When it comes to Composition and Mechanical Properties, SS 415 Sheets and Plates generally consist of 12–14% chromium, 0.15–0.50% carbon, along with trace amounts of manganese, silicon, and molybdenum to boost hardenability and strength. This alloy boasts a tensile strength ranging from 750 to 930 MPa, a yield strength of about 450 MPa, and an elongation of 15–20%, depending on the heat treatment applied. As a martensitic steel, SS 415 is magnetic, and its characteristics can be significantly improved through hardening and tempering. It also offers good wear resistance and moderate corrosion resistance in less aggressive environments, making it a solid choice for structural and mechanical applications.
| Specifications : | ASTM A240 / ASME SA240 |
| Dimensions : | ASTM, ASME and API |
| Standard : | JIS, AISI, ASTM, GB, DIN, EN, etc. |
| Surface : | 2B, 2D, BA, NO.4, NO.8, 8K, Mirror,Checkered, Embossed, Hair Line, Sand Blast, Brush, Etching |
| Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm,etc. |
| Finish : | Black,Bright Polished,Rough Turned,No.4 Finish,Matt Finish,BA Finish |
| Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc. |
| Grade | C | Mn | P | S | Si | Ch | Ni | Mo |
| SS 415 | 0.05 max | 0.50-1.00 | 0.030 max | 0.030 max | 0.60 max | 11.5-14.0 | 3.5-5.5 | 0.50-1.00 |
| Tensile Strength R₃ N/mm² | 700-800 | 700-800 | 700-800 | 700-800 | 700-800 | 700-800 | 700-800 |
| 0.2% Offset Yield Strength Rᵖ ≥N/mm² | 520 | 520 | 520 | 520 | 520 | 520 | 520 |
| Elongation in 2 inches, % | 15 min | 15 min | 15 min | 15 min | 15 min | 15 min | 15 min |
| Grade | Density lbm/in3 | Melting Range(°F) | Thermal Conductivity(BTU-in/hr- ft. °F) | Electrical Resistivity(in x 10-6) | Modulus of Elasticity (psi x 106 | Coefficient of Thermal Expansion (in/in)/°F x 10-6 | Specific Heat(BTU/lb/°F) |
|---|---|---|---|---|---|---|---|
| 415 | -at 68°F: 0.280 | 2700 to 2790 | 187 at 212°F | 23.7 at 68°F | 29 | 6.0 at 32 – 212°F | 0.11 at 68°F to 212°F |
| – | – | – | – | – | 7.5 at 68 – 1200°F | – |
Contact us to get a quick quote for your requirement.

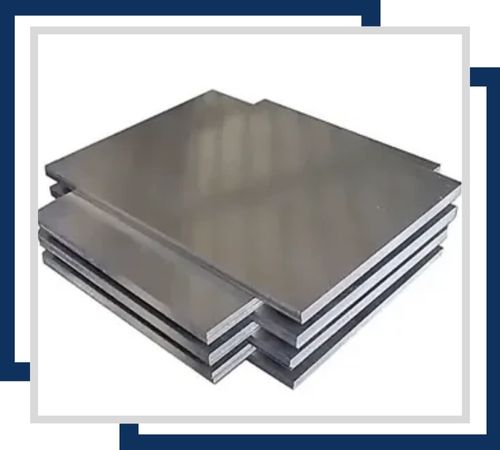

SS 415 Cold Rolled Sheets are stainless steel sheet with a bright surface finish, high strength, and excellent durability. Sheets available in various sizes between 0.3 mm to 3.0 mm thickness range and from 1000 mm to 2000 mm width with suitable applications.

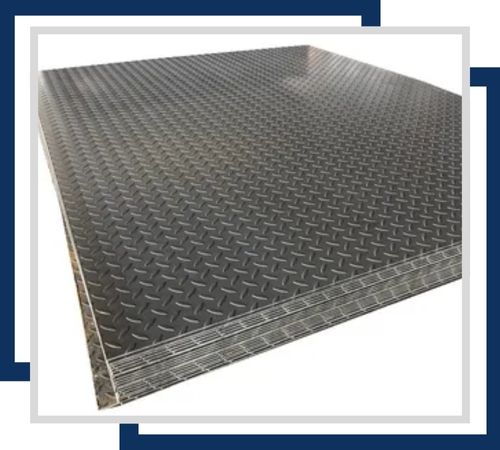

SS 415 chequered plates are stainless steel sheets with raised, textured patterns on them for maximum slip resistance and strength. It is available in various thicknesses and sizes, and it finds its application as a flooring or ramp material as well as an industrial application in the form of excellent corrosion resistance and aesthetic value.

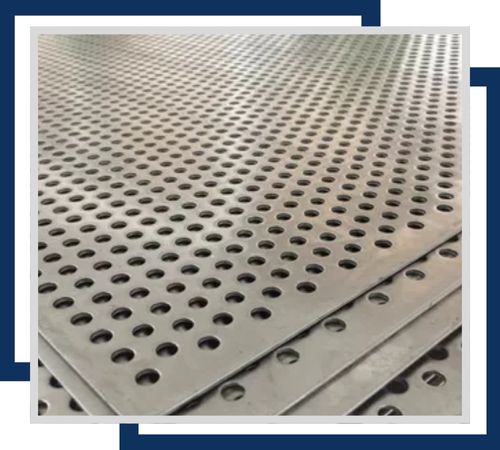

SS 415 perforated plates are of high-quality stainless steel sheets designed with precise holes to provide better ventilation, filtration, and strength. The plates can be available in a variety of sizes, with the standard being 4′ x 8′, or as custom sizes depending on the particular application in industries.

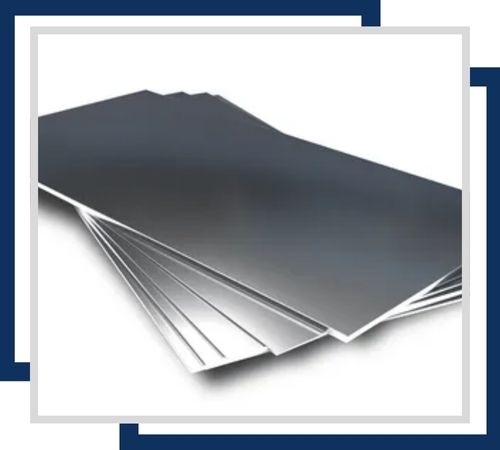

SS 415 Shim Sheets are precision engineered stainless steel sheets for industrial purposes. These have excellent corrosion resistance and strength with sizes ranging from 0.05mm to 5mm thickness and various lengths and widths, which can be customized according to the specific need.

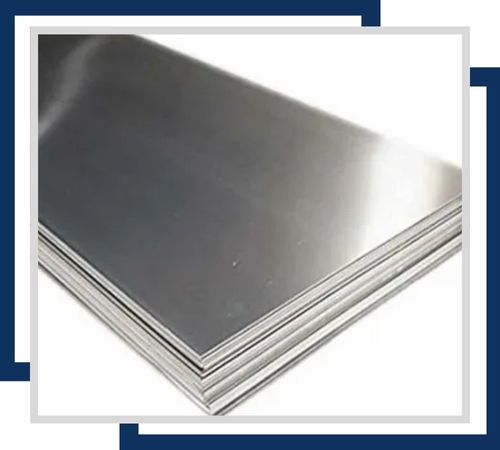

SS 415 Polished Plates are stainless steel sheets of great quality, highly recognized for corrosion resistance, strength, and shine. The SS 415 plates vary in different sizes, normally in the thickness between 0.5mm and 50mm. The product is available in any length and width as per the needs of various industrial applications.
Stainless Steel 415 Sheets and Plates are commonly found in various mechanical and structural applications, including shafts, gears, fasteners, valve parts, and tooling components. Thanks to their impressive strength and hardenability, they’re perfect for parts that face moderate wear and impact, particularly in automotive components, pump shafts, and agricultural machinery. You’ll also see them in industrial machinery, construction equipment, and hardware tools. While SS 415 may not boast the same level of corrosion resistance as austenitic grades, it holds up quite well in dry or mildly corrosive settings, making it a budget-friendly choice for projects that demand high strength, good machinability, and long-lasting durability.
