Home > Sheet and Plates > Stainless Steel 202 Sheet and Plates
Harsh Metalloys is a reputable manufacturer and supplier of Stainless Steel 202 Sheets and Plates, proudly based in Mumbai, India. SS 202 is an austenitic stainless steel that combines chromium, nickel, and manganese, providing a budget-friendly alternative to the pricier 300 series grades. Our SS 202 sheets and plates are crafted to meet international standards like ASTM A240, ensuring top-notch quality and dependability. With impressive mechanical strength, decent corrosion resistance, and excellent formability, these sheets and plates are perfect for decorative uses, kitchen equipment, architectural panels, and light structural components.
Stainless Steel 202 Sheets and Plates are made up of about 17–19% chromium, 4–6% nickel, and 7.5–10% manganese, along with trace amounts of carbon, silicon, phosphorus, and sulfur. They usually show a tensile strength between 515 to 750 MPa, a yield strength of around 275 MPa, and can elongate up to 40%. SS 202 provides moderate corrosion resistance, particularly in indoor settings and mildly corrosive environments. While it’s non-magnetic in its annealed state, it can become slightly magnetic after cold working. This material boasts excellent weldability, formability, and machinability, making it ideal for a wide range of fabrication processes.
| Item | 202 Stainless Steel Plate (Hot rolled, cold rolled) |
| Standard | JIS, AISI, ASTM, GB, DIN, EN |
| Range | 0.5 mm To 150mm |
| Material | 202 SS Plates / Sheets / Coil |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |
| Thickness | 0.1 to 200 mm |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Brand | Indian Origin, European Origin, Japanese Origin, US Origin, Korea Origin, Thailand Origin, Taiwan Origin |
| Finish | Hot rolled sheet (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Element | Content (%) |
| Iron, Fe | 68 |
| Chromium, Cr | 17- 19 |
| Manganese, Mn | 7.50-10 |
| Nickel, Ni | 43620 |
| Silicon, Si | ≤ 1 |
| Nitrogen, N | ≤ 0.25 |
| Carbon, C | ≤ 0.15 |
| Phosphorous, P | ≤ 0.060 |
| Sulfur, S | ≤ 0.030 |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 515 MPa | 74694 psi |
| Yield strength | 275 MPa | 39900 psi |
| Elastic modulus | 207 GPa | 30000 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation at break | 40% | 40% |
Contact us to get a quick quote for your requirement.

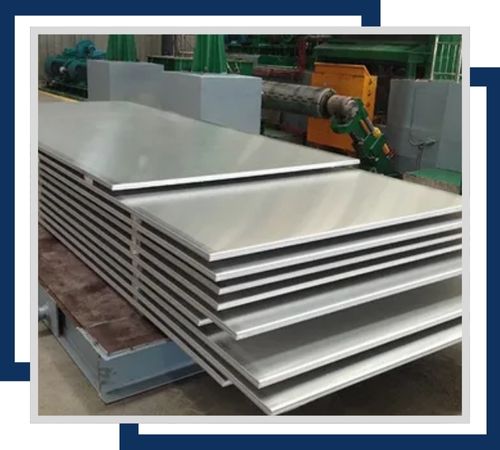

Stainless Steel 202 Hot Rolled Plates are available in thickness ranges starting from 4mm up to 150mm. The plates are rolled at high temperatures to give them more malleability and to easily form their shape. The product has good resistance to corrosion and is applied in durability and strength-based applications.

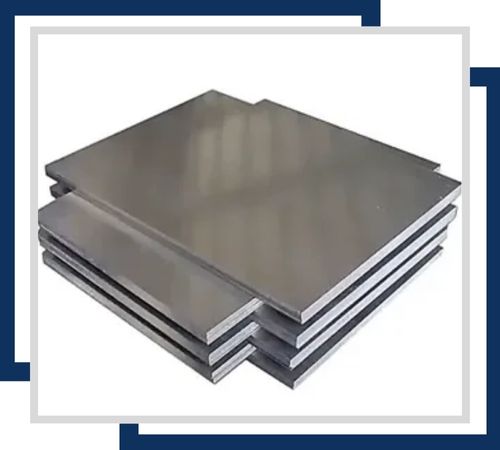

Stainless Steel 202 Cold Rolled Plates are processed by cold rolling of steel. These are a smoother and closer tolerance plate in comparison with the hot rolled ones. Good resistance to corrosion qualifies them as highly suitable for high precision requirements as well as providing an aesthetic-looking surface finish for applications.

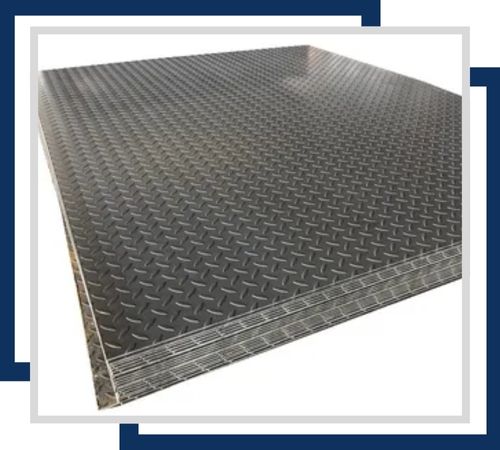

Stainless Steel 202 Chequered Sheets are offered in various thicknesses, from 1.2mm to 8mm. These sheets have a raised pattern, which is slip-resistant and suitable for flooring or walkways. Their inherent corrosion resistance will prove to be long-lasting even in adverse environments.

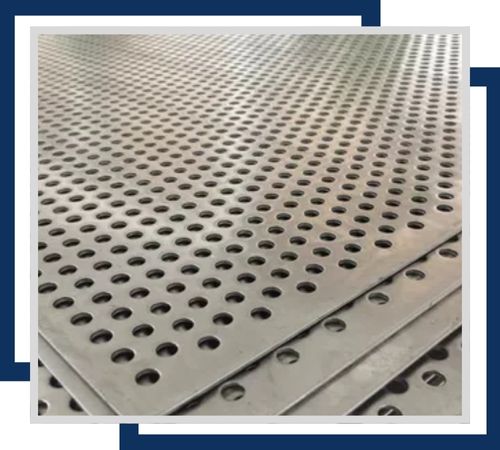

Stainless Steel 202 Perforated Sheets are manufactured in thicknesses ranging from 0.3mm to 8mm and are available in various hole patterns and sizes. These sheets are used for filtration, ventilation, and decorative purposes because of their excellent strength and corrosion resistance. The perforations reduce weight while maintaining structural integrity.

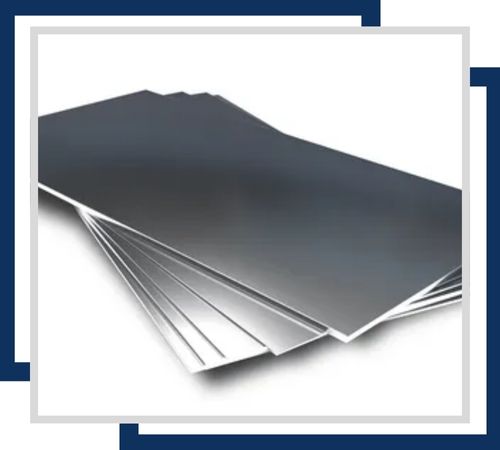

Stainless Steel 202 Shim Sheets are available in thicknesses from 0.05mm to 3mm. These sheets are precision-engineered for alignment and leveling applications. Excellent corrosion resistance ensures reliable performance in various industrial environments.

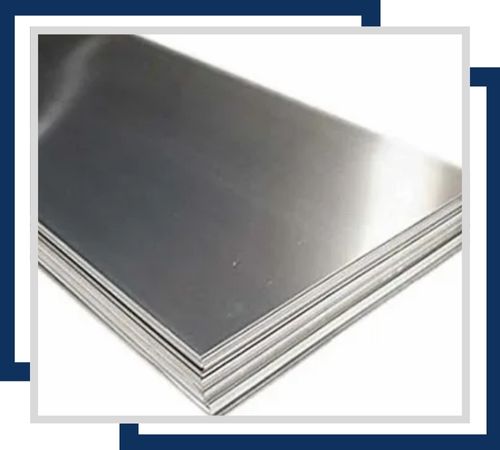

202 Polished Sheets and Plates offering good corrosion resistance, with excellent reflective appearance. Range from 0.5 to 12 mm thick and are up to 1500 mm x 3000 mm. Use for visual or architectural ends.
Stainless Steel 202 Sheets and Plates are incredibly versatile and find their way into a variety of applications, from kitchen appliances and decorative wall panels to furniture, storage tanks, railings, and automotive trim. They’re also perfect for architectural cladding, elevator panels, and indoor structural components where both looks and durability matter. SS 202 sheets and plates offer a cost-effective solution for projects that need decent corrosion resistance and solid mechanical properties. Their ease of forming, welding, and polishing makes them a favorite in industries like construction, consumer goods, transportation, and food processing, where functionality and cost-efficiency are essential.
