Harsh Metalloys, a reputable manufacturer and supplier located in Mumbai, India, specializes in high-quality Stainless Steel 439 Sheets and Plates. These products are crafted for outstanding corrosion resistance, excellent thermal stability, and impressive formability. SS 439 is a titanium-stabilized ferritic stainless steel, designed to provide enhanced weldability and oxidation resistance compared to standard 409 grades. Available in various thicknesses and dimensions, these sheets and plates meet global standards like ASTM, ASME, and DIN. Common applications include automotive exhaust systems, heat exchangers, and food processing equipment, making SS 439 a smart choice for both performance and cost-effectiveness.
Stainless Steel 439 Sheets and Plates generally consist of 17–19% Chromium and are stabilized with Titanium to improve weldability and resistance to intergranular corrosion. The carbon content is kept low (≤ 0.03%) to avoid sensitization during welding. SS 439 boasts a tensile strength ranging from 415–585 MPa and offers good ductility. It shows excellent resistance to stress corrosion cracking and high-temperature oxidation. With its ferritic structure, it is magnetic and provides strong resistance to chloride-induced corrosion, making it a dependable and long-lasting option for high-temperature and mildly corrosive environments.
Specifications : ASTM A240 / ASME SA240
Size : 1/4″ to 4″
Range : 5mm To 150mm
Thickness : 4.0mm – 100mm
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form : Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange)
| Grade | C | Mn | Si | S | P | Cr | Mo | Ti |
| SS 439 | 0.01 max | 0.25 max | 0.35 max | 0.0015 max | 0.02 max | 17.35 | 0.1 | 0.335 |
| Element | Density | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Hardness |
| SS 439 | 7.8 g/cm3 | 438 MPa | 263 MPa | 2.80% | 72.9 |
Contact us to get a quick quote for your requirement.

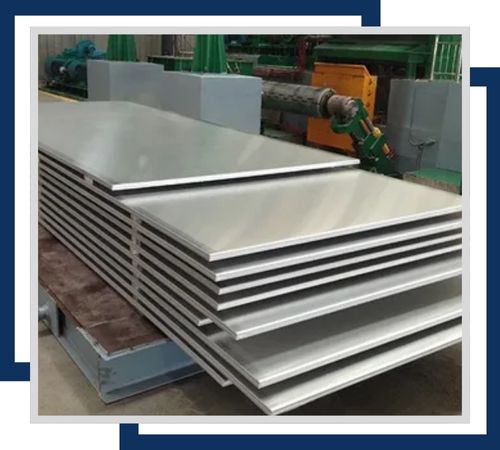

Stainless Steel 439 Hot Rolled Sheets have excellent corrosion resistance. The sheets are available in sizes from 3mm to 150mm in thickness and up to 2500mm in width. They are widely used in the construction and automotive industries.

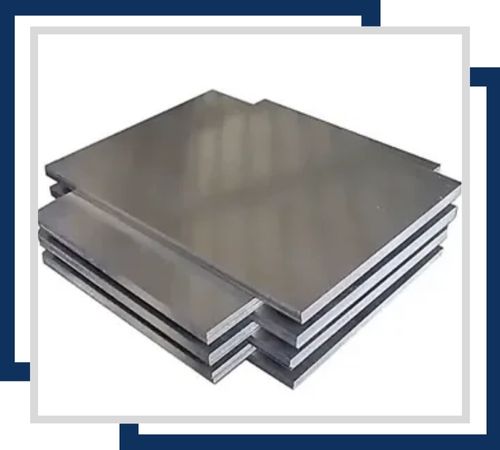

Superior corrosion resistance is given by Stainless Steel 439 Cold Rolled Plates. These plates are produced in the thickness range from 0.5mm up to 6mm and in width up to 2000mm with a smoother surface finish and mechanical properties better than hot-rolled plates.

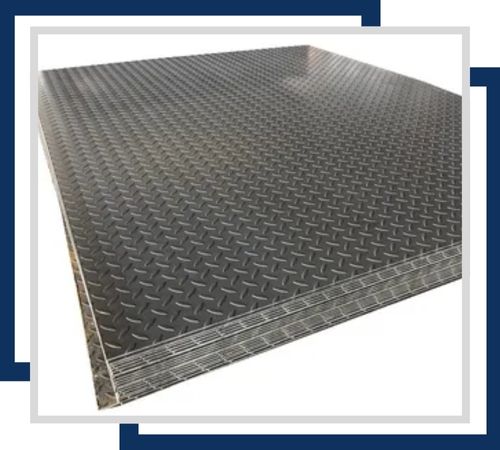

Stainless Steel 439 Chequered Sheets feature superior corrosion resistance. The available range is common from 1.5mm up to 10mm thickness in chequered pattern sheets for anti-slip purposes such as floor plates, stair treads, and various forms of stair flooring.

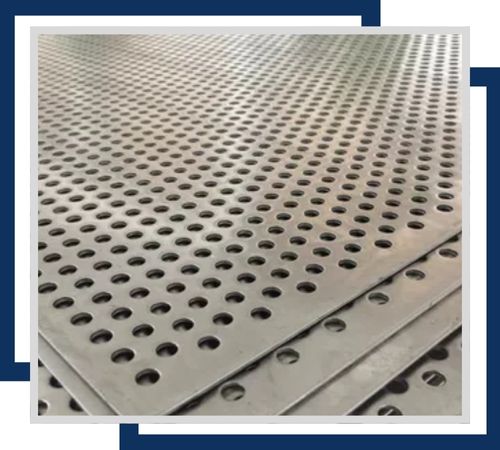

Stainless Steel 439 Perforated Plates give an excellent level of corrosion protection. These can be offered from 0.5mm through to 5mm in several hole sizes and patterns for different purposes like filtering, ventilation and for decorative reasons in various engineering applications.

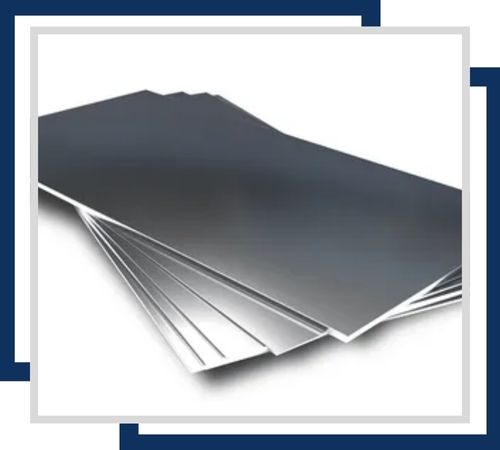

Corrosion resistive Stainless Steel 439 Shim Sheets are manufactured using thin-precision-cut steel sheet, between 0.05mm to 3mm which are used by engineering applications at tighter tolerances to space and align.

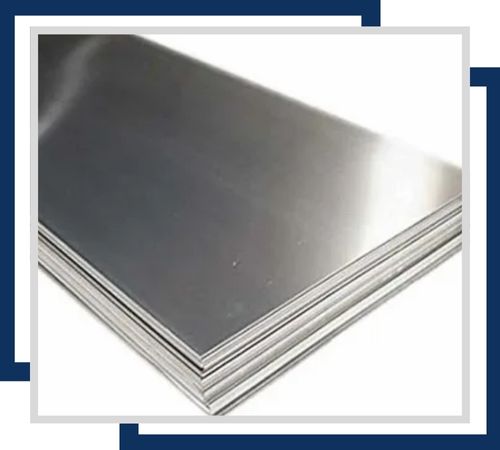

Stainless Steel 439 Polished Plates offer excellent corrosion resistance. Plates available in thickness from 0.5mm to 6mm and widths up to 2000mm with a high-gloss finish are ideal for architectural and decorative applications.
Harsh Metalloys is committed to the delivering of premium quality accompanied by comprehensive documentation for our premium Stainless Steel 439 Sheets and Plates. Some of the essential documents being: commercial invoice, packing list, fumigation certificate, heat treatment charts, quality assurance plans, and NABL approved lab test reports. These documents validate the quality and origin of the product, thereby giving confidence and trust with the valued customers. With an inherent high creep strength, as well as oxidation, our Stainless Steel 439 sheets and plates consist of test certificates, such as MTC under EN 10204/3.1B, PMI test certificates, 100 % radiography reports, and also third-party inspection.
Stainless Steel 439 Sheets and Plates are a go-to choice in the automotive world, especially for exhaust systems, catalytic converters, and mufflers, thanks to their impressive heat resistance and durability. But they don’t stop there! You’ll also find them in industrial heat exchangers, furnace parts, food processing equipment, and even in commercial kitchen appliances. The stability of SS 439 during thermal cycling makes it perfect for components that deal with changing temperatures. Plus, its fantastic formability means it can be easily deep drawn and bent, making it a great fit for custom parts in architectural and construction projects. With its corrosion resistance and low maintenance needs, it’s a smart choice for budget-conscious environments.
