Home > Sheet and Plates > Stainless Steel 405 Sheet and Plates
Harsh Metalloys is a renowned manufacturer and supplier of premium-quality SS 405 Sheets and Plates based in Mumbai, India. We specialize in offering stainless steel 405 flat products that combine durability, oxidation resistance, and cost-effectiveness. SS 405 is a ferritic stainless steel developed for improved machinability and heat resistance, making it ideal for industrial applications involving moderate corrosion and high-temperature exposure. At Harsh Metalloys, we ensure precise dimensions, uniform surface finishes, and strict quality control, catering to sectors such as automotive, thermal processing, power generation, and fabrication. Our commitment to quality and timely delivery makes us a trusted industry partner.
SS 405 Sheets and Plates are made from ferritic stainless steel containing 11.5–14.5% chromium, with low carbon and small amounts of aluminum to enhance oxidation resistance and stability. The material offers tensile strength between 415–585 MPa and yield strength around 205 MPa, with good elongation and ductility. SS 405 demonstrates excellent resistance to thermal fatigue, scaling, and welding-related distortion. Its ferritic structure makes it suitable for forming and moderate fabrication processes, offering good dimensional stability in high-temperature service conditions. These mechanical properties make SS 405 a reliable and economical choice for heat-resistant applications.
| specifications | ASTM A240, ASME SA240 |
| Dimensions | ASTM, ASME and API |
| Standard | JIS, AISI, ASTM, GB, DIN, EN, etc. |
| Surface | 2B, 2D, BA, NO.4, NO.8, 8K, Mirror,Checkered, Embossed, Hair Line, Sand Blast, Brush, Etching |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm,etc. |
| Finish | Black,Bright Polished,Rough Turned,No.4 Finish,Matt Finish,BA Finish |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc. |
| ELEMENT | C | Mn | P | S | Si | Cr | Al | Fe |
| SS 405 | 0.08 max | 1.00 max | 0.040 max | 0.030 max | 1.00 | 13.00 | 0.2 | 85 |
| Grade/Temper | Tensile Strength ksi (min.) | Yield Strength 0.2% ksi (min.) | Elongation -% in 50 mm (min.) |
| SS 405 | 448 MPa | 276 MPa | 25.00% |
Contact us to get a quick quote for your requirement.

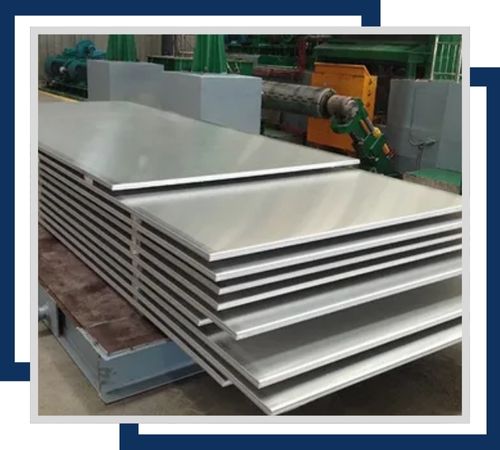

Stainless Steel 405 Hot Rolled Sheets have reasonable corrosion resistance; it is preferred for high-strength and toughness applications. This product is commercially available in range from 3mm to 50mm width up to 2000 mm.

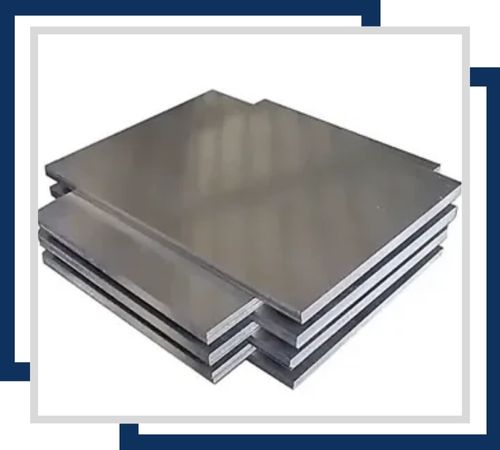

Stainless Steel 405 Cold Rolled Plates provide excellent resistance to corrosion combined with a refined surface finish as well as enhanced dimensional accuracy. The plates in this product line are available within a thickness ranging from 0.5 mm to 6 mm and width ranges up to 1500mm.

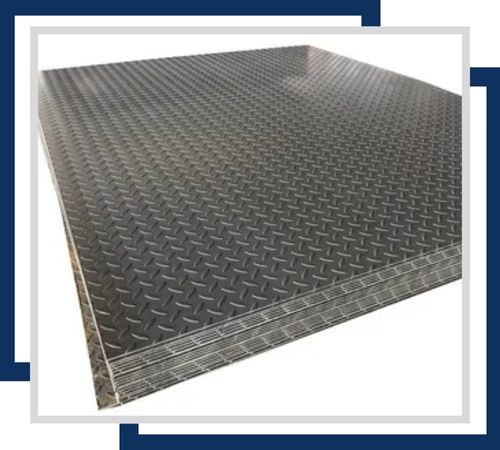

Stainless Steel 405 Chequered Plates offer raised patterns to provide slip resistance and durability and have moderate corrosion resistance. It is widely available in 2mm to 12mm in thickness and 1500mm width for flooring and safety applications.

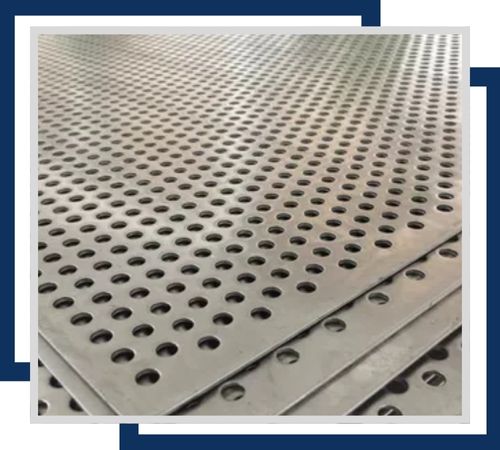

Stainless steel 405 perforated sheets allow for customizable holes in them through which different filtering and ventilation types can occur by combining the necessary corrosion-resistant factors. Stainless Steel 405 sheet thickness range-1mm -5mm width up to2000mm and height up to1000mm End.

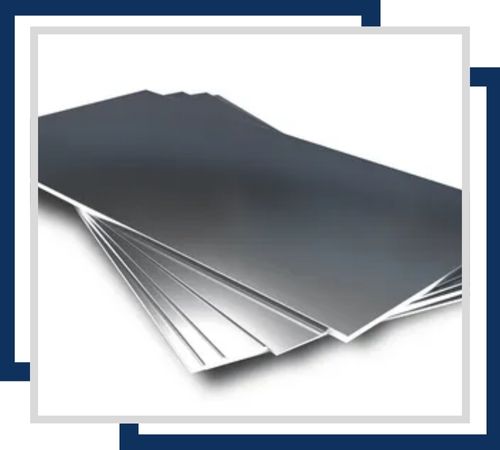

Stainless Steel 405 Shim Sheets have moderate corrosion resistance and are used for precise spacing and alignment in machinery. Thicknesses range from 0.1mm to 3mm, and sizes go up to 2000mm x 1000mm, making them very versatile for application.

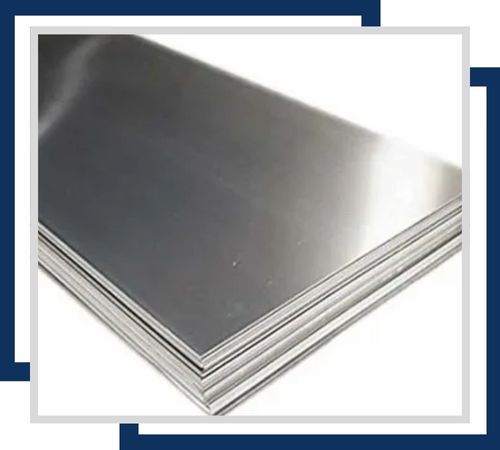

Stainless Steel 405 Polished Plates offer enhanced corrosion resistance and a high-quality surface finish. Typically available in thicknesses from 0.5mm to 50mm and widths up to 2000mm, these plates are used in decorative and high-visibility applications.
Harsh Metalloys is committed to providing the most excellent customer experience that comes with complete documentation for our top-class Stainless Steel 405 Sheets and Plates. We provide must-have documents: Commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-approved lab test reports. These documents prove the quality and the origin of the product, giving confidence and trust to our respected customers. In addition, we provide our Stainless Steel 405 Sheets and Plates with test certificates, including MTC according to EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third-Party Inspection Certificates, which is a reflection of our commitment to product excellence and customer satisfaction.
SS 405 Sheets and Plates from Harsh Metalloys are widely used in applications where heat resistance and moderate corrosion resistance are essential. Common uses include furnace linings, heat exchanger components, steam turbine parts, automotive exhaust systems, and welded fabrications operating under thermal cycling. These sheets and plates are also used in power plants, industrial boilers, and process equipment where structural integrity under high temperatures is critical. Thanks to their improved machinability and resistance to oxidation, SS 405 flat products are a preferred choice for cost-effective performance in demanding industrial environments with moderate corrosive exposure.
