Home > Sheet and Plates > SS 15-5 PH Sheet and Plates
Harsh Metalloys is one of the premier suppliers and stockists of Stainless Steel 15-5 PH Sheets and Plates, having its presence in Mumbai, India. We supply high-quality SS 15-5 PH products used for critical applications where high strength, excellent corrosion resistance, and favorable mechanical properties are required. These precipitation hardening stainless steel plates and sheets are recognized by their uniformity, toughness, and ease of fabricability. Produced with strict quality control measures, our SS 15-5 PH plates and sheets are available in different dimensions and thicknesses and fulfill international standards. Harsh Metalloys provides guaranteed delivery, competitive rates, and customized solutions to Indian and international clients.
Stainless Steel 15-5 PH Plates and Sheets contain around 15% chromium, 5% nickel, and controlled content of copper and niobium. This alloy enables precipitation hardening and delivers high yield strength (maximum 1310 MPa), tensile strength (greater than 1170 MPa), and hardness (maximum 40 HRC) subsequent to proper heat treatment. SS 15-5 PH also possesses superior resistance to stress corrosion cracking and good toughness over a wide range of temperatures. Its excellent transverse characteristics, better weldability, and simple machinability make it a favorable selection for critical applications requiring high performance.
| Specification : | ASTM A564 / ASME SA564 AMS 5643 |
| Standard : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Length : | 1 to 6 Meters, Custom Cut Lengths |
| Form : | Round, Square, Hex (A/F), Rectangle Etc. |
| Grade | C | Cb+Ta | Cr | Cu | Fe | Mn | Ni | P | S | Si |
| SS 15-5 PH | 0.07 max | 0.15-0.45 max | 14.0-15.0 max | 2.5-4.5 max | Bal | 1.0 | 3.5-5.5 | 0.04 | 0.03 | 1.0 |
| Grade | Tensile Strength ksi (MPa) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Rockwell) MAX |
| SS 15-5 PH | 161,000 | 140,000 | 7.6% | C35 |
| Density | Electrical conductivity (% IACS) | Thermal conductivity (BTU-in/hr-ft²-°F) | Specific heat capacity | Thermal expansion (1/°F) | Melting Point (°F) |
| 0.282 | 1.72 | 97 | 0.11 | 0.00000589 | 2560 |
Contact us to get a quick quote for your requirement.
SS 15-5 PH cold-rolled sheets and plates are precision-formed stainless steel alloys that provide high strength, corrosion resistance and superior mechanical properties, Cold rolled for improved surface finish and tight tolerances. They are commonly used in high-performance applications such as aerospace, chemical processing, and construction materials, providing excellent durability and reliability
SS 15-5 PH is precipitation hardened sheet and plates, used in aerospace, marine, and chemical industries for high strength, corrosion resistance. They have excellent mechanical properties, hence provide durability along with resistance to stress corrosion cracking. Chequered plates are textured surface that provides improved grip and anti-slip properties.

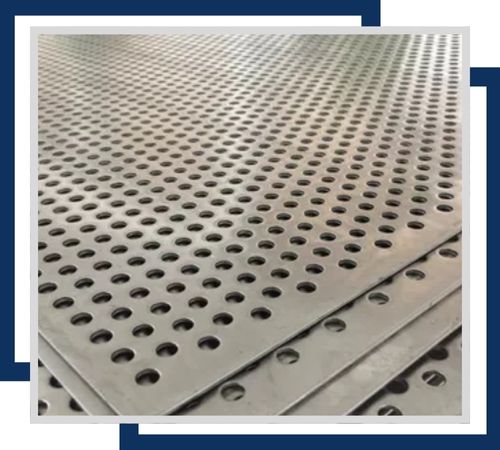

SS 15-5 PH is a good precipitation-hardening stainless steel available in sheet and plate form. Such perforated sheets and plates would offer a suitable combination of both strength and function with precise holes as filtration, venting, aesthetic design, retaining excellent mechanical properties.
SS 15-5 PH (Precipitation Hardened) sheets and plates are high strength, corrosion resistant stainless steel. Shim sheets of SS 15-5 PH provide uniform thickness, providing excellent dimensional accuracy for gaps and locations in machinery or buildings for widespread applications in air, space, chemical and technology to increase performance.
The polished SS 15-5 PH (Precipitation Hardened) plate is made of corrosion-resistant stainless steel with a smooth and luminous surface This plate provides excellent mechanical properties and resistance to compression which is difficult to crack. Commonly used in aerospace, marine and medical applications, they offer functional and aesthetic benefits along with excellent durability.
Stainless Steel 15-5 PH Sheets and Plates find extensive applications in aerospace, chemical processing, marine, power generation, and medical equipment production industries. Such sheets and plates are suitable for parts like structural parts, fasteners, valves, gears, pressure vessels, and shafts where strength and corrosion resistance are of prime importance. Their resistance to hostile environments and retention of properties under stress conditions makes them apt for both cryogenic and high-temperature applications. SS 15-5 PH possesses strength, toughness, and workability, which makes it a great material to use in precision-engineered systems and heavy-duty industrial parts.
