Located in Mumbai, India, Harsh Metalloys is a top producer and supplier of high-grade stainless steel 310H sheets and plates, which are renowned for their exceptional corrosion resistance and high temperature strength. Modern technology and premium raw materials are used in the production of these goods, guaranteeing adherence to global standards. Under extremely high temperatures, SS 310H sheets and plates provide exceptional durability, oxidation resistance, and structural integrity. Good for many industrial uses, Harsh Metalloys provides customers around the world with dependable, high-performing solutions supported by prompt delivery, quality control, and a dedication to going above and beyond for clients.
Compared to 310/310S, stainless steel 310H sheets and plates have a higher carbon content (≥0.04%), 24–26% chromium, and 19–22% nickel, which improves their creep strength and high-temperature performance. Up to 1100°C, these materials show exceptional resistance to oxidation. Mechanical characteristics include a 40% elongation, a yield strength of 205 MPa, and a tensile strength of roughly 515 MPa. SS 310H sheets and plates are appropriate for structural and pressure-containing applications in high-temperature environments because of the alloy’s structure, which guarantees stability under thermal stress and resistance to scaling.
| Specifications | : | ASTM A240 / ASME SA240 |
| Standard | : | ASTM, ASME and API |
| Thickness | : | 4.0mm – 100mm |
| Specialize | : | Shim Sheet, Perforated Sheet, B. Q. Profile. |
| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) |
| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness | : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Grade | : | SS 310H, (UNS S31009) |
| Grade | Fe | Cr | Ni | Mn | Si | C | P | S |
| SS 310H | – | 26.0-24.0 | 21.0-19.0 | 2.00 | 1.00 | 0.10 | – | 0.030 |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | HardnessRockwell B (HR B) max | Hardness Brinell (HB) max |
| 310H | 515 | 205 | 40 | 95 | 217 |
Contact us to get a quick quote for your requirement.
Stainless Steel 310H Hot Rolled Sheets are known for excellent high-temperature corrosion resistance. These are generally available in 2mm to 50mm thickness and widths up to 2000mm and are suitable for structural applications that require strength and durability.
The plates are high in corrosion resistance and the surface finish is even. They come in the thickness range of 0.5mm to 6mm and 1500mm widths. They can be used in applications requiring precise dimensions and higher surface quality.
Stainless Steel 310H Chequered Plates have improved slip and high-temperature corrosion resistance. They are available in 3mm to 12mm in thickness and widths up to 1250mm. The product is excellent for flooring and high-traction applications.

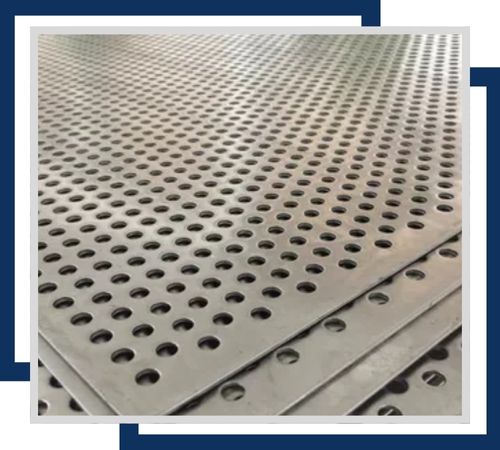

Stainless Steel 310H Perforated Sheets offer high corrosion resistance with customized hole patterns for filtration and ventilation. The sheet sizes are generally available in 0.5mm to 6mm in thickness and up to 2000mm in width. It is used in industrial and architectural applications.
Stainless Steel 310H Shim Sheets are known for their excellent corrosion resistance at high temperatures and are used for spacing and alignment applications. The range of thickness offered is from 0.1mm to 2mm and sizes up to 1000mm x 2000mm, which offers flexibility in application.
The stainless steel 310H polished plates feature high-temperature corrosion resistance with a mirror-like finish. Available in thicknesses from 1mm to 25mm and widths up to 1500mm, these plates are used in decorative and high-visibility applications where aesthetic quality is important.
Industries that need materials that can withstand high temperatures and corrosion frequently use stainless steel 310H sheets and plates. Boiler parts, combustion chambers, heat exchanger baffles, and furnace linings are typical uses in thermal and petrochemical facilities. Additionally, they are utilised in flue gas systems, kiln linings, and incinerators where oxidation resistance is essential. Pressure vessels, reactor parts, and structural fabrications subjected to high temperatures are the perfect applications for SS 310H plates. Their increased strength and creep resistance due to their high carbon content make them indispensable for dependable operation in the chemical processing, oil and gas, and power generation industries.
