Harsh Metalloys, headquartered in Mumbai, India, is a trusted manufacturer and supplier of premium-quality Stainless Steel Electrodes designed for superior welding performance. Our electrodes are formulated to provide excellent arc stability, low spatter, and strong welds across various stainless steel grades. They are suitable for both AC and DC power sources and support various welding processes including SMAW (Shielded Metal Arc Welding). Harsh Metalloys ensures consistent quality, high deposition efficiency, and adherence to international welding standards. We supply stainless steel electrodes to industries such as fabrication, shipbuilding, oil & gas, power generation, and chemical processing across India and globally.
Stainless Steel Electrodes are composed to match specific stainless steel grades, typically containing chromium (16–25%), nickel (8–22%), and elements like molybdenum or titanium for enhanced corrosion resistance and mechanical performance. For example, E308L, E316L, and E347 are common electrode types. These electrodes offer tensile strengths from 70–85 ksi and excellent toughness at both ambient and sub-zero temperatures. They produce welds with high resistance to oxidation, intergranular corrosion, and cracking. Designed for clean, stable arcs and smooth bead finishes, stainless steel electrodes are ideal for critical and aesthetic welding applications.
| Specifications | AWS A5.14 ERNiCr-3, AWS A5.11 ENiCrFe-3 |
| International Specifications | BS 3072-3076 (NA14) DIN 17742, DIN 17750, DIN 17754 WERKSTOFF Nr 1.4301 TÜV 305 AFNOR-NC 15 Fe |
| Size | 2.00 mm Dia., 2.50 mm Dia., 3.15 mm Dia., 4 mm Dia., 5 mm Dia., 6.3 mm Dia. |
| Length | 300 mm to 450 mm |
| Model | Chemical Composition | |||||||||
| C | Mn | Si | S | P | Cr | Ni | Mo | Cu | Nb | |
| AWS E308-16 | 0.08 | 0.5-2.5 | 0.9 | 0.03 | 0.04 | 18.0-21.0 | 9.0-11.0 | 0.75 | 0.75 | — |
| AWS E308L-16 | 0.04 | 0.5-2.5 | 0.9 | 0.03 | 0.04 | 18.0-21.0 | 9.0-11.0 | 0.75 | 0.75 | — |
| AWS E309-16 | 0.15 | 0.5-2.5 | 0.9 | 0.03 | 0.04 | 22.0-25.0 | 12.0-14.0 | 0.75 | 0.75 | — |
| AWS E309L-16 | 0.04 | 0.5-2.5 | 0.9 | 0.03 | 0.04 | 22.0-25.0 | 12.0-14.0 | 0.75 | 0.75 | — |
| AWS E309MoL-16 | 0.04 | 0.5-2.5 | 0.9 | 0.03 | 0.04 | 22.0-25.0 | 12.0-14.0 | 2.0-3.0 | 0.75 | — |
| AWS E310-16 | 0.08-0.20 | 1.0-2.5 | 0.75 | 0.03 | 0.03 | 25.0-28.0 | 20.0-22.5 | 0.75 | 0.75 | — |
| AWS E312-16 | 0.15 | 0.5-2.5 | 0.9 | 0.03 | 0.04 | 28.0-32.0 | 8.0-10.5 | 0.75 | 0.75 | — |
| AWS E316-16 | 0.08 | 0.5-2.5 | 0.9 | 0.03 | 0.04 | 17.0-20.0 | 11.0-14.0 | 2.0-3.0 | 0.75 | — |
| AWS E316L-16 | 0.04 | 0.5-2.5 | 0.9 | 0.03 | 0.04 | 17.0-20.0 | 11.0-14.0 | 2.0-3.1 | 0.75 | — |
| AWS E318-16 | 0.08 | 0.5-2.5 | 0.9 | 0.03 | 0.04 | 17.0-20.0 | 11.0-14.0 | 2.0-3.2 | 0.75 | 6xC-1.00 |
| AWS E347-16 | 0.08 | 0.5-2.5 | 0.9 | 0.03 | 0.04 | 18.0-21.0 | 9.0-11.0 | 0.75 | 0.75 | 8xC-1.00 |
| AWS E410-16 | 0.12 | 1 | 0.9 | 0.03 | 0.04 | 11.0-13.5 | 0.7 | 0.75 | 0.75 | — |
| Model | Machanical Properties of Deposited Metal | |||
| Tensile Strength | Elongation | |||
| (Mpa) | (%) | |||
| AWS E308-16 | >550 | >35 | ||
| AWS E308L-16 | >520 | >35 | ||
| AWS E309-16 | >550 | 25 | ||
| AWS E309L-16 | >550 | >25 | ||
| AWS E309MoL-16 | >540 | >25 | ||
| AWS E310-16 | >550 | >25 | ||
| AWS E312-16 | >660 | >22 | ||
| AWS E316-16 | >520 | >30 | ||
| AWS E316L-16 | >490 | >30 | ||
| AWS E318-16 | >550 | >25 | ||
| AWS E347-16 | >550 | >25 | ||
| AWS E410-16 | >450 | >20 | ||
Contact us to get a quick quote for your requirement.

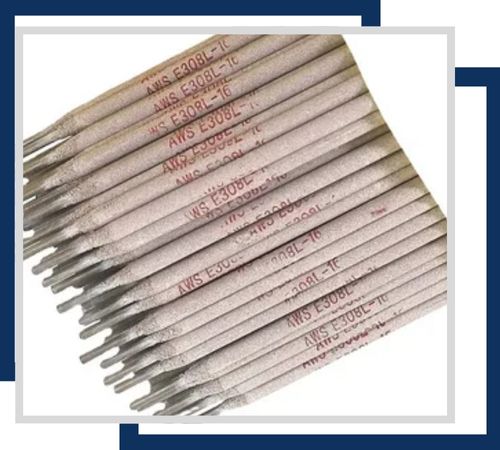

Light coated stainless steel electrodes are designed to provide a smooth arc and minimal spatter, making them perfect for precision welding of thin materials in various fabrication and maintenance tasks.

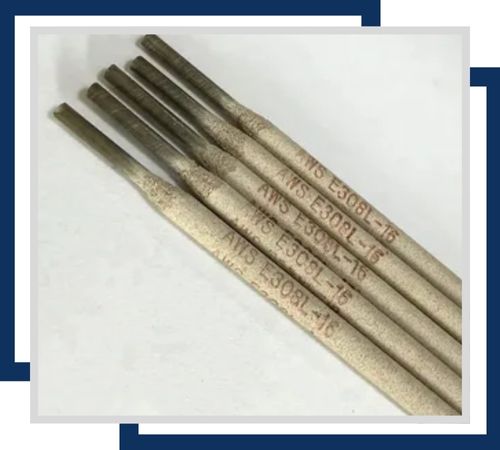

Heavy coated electrodes are all about delivering deeper penetration, robust slag protection, and enhanced weld quality. They’re ideal for working with thick sections and high-strength applications, especially in tough environments.

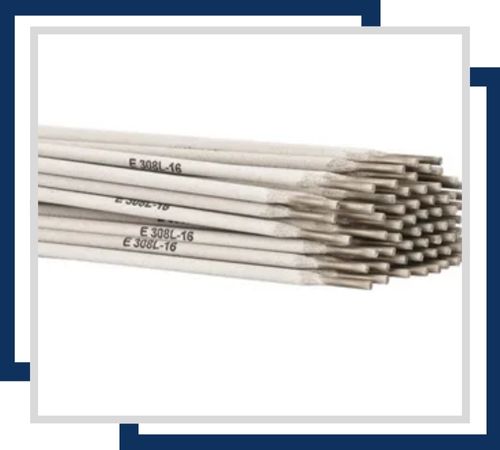

Shielded arc stainless steel electrodes guarantee reliable arc performance and corrosion-resistant welds. They’re commonly used in structural, industrial, and high-temperature stainless steel projects.
Choose stainless steel electrodes based on the base material’s grade, application (corrosion, heat, or strength requirements), and welding position. Ensure compatibility with the operating environment and desired mechanical properties.
Yes, you can order Stainless Steel Electrodes in custom sizes and polishes to meet your specific requirements. For more details, mail us at sales@www.harshmetalloys.com
Stainless steel electrodes typically do not require additional corrosion protection coatings because they inherently resist corrosion due to their chromium content. However, coatings may be applied in extreme environments for added protection.
Yes, stainless steel electrodes can be used in cryogenic applications due to their excellent toughness and strength at low temperatures, along with superior corrosion resistance. They are ideal for welding materials exposed to cryogenic environments.
Stainless Steel Electrodes are used in a wide variety of industries where strong, corrosion-resistant welds are essential. Common applications include welding stainless steel tanks, pipes, vessels, structural components, and machinery in sectors like oil & gas, shipbuilding, chemical processing, food and beverage, and pharmaceuticals. These electrodes are ideal for use in fabricating heat exchangers, reactors, pipelines, marine structures, and architectural components. They ensure clean welds with minimal post-weld cleaning required, making them a preferred choice for critical welding applications involving stainless steels exposed to heat, chemicals, and corrosive environments.
