Harsh Metalloys, Mumbai, India, is a well-known Stainless Steel 410S Sheets and Plates manufacturer and supplier of high-quality materials for mild corrosion conditions and high-temperature service. Our SS 410S products have the martensitic stainless steel strength with better weldability and less hardening, which makes them suitable for industrial heat and oxidation resistance uses. Harsh Metalloys supplies sheets and plates of various thicknesses and sizes, adhering rigidly to global standards. We provide sound and affordable stainless steel solutions to industries like petrochemical, thermal processing, automotive, and construction.
410S Sheets and Plates of Stainless Steel consist of about 11.5–13.5% chromium and low carbon levels (≤ 0.08%), which improve the oxidation resistance and reduce weld cracking risk. Being a low-carbon, non-hardening version of 410 stainless steel, SS 410S is characterized by good ductility, moderate mechanical strength (tensile strength ~390–585 MPa), and superior thermal fatigue resistance. These characteristics result in steel being easier to form, weld, and fabricate relative to conventional 410 grades. Harsh Metalloys provides regular surface finishes and accurate thickness tolerances for demanding industrial purposes.
Standard : ASTM / ASME A240 / SA240
Size : 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm
Thickness : 0.1mm to 12 mm Thk
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
| Element | SS 410S |
| C | 0.08 max |
| Mn | 1 max |
| Si | 1 max |
| P | 0.040 max |
| S | 0.030 max |
| Cr | 11.5 – 13.5 |
| Fe | 85 |
| Element | SS 410S |
| Density | 7.8 g/cm3 |
| Tensile Strength | psi – 64,400, MPa – 444 |
| Yield Strength (0.2%Offset) | psi – 42,000, MPa – 290 |
| Elongation | 33 % |
| Hardness | Rockwell B (HR B)- 75 / Brinell (HB)- 65 |
Contact us to get a quick quote for your requirement.
Stainless Steel 410S hot rolled sheets possess excellent corrosion resistance with high strength and toughness. The sheets come in a wide range of thicknesses, starting from 1.5 mm up to 20 mm with widths up to 2000 mm. These are suitable for high-impact resistant applications.
Stainless Steel 410S Cold Rolled Plates have corrosion resistance along with a smooth, bright surface finish. Usually made available in width up to 1500mm and in different thickness ranges such as 0.5-6 mm these plates are specially suited for use in precision engineering and for critical applications where closer tolerances apply.
Stainless Steel 410S Chequered Sheets have a raised pattern, which gives excellent corrosion and slip resistance. These sheets are available in various thicknesses from 1.2 mm to 6 mm and up to 2000 mm x 1000 mm dimensions, which make them suitable for flooring and decorative applications.

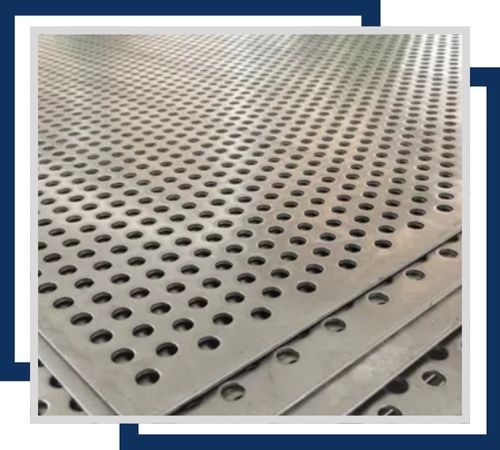

Stainless Steel 410S Perforated Plates combine protection against corrosion with increased ventilation and aesthetics. The perforated plates are available in a number of hole sizes and patterns, available in thicknesses ranging from 1 mm up to 4 mm and available in dimensions up to 2500 mm × 1200 mm for filters and screens.
The Shim Sheets of Stainless Steel 410S are available with corrosion resistance and precise control over thickness. These sheets are available in 0.1 mm thickness up to 1000 mm x 1000 mm, cut to size for fine-tuning mechanical fits.
Stainless Steel 410S polished plates offer outstanding corrosion resistance and have a highly reflective finish. The plates are usually available in sizes up to 2000 mm x 1000 mm with thickness between 1mm and 6mm. Stainless Steel 410S Polished Plates are used in aesthetic applications as well as in decorative purposes.
Harsh Metalloys guarantees a high customer experience by completing all the necessary documentation of high-quality Stainless Steel 410S Sheets and Plates. We will provide our customer with commercial invoices, packing list, fumigation certificate, heat treatment chart, quality assurance plan, and lab test reports certified by NABL-approved labs to prove authenticity and superior quality in our products that can give complete trust and satisfaction to our respected customers. Additionally, our Stainless Steel 410S Sheets and Plates are supplied with test certificates such as MTC as per EN 10204/3.1b, PMI Test Certificate, a 100% radiography test report, and Third Party Inspection Certificate. These certificates reflect our customer-focused approach and our very strong commitment to product excellence.
Stainless Steel 410S Sheets and Plates are extensively utilized in furnace and thermal components, heat exchangers, exhaust systems of vehicles, coal-fired generators, and units for oil refineries. Owing to the exceptional resistance to oxidation and high-temperature stability, these can be applied to systems involving thermal cycling. Their ease of fabrication also makes them in demand in weldments, liners, and ductwork. Harsh Metalloys provides SS 410S plates and sheets that satisfy the requirements of applications that need structural strength, resistance against corrosion, and long-term performance against moderate to severe heat exposure.
