Harsh Metalloys, located in Mumbai, India, has earned a solid reputation as a reliable manufacturer and supplier of top-notch Stainless Steel 301 Sheets and Plates. These materials are celebrated for their impressive strength, resistance to corrosion, and exceptional formability, making them a go-to choice in industries that demand durable and versatile solutions. Compared to 304 grade, Stainless Steel 301 boasts higher tensile strength thanks to its ability to be cold worked. At Harsh Metalloys, we ensure our sheets and plates meet international standards like ASTM and JIS, delivering precision, quality, and timely service to cater to diverse industrial needs both in India and around the world.
When it comes to the composition and mechanical properties of Stainless Steel 301 Sheets and Plates, they generally consist of Chromium (16–18%), Nickel (6–8%), Carbon (≤0.15%), Manganese (≤2%), Silicon (≤1%), Phosphorus (≤0.04%), and Sulfur (≤0.03%). The mechanical properties showcase a tensile strength that ranges from 620 to 860 MPa (depending on the level of cold work), yield strength between 310 to 760 MPa, elongation from 20% to 30%, and hardness that varies with processing. This alloy’s remarkable work hardening rate and outstanding corrosion resistance make it perfect for applications that require a blend of strength and formability.
| Item | Stainless Steel 301 sheet(Hot rolled, cold rolled) | |
| Thickness | 0.3~10.0mm | |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc | |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc | |
| Standard | JIS, AISI, ASTM, GB, DIN, EN, etc | |
| Surface | the surface and finish of stainless steel 301 sheet: 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc | |
| Brand: | Indian Origin, European Origin, Japanese Origin, US Origin, Korea Origin, Thailand Origin, Taiwan Origin | |
| Package | Shrink-wrapped ,Carton boxes,Wooden pallets,Wooden boxes ,Wooden crates Etc. required. |
|
Element |
Percent by Weight |
|
|
Type 301 ANN |
||
|
Carbon |
0.150 maximum |
|
|
Manganese |
2.000 maximum |
|
|
Phosphorus |
0.045 maximum |
|
|
Sulfur |
0.030 maximum |
|
|
Silicon |
1.00 maximum |
|
|
Chromium |
16.00 – 18.00 |
|
|
Nickel |
6.000 – 8.000 |
|
|
Nitrogen |
0.10 maximum |
Contact us to get a quick quote for your requirement.

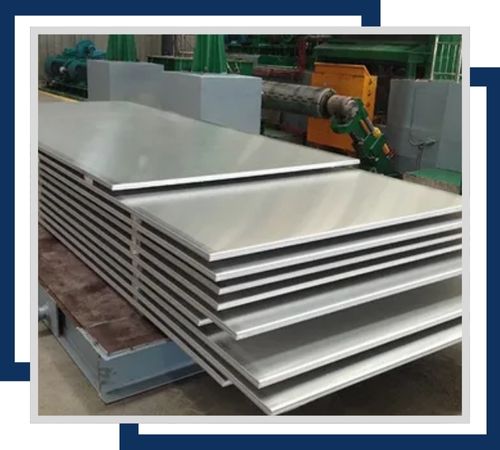

The sheets have moderate corrosion resistance, produced by high temperature rolling. They are typically available from thickness ranging from 3mm to 12mm with widths up to 2000mm and are applicable for structural applications requiring good toughness.

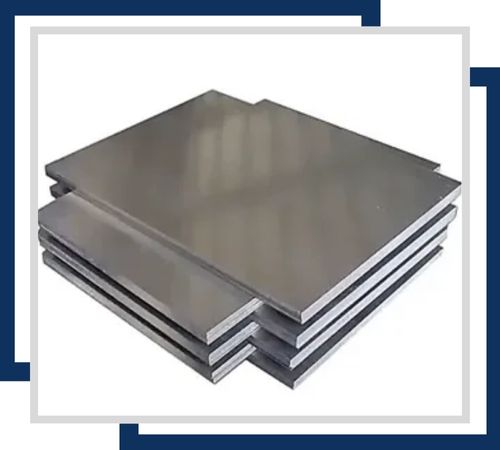

The superior corrosion resistance is provided by cold rolled plates, which are processed at room temperature, thus offering a smooth surface and precise thickness. The common dimensions are from 0.5mm to 6mm in thickness and widths up to 1500mm. They are suitable for high-precision applications.

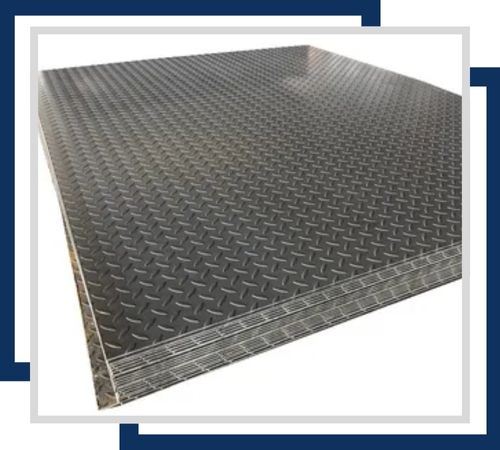

These plates come with a textured surface to have grip and last longer. They come in a thickness range that is between 1.5mm and 5mm and sizes that are standard are 1000mm x 2000mm. It is suitable for flooring and anti-slip application.

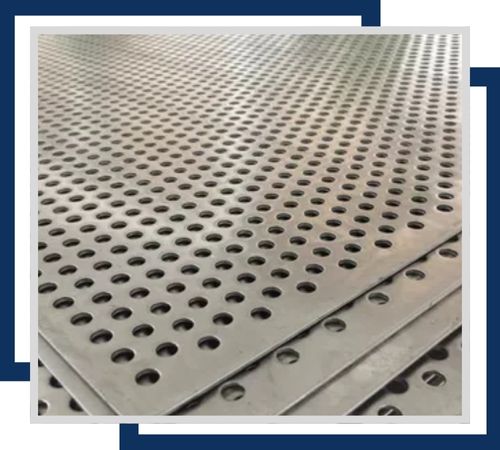

With good corrosion resistance, perforated sheets feature holes punched in various patterns, enhancing aesthetics and ventilation. Sizes usually range from 0.8mm to 3mm in thickness and can be customized up to 1500mm widths and used for filtration and decorative purposes.

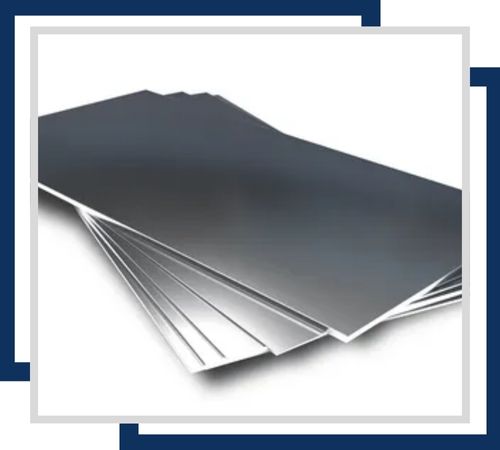

Thin sheets with excellent corrosion resistance, often used to fill gaps or adjust clearances in machinery. These are available from 0.1mm up to 1mm in thickness and in standard sizes of 1000mm x 2000mm. Useful for precision alignment.
Polished plates are excellent for aesthetic applications and offer high corrosion resistance with a high gloss finish. Common thicknesses range from 1mm to 10mm, and sizes typically run to 1500mm x 3000mm. They are also used in architectural and decorative projects.
Stainless Steel 301 Sheets and Plates are widely used across various industries, including automotive parts, kitchen tools, industrial machinery, and architectural designs. Thanks to their impressive strength and formability, they’re perfect for making springs, washers, bolts, and other fasteners. Their resistance to corrosion makes them a go-to choice in the chemical and food processing sectors, while their ability to be cold-worked makes 301 sheets particularly well-suited for deep-drawn parts and structural components. Plus, you’ll find them in aerospace, electrical appliances, and decorative applications where both looks and durability are key.
