Harsh Metalloys is a reputable manufacturer and supplier of top-notch Stainless Steel 316Ti Sheets and Plates based in Mumbai, India. These products are made from titanium-stabilized austenitic stainless steel, which provides superior resistance to intergranular corrosion and high temperatures. SS 316Ti is perfect for applications that face prolonged exposure to harsh conditions. Our 316Ti sheets and plates come in a variety of thicknesses, widths, and surface finishes, all meeting ASTM A240 and other international standards. They are commonly used in industries like chemical processing, marine, pharmaceuticals, food, and heat exchangers due to their durability, weldability, and resistance to corrosion.
When it comes to composition and mechanical properties, Stainless Steel 316Ti Sheets and Plates consist of 16–18% Chromium, 10–14% Nickel, 2–3% Molybdenum, and Titanium (typically five times the carbon content) to ensure structural stability. This blend offers remarkable corrosion resistance in both chloride and acidic environments. The tensile strength usually falls between 515 to 750 MPa, with a yield strength around 205 MPa. SS 316Ti performs admirably at temperatures reaching up to 870°C (1600°F) while maintaining its mechanical integrity. It also boasts good ductility, weldability, and formability, making it an excellent choice for critical applications that demand both strength and corrosion protection.
Specifications : ASTM A240 / ASME SA240
Size : 1/4″ to 4″
Range : 5mm To 150mm
Thickness : 4.0mm – 100mm
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form : Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange)
| Grade | C | Ni | Si | N | S | Mn | P | Cr | Mo | |
| SS 316Ti | min. | – | 10.0 | – | – | – | – | – | 16.0 | 2.00 |
| max. | 0.08 | 14.0 | 0.75 | 0.10 | 0.030 | 2.00 | 0.045 | 18.0 | 3.00 |
| Grade | Tensile Strength (MPa) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (MPa) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| SS 316Ti | 515 | 35 | 205 | 75 | 205 |
Contact us to get a quick quote for your requirement.
316Ti hot rolled sheets and plates are known for their impressive strength and resistance to corrosion, even at high temperatures. They’re perfect for structural, industrial, and pressure vessel applications.
When it comes to 316Ti cold rolled sheets and plates, you get a superior surface finish, tight tolerances, and enhanced corrosion resistance. These are ideal for use in pharmaceutical, food, and precision-engineered components.
The 316Ti chequered sheets and plates provide excellent slip resistance and durability against corrosion. They’re commonly found in flooring, stair treads, and walkways, especially in chemical and marine environments.

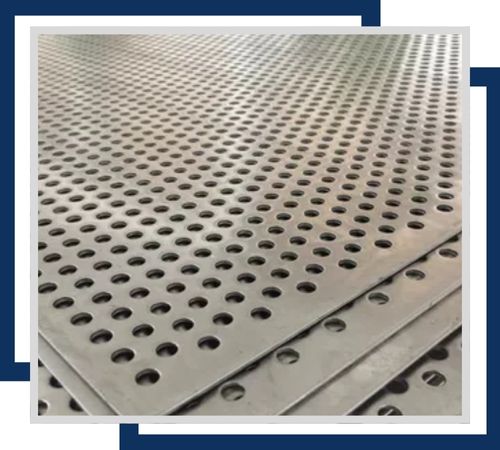

With 316Ti perforated sheets and plates, you can count on strength, airflow, and efficient filtration. They’re great for decorative panels, enclosures, and ventilation systems in corrosive settings.
The 316Ti shim sheets and plates are designed for precise thickness and stability at high temperatures, making them perfect for gasket fabrication, machine adjustments, and applications that require critical tolerances.
Finally, 316Ti polished sheets and plates offer a sleek, aesthetic finish along with excellent corrosion resistance. They’re widely used in architecture, food processing, and hygienic equipment.
Stainless Steel 316Ti Sheet and Plates are used in industries where both corrosion resistance and high-temperature performance are essential. Common applications include pressure vessels, heat exchangers, chemical and petrochemical processing equipment, marine components, food processing units, and pharmaceutical machinery. Their titanium stabilization makes them especially suitable for welded structures, as they resist intergranular corrosion. These plates are also employed in furnace parts, exhaust manifolds, flue gas scrubbers, and other high-temperature environments. Thanks to their durability and resistance to pitting, crevice corrosion, and stress corrosion cracking, SS 316Ti sheets and plates provide long-lasting solutions in harsh industrial conditions.
