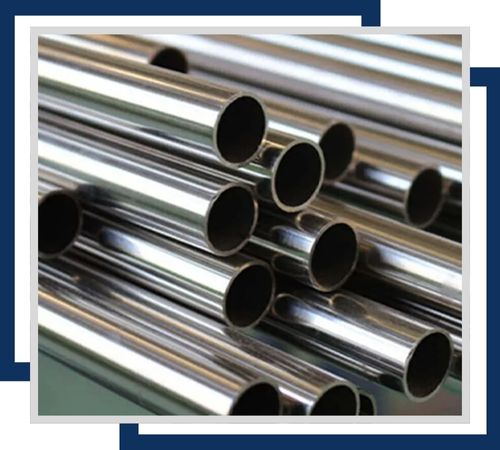

Harsh Metalloys, which is based in Mumbai, India, is a top performer in manufacturing and supplying high-quality stainless steel welded tubing that is best known for precision, hardness, and corrosion resistance. Our welded tubing is produced with the latest welding technology and quality control to assure leak-tight performance and accurate dimensions. Sold in a variety of sizes, grades, and finishes, our products are relied on in many different industries such as automotive, chemical processing, food and beverage, and construction. Harsh Metalloys aims at providing high-performance welded tubing solutions to match international requirements and customer-specific demands for strength, reliability, and long-term performance.
Harsh Metalloys stainless steel welded tubing is essentially composed of grades such as 304, 304L, 316, and 316L, consisting of chromium (18–20%), nickel (8–12%), and molybdenum (2–3% in 316/316L) to improve corrosion resistance. The tubes have impressive mechanical properties with tensile strength varying between 500–700 MPa, high ductility, and good formability. Cost-effectiveness without harming performance is ensured by the welded construction. Every tube is subjected to intense inspection and testing to fulfill industry-specific pressure, strength, and dimensional specifications in order to provide uniform and reliable quality for all applications.
| Range : | 1/8” NB to 36” NB, 1/4” OD to 36” OD |
|---|---|
| Outer Diameter : | 6.35 mm O.D to 114.3 mm O.D |
| Thickness : | 0.8 mm to 12.7 mm |
| Length : | up to 26 Meters |
| Specifications : | ASTM A312 / ASTM SA312 |
| Types : | As Welded, EFW, ERW |
| End : | Plain End, Beveled End |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 304 | min. max. | – 0.08 | – 2.0 | – 0.75 | – 0.045 | – 0.030 | 18.0 20.0 | – | 8.0 10.5 | – 0.10 |
| 304L | min. max. | – 0.030 | – 2.0 | – 0.75 | – 0.045 | – 0.030 | 18.0 20.0 | – | 8.0 12.0 | – 0.10 |
| 304H | min. max. | 0.04 0.10 | – 2.0 | – 0.75 | -0.045 | – 0.030 | 18.0 20.0 | – | 8.0 10.5 | – |
| Element | SS 304 |
|---|---|
| Density | 8.0 g/cm3 |
| Melting Point | 1400 °C (2550 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35 % |
| Elongation | 35 % |
Contact us to get a quick quote for your requirement.
Looking for top-notch welded tubing that stands out for its impressive corrosion resistance? It’s perfect for a range of uses, whether you’re into structural projects, decorative designs, or fluid transport across different industries.

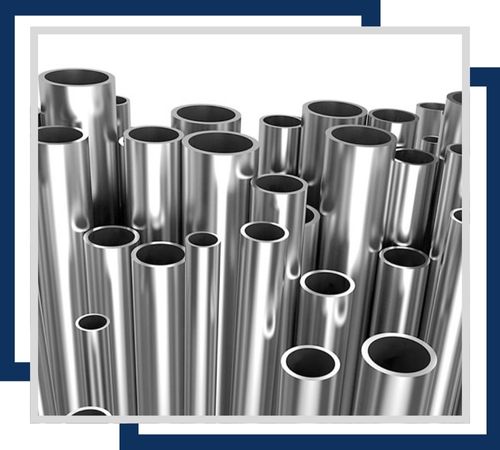

Then there’s electric resistance welded tubing, which is all about uniformity, strength, and precision. It’s a go-to choice for mechanical, automotive, and structural applications.

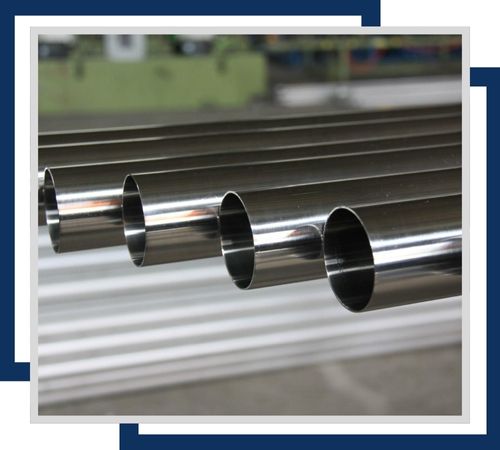

If you’re dealing with high-strength and high-temperature environments, electric fusion welded tubing is your best bet. It’s tailor-made for process piping and heat exchanger systems.

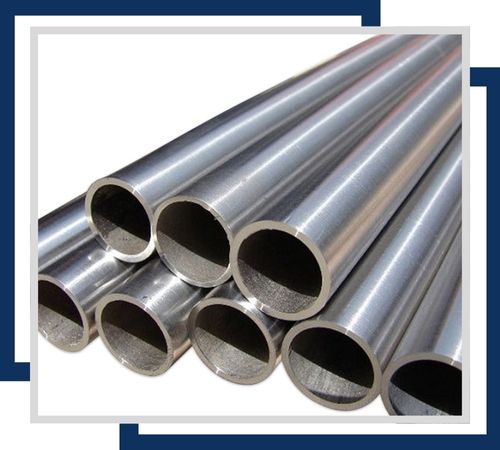

High-frequency welded tubing is another great option, known for its clean weld seams and consistent dimensions. You’ll find it widely used in the automotive, HVAC, and construction sectors.

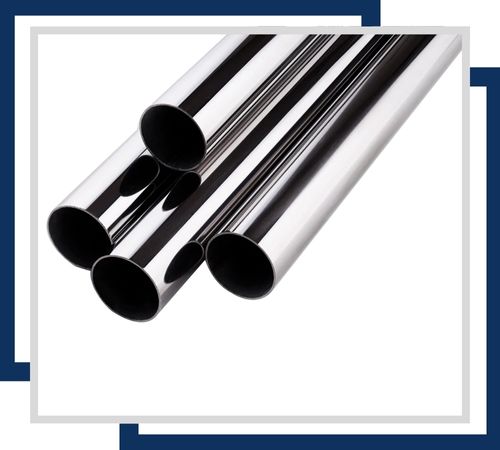

For those in need of precision, butt welded tubing offers smooth internal surfaces, making it ideal for sanitary, pharmaceutical, and food processing systems that require clean, leak-free connections.
And let’s not forget about laser welded tubing, which guarantees minimal distortion and precise seams. It’s perfect for applications that demand tight tolerances and a superior aesthetic finish.
Stainless steel welded tubing is widely utilized in industries that demand anti-corrosive, heavy-duty fluid conveyance systems. Typical uses involve heat exchangers, condensers, instrumentation lines, food processing equipment, dairy and beverage plants, architectural railings, and chemical conveyance systems. Its resistance to pressure, oxidation, and fluctuating temperatures makes it suitable for indoor and outdoor application. Welded tubing is similarly used extensively in sanitary and hygienic piping applications because of its smooth internal finish and easy cleaning. Harsh Metalloys provides customized tubing solutions that suit precise application requirements with timely delivery and rigorous quality assurance.
