Harsh Metalloys, a reputable manufacturer and supplier based in Mumbai, India, specializes in high-quality Stainless Steel 317 Tubing, renowned for its outstanding corrosion resistance and mechanical strength. SS 317 is a molybdenum-bearing austenitic stainless steel designed to withstand chemical attacks, especially in acidic and chloride-heavy environments. Our tubing comes in both seamless and welded options, adhering to ASTM A269, A213, and A249 standards. It’s commonly utilized in sectors like chemical processing, pharmaceuticals, pulp & paper, and marine applications. SS 317 tubing excels in high-temperature, corrosive, and high-pressure conditions.
Stainless Steel 317 Tubing is composed of 18–20% Chromium, 11–15% Nickel, and 3–4% Molybdenum, with a low carbon content that boosts its corrosion resistance. These tubes deliver tensile strength ranging from 515–750 MPa and a yield strength of about 205 MPa. The inclusion of molybdenum enhances resistance to pitting, crevice corrosion, and overall chemical degradation. SS 317 retains impressive mechanical properties up to 870°C (1600°F) and is non-magnetic when annealed. It also offers good weldability and formability, making it perfect for applications that demand high resistance to both oxidizing and reducing environments.
| ASTM A213 / ASME SA 213 | Standard Specification for SS TP 317L Seamless Superheater, Condenser, Hydraulic, Boiler and Heat-Exchanger Tubes |
| Shapes | ASME SA213 TP317L Round, Rectangular, Square, Hydraulic, Straight, “U” Shape, Coiled, Honed Tubes, Pan Cake Coils |
| Manufacturing Type | Seamless / ERW / Welded / Fabricated / CDW / CDS / DOM / CEW / 100% X Ray Welded |
| Delivery Condition | Annealed and Pickled (AP), Polished, Bright Annealed (BA), Cold Drawn, MF |
| Surface Finish | BA, 2B, No.4, No.1, No.3, No.8, 8K, HL, 2D, 1D, Mirror Polished, 180G, 320G, 400G Satin/ Hairline, 400G, 500G, 600G or 800G Mirror finish DIN 1.4438 Stainless Steel 317L Tubing or Custom Finish as per customer’s specification |
| Thickness Range | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXH, SCH XXS, SCH XS |
| Standard | SUS, JIS, AISI, ASTM, GB, DIN, EN |
| Relevant Standard | ASTM A213, ASTM A312, ASTM A269, ASTM A778, ASTM A554, ASTM A249, ASTM A269, ASTM A270, ASTM A789, DIN 17456, DIN17457, DIN 17459, JIS G3459, JIS G3463, GOST9941, EN10216, BS3605, GB13296 |
| SS 317L | Maximum |
|---|---|
| Ni | 11 – 15 |
| C | 0.035 Maximum |
| Mn | 2 Maximum |
| P | 0.040 Maximum |
| S | 0.03 Maximum |
| Si | 1 Maximum |
| Cr | 18 – 20 |
| Mo | 3 – 4 |
| N | – |
| Element | AISI 317L |
|---|---|
| Density | 8.0 g/cm3 |
| Melting Range | 1454 °C (2650 °F) |
| Tensile Stress | Psi – 75000 , MPa – 515 |
| Yield Stress (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35 % |
| Hardness (Brinell) |
Contact us to get a quick quote for your requirement.
We offers rigorous testing and certification of stainless steel 317 tubing to ensure quality and reliability. Each batch undergoes extensive testing, including chemical composition analysis, mechanical property testing and dimensional verification. Certificates of Compliance (CoC), Mill Test Reports (MTR), and other quality documents have been provided to also ensure transparency.

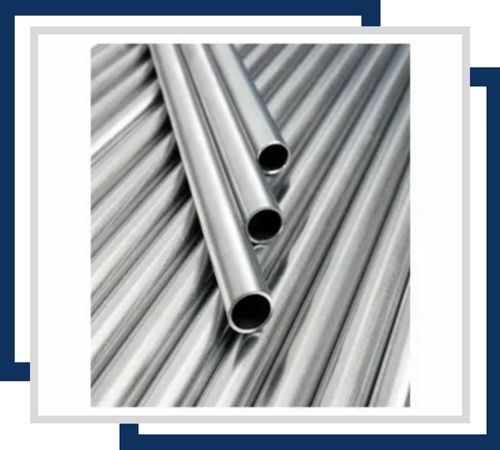

The 317 seamless tubing is known for its impressive resistance to corrosion and pitting, making it a top choice for transporting aggressive chemicals in pharmaceutical, food processing, and marine settings, especially under high pressure.

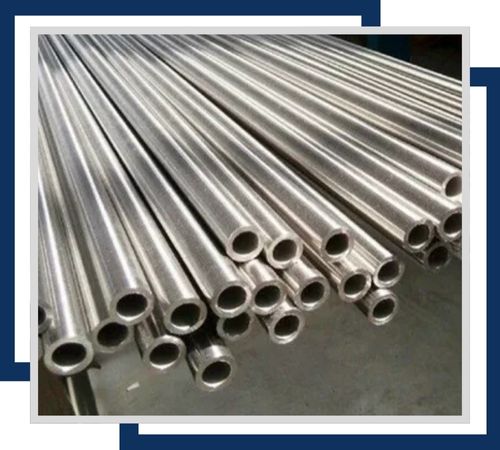

With its excellent strength and corrosion resistance, 317 welded tubing is perfect for heat exchanger systems, fluid transport, and various industrial applications that face corrosive conditions.

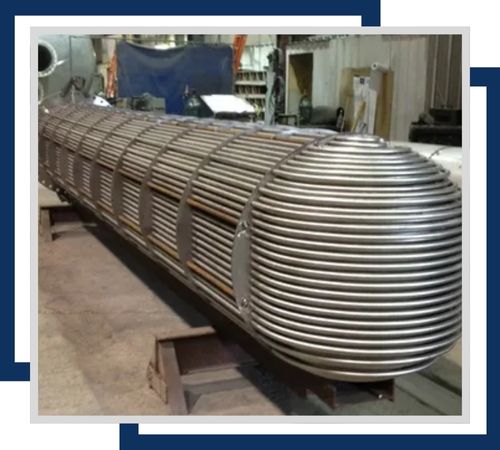

The 317 heat exchanger tubes are designed to withstand acidic and chloride environments, ensuring efficient heat transfer in chemical, petrochemical, and marine systems.

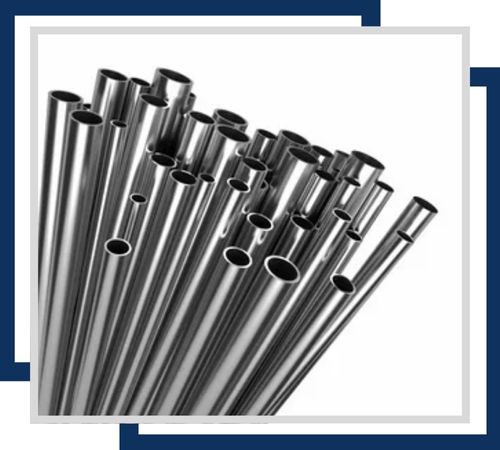

For precise flow control and corrosion resistance, 317 instrumentation tubing is ideal for instrumentation lines found in offshore platforms, chemical plants, and high-purity processing systems.

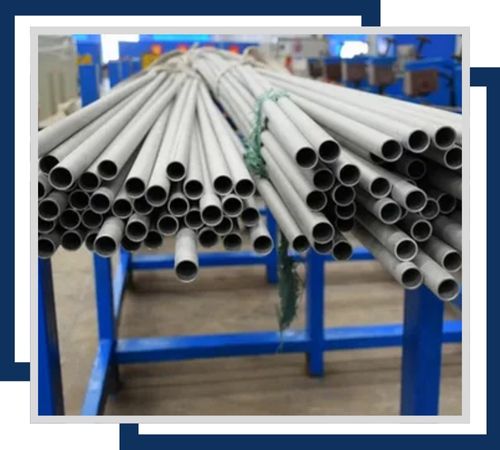

These 317 boiler tubes are built to resist high temperatures and corrosive flue gases, making them a great fit for steam generators, waste heat recovery systems, and thermal fluid heaters.

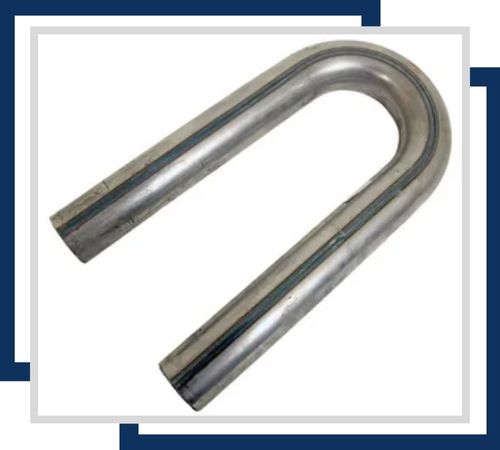

Used in compact heat exchangers, 317 U-tubes provide corrosion resistance and thermal stability, even in tight, high-temperature industrial and marine environments.

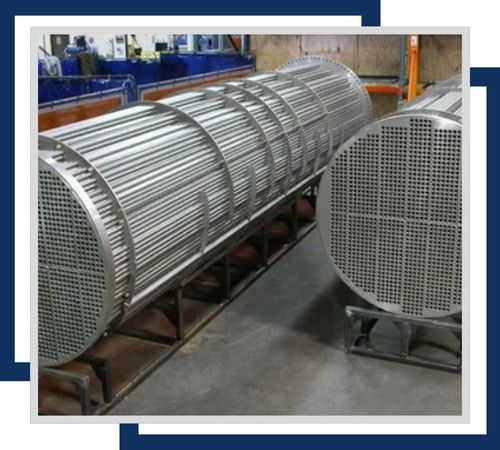

The 317 condenser tubes excel in resisting corrosion and scaling, making them perfect for cooling systems in power plants, refineries, and chemical processing equipment.

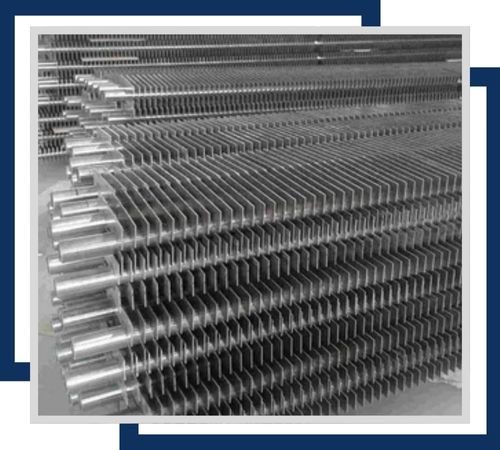

Designed to enhance heat transfer while resisting corrosive degradation, 317 fin tubes are ideal for air coolers, heat recovery units, and industrial heating systems.
Stainless Steel 317 Tubing is widely utilized in highly corrosive environments such as chemical and petrochemical plants, pulp and paper industries, and marine environments. Its superior resistance to acidic compounds makes it ideal for use in heat exchangers, evaporators, condensers, and pharmaceutical processing equipment. SS 317 tubing is particularly effective in chloride-rich environments where pitting and crevice corrosion are a concern. It is also suitable for food processing and flue gas scrubbers where both hygiene and durability are critical. With excellent performance under high temperature and pressure, SS 317 tubing ensures long-term reliability and efficiency in demanding conditions.
