Harsh Metalloys, Mumbai, India, is a reliable manufacturer and supplier of Stainless Steel 420 Pipes, which are highly regarded for their hardness, strength, and resistance to wear. Produced from high-carbon martensitic stainless steel, our SS 420 pipes are expertly designed to excel in harsh conditions. Our SS 420 pipes are best suited for where applications need strong mechanical properties and average corrosion resistance. Offered in different sizes and thicknesses, Harsh Metalloys supplies 420 stainless steel pipes as per international quality standards for oil & gas, chemical processing, automotive, and engineering industries.
Stainless Steel 420 Pipes contain mostly 12–14% chromium and up to 0.15% carbon and thus are martensitic stainless steel with good hardenability. Through heat treatment, these pipes can achieve a tensile strength of 700 MPa and a Rockwell hardness of 50–55 HRC. Although they are moderately corrosion resistant, they are greatly sought after for their strength and abrasion and wear-resistance. SS 420 pipes also have good machinability and fair weldability, which makes them ideal for structural and pressure-bearing applications. Harsh Metalloys provides even wall thickness, precision finishes, and strong performance.
| Item | Stainless Steel 420 Pipe |
| Standard | GB, AISI, ASTM, ASME, EN, BS, DIN, JIS |
| Type | Seamless / ERW / Welded / Fabricated / CDW |
| Outer Diameter Size | SEAMLESS – 1/2″ NB TO 18″ NB WELDED / ERW- 1″ NB TO 16″ NB EFW – 8″ NB TO 110″ NB |
| Form | Round Pipes, Square Pipes, Rectangular Pipe, “U” Shape Pipes, Hydraulic Pipes |
| Wall Thickness | Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness) |
| Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size End: Plain End, Beveled End, Treaded |
| Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered, Cold Draw |
| Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| Testing | Product Analysis, Transverse Tension Test, Flattening Test, Etching Test, Radiographic Examination, Stabilizing Heat Treatment, Intergranular Corrosion Test, Weld Decay Test, Magnetic Particle Detection, Grain Size Test, NACE 0175, Dual Grade, PWHT (POST WELD HEAT TREATMENT), Flare Test, Bend Test, Hardness Test, Tensile Test etc |
| Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
| Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| Fe | C | Mn | Si | Cr | Ni* | Mo* | P | S | Cu* | Al* | Sn* |
|---|---|---|---|---|---|---|---|---|---|---|---|
Balance | 0.15-0.40% | 1.00% max | 1.00% max | 12.00-14% | 0.50% max | 0.50% max | 0.04% max | 0.03% max | 0.50% max | 0.15% max | 0.05% max |
| Property | Metric |
|---|---|
Density | 7.74 g/cm3 |
Elastic Modulus | 200 GPa |
Electrical Resistivity | 0.55 x 10-7 .m |
Tensile Strength | 655 MPa |
Yield strength (Temper: Annealed) Minimum 0.2% offset | 40,000 psi |
Yield Strength (Temper: Hardened + 350°F) Typical 2% offset | 195,000 psi |
Elongation (% in 50 mm) | 25 |
Brinell Hardness (HB) | 241 max |
Contact us to get a quick quote for your requirement.
We ensures the highest quality of stainless steel 420 pipes through rigorous testing procedures, including chemical composition analysis, mechanical property testing and surface quality testing Every pipe is certified with industry standards, assuring durability, strength and corrosion resistance to a variety of industrial applications

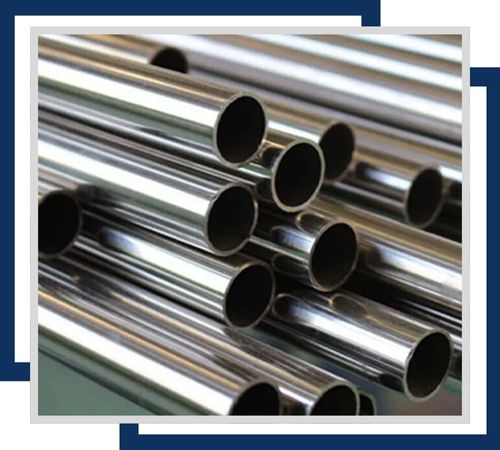

Stainless Steel 420 ERW (Electric Resistance Welded) pipes are welded from stainless steel strips, offering high hardness and wear resistance, ideal for cutlery, surgical instruments, and high-strength applications.

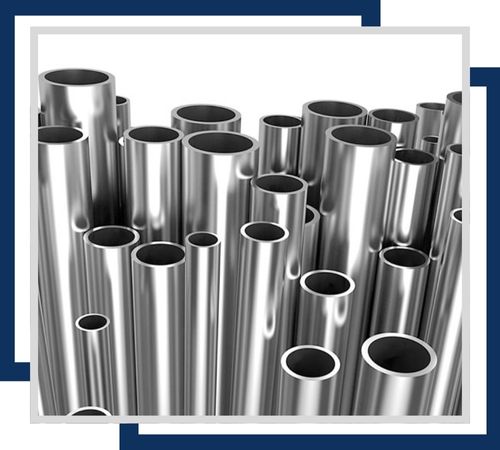

Stainless Steel 420 EFW (Electric Fusion Welded) pipes are made by fusing stainless steel plates, providing high-strength, wear-resistant pipes suitable for industrial tools and components requiring durability and hardness.

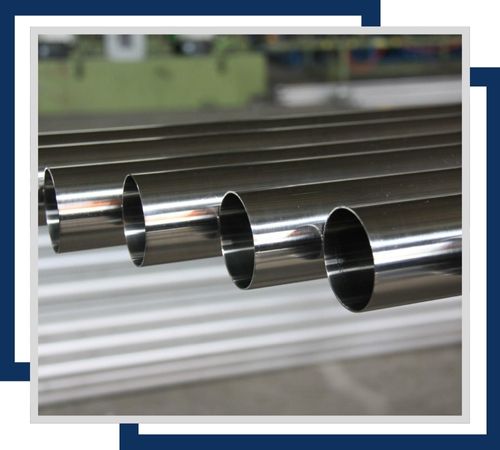

Stainless Steel 420 LSAW (Longitudinally Submerged Arc Welded) pipes are produced using submerged arc welding, offering strength and hardness for large-diameter applications, including industrial and high-stress environments.

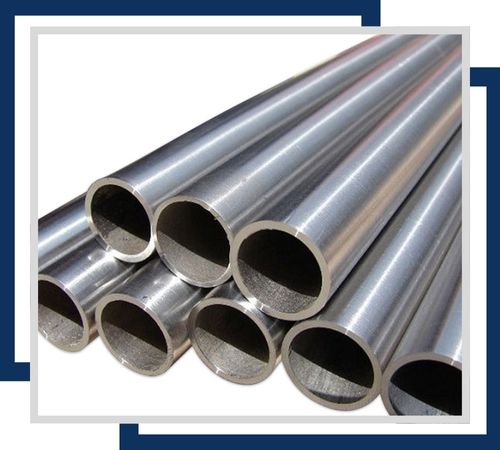

Stainless Steel 420 Seamless pipes are manufactured without welding, providing uniform strength and high hardness, ideal for cutlery, surgical tools, and applications requiring excellent wear resistance and durability.

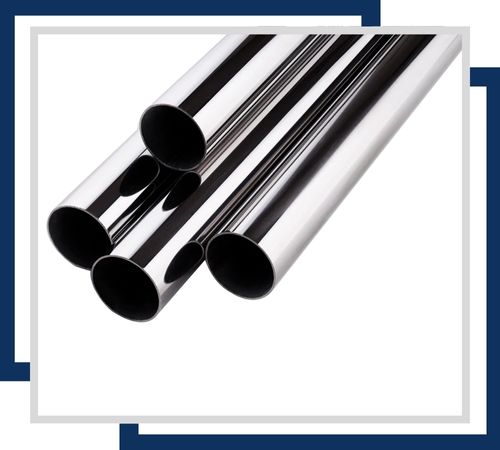

Stainless Steel 420 Welded pipes are made by welding stainless steel sections, offering high hardness and wear resistance, suitable for industrial applications, cutlery, and tools requiring enhanced durability.

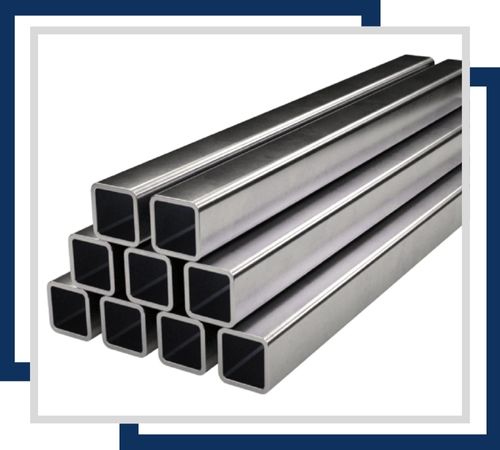

Stainless Steel 420 Square pipes feature a square cross-section, providing structural support and high hardness, ideal for use in applications requiring durability, wear resistance, and a unique design.
Stainless Steel 420 Pipes are extensively applied in applications demanding a combination of mechanical properties and wear resistance, such as hydraulic lines, pump shafts, chemical processing gear, and steam lines. They are also used in food processing, paper, and textile machinery where durability and moderate corrosion resistance are necessary. They are especially well-suited for high-stress environments with an emphasis on hardness and strength. Harsh Metalloys provides customized SS 420 pipes according to customer requirements, providing consistent performance, long life of service, and economic solutions for industrial as well as commercial applications.
