Harsh Metalloys stands out as a top manufacturer and supplier of Stainless Steel 17-7 PH Pipes, with its base in Mumbai, India. Crafted from a robust, precipitation-hardening stainless steel alloy (UNS S17700), these pipes boast an impressive mix of high tensile strength, good formability, and resistance to corrosion. They’re perfect for situations where a strong yet lightweight material is crucial, along with fatigue resistance and dimensional stability. Harsh Metalloys offers these pipes in a variety of sizes and finishes, including seamless and welded options, designed to meet the needs of demanding sectors like aerospace, chemical processing, marine, and automotive engineering.
Stainless Steel 17-7 PH Pipes are mainly made up of 17% chromium, 7% nickel, and trace amounts of aluminum, which allows for effective precipitation hardening. This alloy achieves a tensile strength of up to 1380 MPa and a yield strength of at least 1170 MPa, along with impressive hardness and fatigue resistance, particularly when heat-treated (CH900, RH950, or TH1050). It maintains its strength and stability even at high temperatures and during cyclic loading. Its corrosion resistance is comparable to that of 304 stainless steel, but with improved mechanical properties, making it an excellent choice for structural and dynamic-load applications in mildly corrosive environments.
| Standard | 17-7PH / 1.4568 |
|---|---|
| Size | 1/8” to 48”, Seamless Pipes up to 24” |
| Designation | ASTM A312, ASME SA312, ASTM A269, ASTM A213, ASTM A249, ASTM A270, ASTM A511, ASTM A554, ASTM A778, ASTM A908, ASME SA249 |
| Thickness | 0.4mm up to 30.00 mm, Schedules 5, 10S, 10, 30, 40S, 40, 80, 80S, XS, 160, XXH |
| Type | Seamless, Welded, Cold Drawn, Structural, Hot Finished, Extruded, Annealed & Pickled |
| Form | Round, Square, Rectangular |
| Length | Standard 6-6.1 meter length, 20 Ft, Custom Cut Lengths |
| Application | Variety of springs and washers, Chemical processing equipment, Heat exchangers, Power boilers, Superheater tubes, Components used in high-strength/high-temperature conditions. |
| Element | Content (%) |
|---|---|
| Chromium, Cr | 16-18 |
| Nickel, Ni | 6.50 – 7.75 |
| Manganese, Mn | 1 max |
| Silicon, Si | 1 max |
| Aluminum, Al | 0.75 – 1.50 |
| Carbon, C | 0.09 max |
| Phosphorous, P | 0.040 max |
| Sulfur, S | 0.030 max |
| Iron, Fe | Balance |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 1170 MPa | 170000 psi |
| Yield strength | 965 MPa | 140000 psi |
| Modulus of elasticity | 204 GPa | 29600 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation at break | 6% | 6% |
| Hardness, Rockwell C | 38 | 38 |
Contact us to get a quick quote for your requirement.
We tests Stainless Steel 17-7 PH pipes to the utmost extent to assure superior quality and performance. All batches are strictly inspected, and mechanical property tests, corrosion resistance checks, and dimensional accuracy checks are performed on each batch. Pipes are supplied with test certificates that are in compliance with industrial standards.

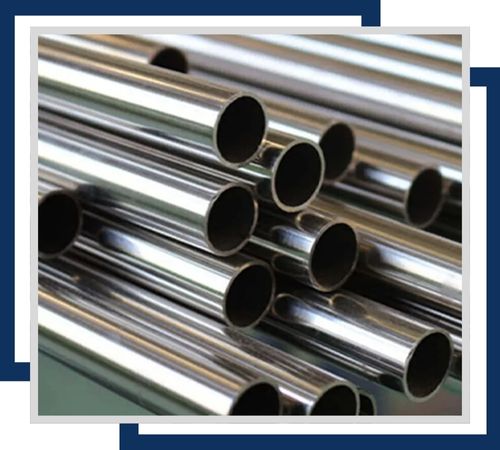

High-quality 17-7 PH stainless steel pipes offer exceptional strength, corrosion resistance, and durability. Perfect for demanding industrial applications, they provide reliable performance in extreme conditions and harsh environments.

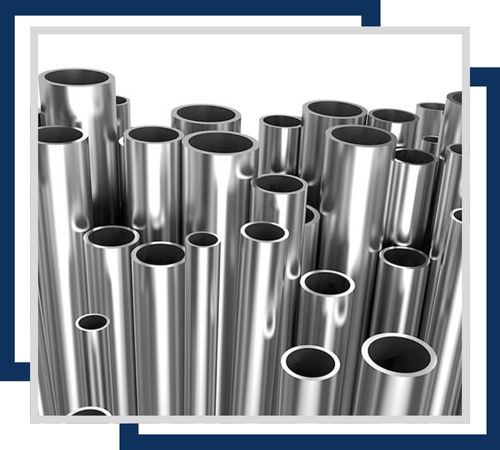

ASTM A312 SS 17-7 PH ERW pipes deliver outstanding strength and corrosion resistance. Ideal for high-stress applications, they ensure durability and reliable performance in challenging industrial environments and applications.

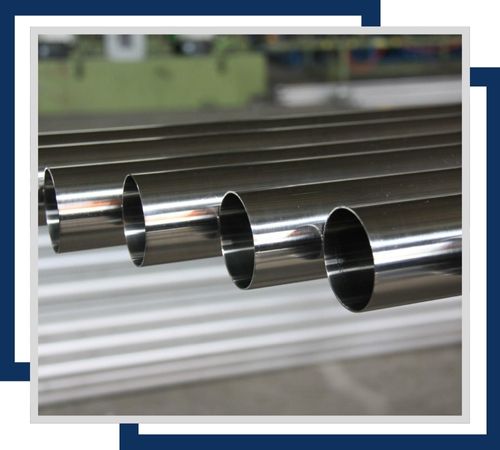

Stainless Steel 17-7 PH capillary pipes offer superior strength and corrosion resistance. Ideal for precision applications, they ensure reliability and durability in demanding environments, combining high performance with long-lasting quality.

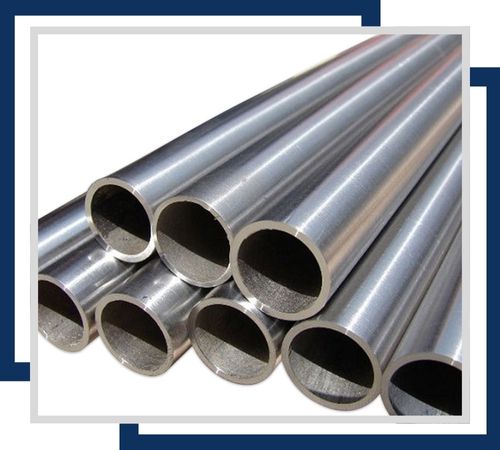

SS 17-7 PH spiral welded pipes offer high strength and corrosion resistance, ideal for aerospace and industrial applications. Their spiral weld construction enhances durability and performance in demanding environments.

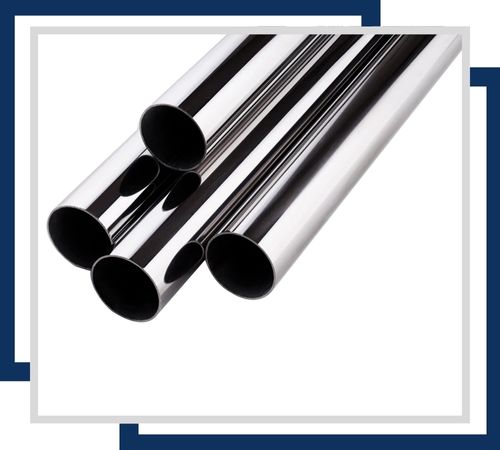

17-7 PH SS electropolished pipes offer superior corrosion resistance and a smooth finish. Ideal for sanitary and high-performance applications, they provide enhanced durability and reliability in demanding environments.

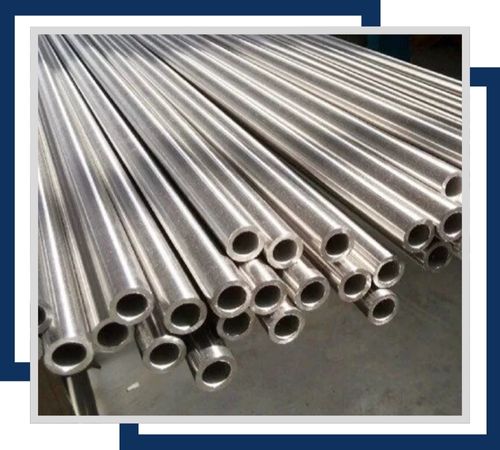

SS 17-7 PH slot round pipes feature exceptional strength and corrosion resistance with precision slots. Ideal for structural and filtration applications, they ensure durability and high performance in demanding conditions.
Stainless Steel 17-7 PH Pipes are a go-to choice in various industries, especially aerospace, pressure vessels, chemical processing, nuclear reactors, and marine applications. They shine in situations where high strength, formability, and decent corrosion resistance are essential. These pipes are also perfect for making springs, bellows, actuators, heat exchangers, and parts for fuel systems, particularly in sectors that prioritize durability and resistance to fatigue. Their remarkable ability to retain strength during thermal cycling makes them a top pick for high-performance mechanical assemblies and precision instruments. Plus, 17-7 PH Pipes meet standards like ASTM A312, ASTM A564, and AMS 5568, guaranteeing reliable performance in both structural and corrosive settings.
