Reputable Mumbai, India-based manufacturer and supplier Harsh Metalloys provides premium stainless steel 309H pipes made to withstand high temperatures and corrosive conditions. International standards for strength, durability, and corrosion resistance are met by these pipes, which are precisely fabricated from premium materials. Applications needing prolonged exposure to high temperatures and demanding industrial conditions are best suited for SS 309H pipes. Serving the power generation, petrochemical, refinery, and heat treatment industries in India and abroad, Harsh Metalloys is renowned for its dedication to quality, prompt delivery, and customer satisfaction.
Stainless steel 309H pipes have a higher carbon content (0.04–0.10%) than 309S, which improves their high-temperature strength. They are mainly made of 22–24% chromium and 12–15% nickel. At temperatures as high as 1100°C, these pipes provide exceptional resistance to oxidation and corrosion. Their mechanical characteristics include an approximate elongation of 40%, a yield strength of 205 MPa, and a tensile strength of 550 MPa. Because of their improved creep resistance due to their higher carbon content, SS 309H pipes can withstand extended use in hot conditions without compromising their structural soundness or functionality.
| Thickness | 0.5mm-100mm | ||||||
| Outer diameter | 10mm, 25.4mm, 38.1mm, 50.8mm, 100mm, 250mm, 300mm, 350mm, etc | ||||||
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc | ||||||
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc | ||||||
| Finish | Hot rolled (HR), Cold rolled Tube (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) | ||||||
| Form | Round tube Square tube Rectangular tube etc. | ||||||
Grade | Ni | Mn | P | C | S | Si | Cr | Mo | N | |
309H | min. | 8.0 | – | – | – | – | – | 18.0 | – | – |
max. | 10.5 | 2.0 | 0.045 | 0.08 | 0.030 | 0.75 | 20.0 | |||
Grade | Tensile Strength (MPa) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (MPa) min | Hardness | |
Rockwell B (HR B) max | Brinell (HB) max | ||||
309H | 515 | 40 | 205 | 92 | 201 |
Contact us to get a quick quote for your requirement.
high-quality Stainless Steel 309H Pipes We tested to make sure durability and strength. Their pipes undergo high-quality tests; mechanical analysis is done and chemicals are checked and tested in full compliance with industries. The respective certificates of conformity are issued against every product for full compliance with reliability criteria for its quality and performance.
Stainless 309H Square Pipes are square-shaped pipes made from 309H stainless steel, offering high-temperature resistance, durability, and corrosion resistance, ideal for structural and high-heat applications.

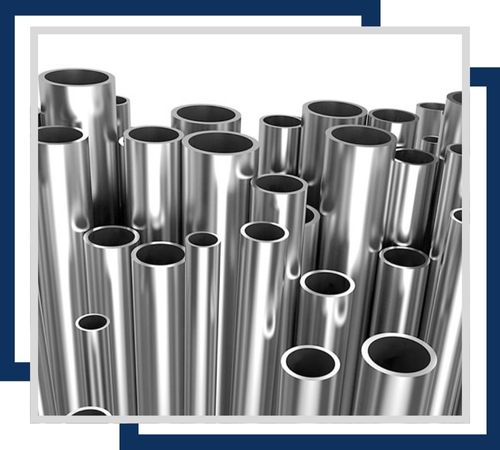

SS 309H Seamless Pipes are pipes made from 309H stainless steel without welded seams, providing superior strength, high-temperature resistance, and excellent durability for demanding industrial and high-heat applications.
Stainless Steel 309H ERW Pipes are electric resistance welded pipes made from 309H stainless steel, known for high-temperature resistance and durability, used in various industrial and heat-intensive applications.

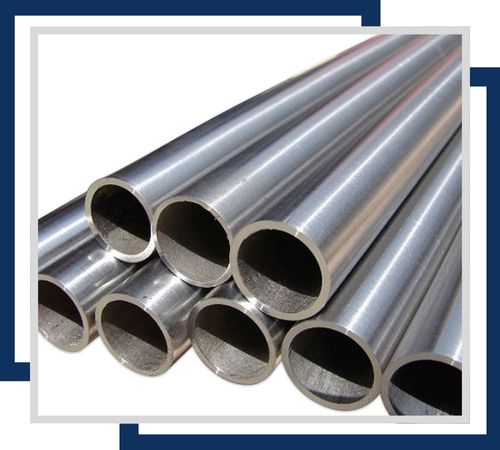

SS 309H LSAW Pipes are longitudinally submerged arc welded pipes made from 309H stainless steel, offering high heat resistance and strength, suitable for high-pressure and high-temperature industrial applications.

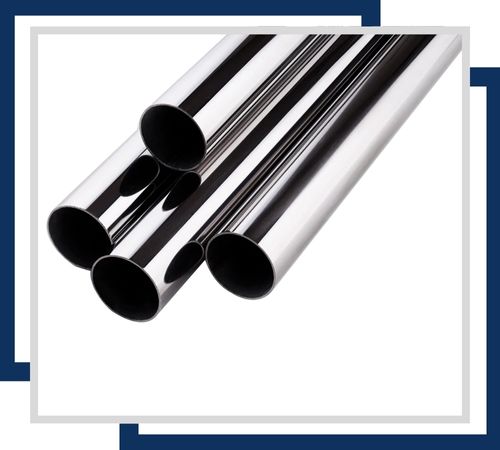

Stainless Steel 309H Round Pipes are cylindrical pipes made from 309H stainless steel, providing excellent heat resistance, durability, and corrosion resistance, ideal for high-temperature and industrial applications.

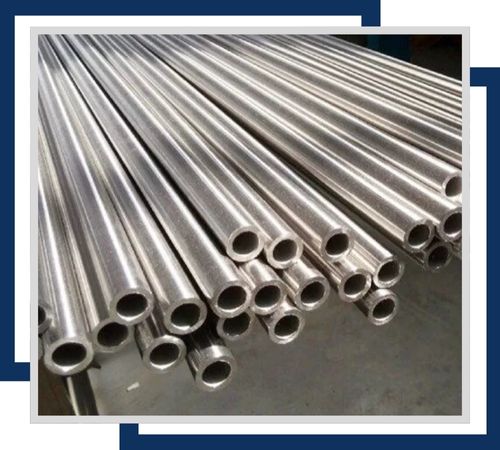

Stainless Steel 309H Welded Pipes are made from 309H stainless steel, joined by welding. They offer high-temperature resistance, durability, and strength, suitable for various industrial and high-heat applications.
Applications involving constant exposure to high temperatures and corrosive media make extensive use of stainless steel 309H pipes. They are perfect for use in boilers, heat exchangers, superheaters, and furnace components in sectors like petrochemical, power generation, and thermal processing. Flue gas cleaning facilities and high-temperature steam systems can also use these pipes. In structural and fluid-handling systems where temperature stability and mechanical strength are crucial, SS 309H Pipes are trusted for dependable performance because of their exceptional resistance to oxidation, thermal fatigue, and creep deformation.
