Harsh Metalloys, based in Mumbai, India, has built a solid reputation as a reliable manufacturer and supplier of top-notch Stainless Steel 301 Pipes. Known for their impressive strength, resistance to corrosion, and excellent formability, 301 pipes are often the go-to choice for projects that demand superior mechanical properties and good weldability. Produced in line with international standards like ASTM and ASME, these pipes cater to a variety of industries, including automotive, construction, chemical processing, and aerospace. Harsh Metalloys is committed to rigorous quality checks and prompt delivery, offering stainless steel 301 pipes in a range of sizes and finishes to meet the diverse needs of various sectors.
When it comes to the composition and mechanical properties of Stainless Steel 301 Pipes, they generally consist of Chromium (16–18%), Nickel (6–8%), Carbon (≤0.15%), Manganese (≤2%), Silicon (≤1%), Phosphorus (≤0.04%), and Sulfur (≤0.03%). Their mechanical characteristics feature tensile strength that varies from 620 to 860 MPa, depending on the degree of cold working, yield strength ranging from 310 to 760 MPa, elongation between 20–30%, and hardness that can change based on processing. The high work hardening rate boosts strength while maintaining corrosion resistance, making these pipes ideal for structural, automotive, and industrial applications that require both durability and flexibility.
| Thickness | 0.3mm – 100mm |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |
| Type of Material | Stainless Steel Soft, Deep Draw, Extra Deep Draw, Quarter Hard, Half Hard, Full Hard. |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), NO.1, 2B, 2D, 2H, 2R, No.4, HAIRLINE, SCOTCH BRITE, SATIN FINISH, NO.8, BA. |
| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Sheets & Plates, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| GRADE | SS 301 |
| Carbon | 0.150max |
| Chromium | 16.00-18.00 |
| Manganese | 2.00max |
| Silicon | 1.00max |
| Phosphorous | 0.045max |
| Sulphur | 0.030max |
| Nickel | 6.00-8.00 |
| Nitrogen | 0.1 |
| Grade/Temper | Tensile Strength ksi (min.) | Yield Strength 0.2%ksi (min.) | Elongation -% in 50 mm (min.) |
| 301 1/4 | 125 | 75 | 25 |
| 301 1/2 | 150 | 110 | 18 |
| 301 Full Hard | 185 | 140 | 9 |
Contact us to get a quick quote for your requirement.
As high-quality pipes tested for durability and performance, We offers Stainless Steel 301 Pipes. Every pipe undergoes all the mechanical and chemical tests to ensure strict adherence to international standards. Certifications ensure that these pipes’ strength, corrosion resistance, and reliability make them ideal for any application requiring material performance in industries.

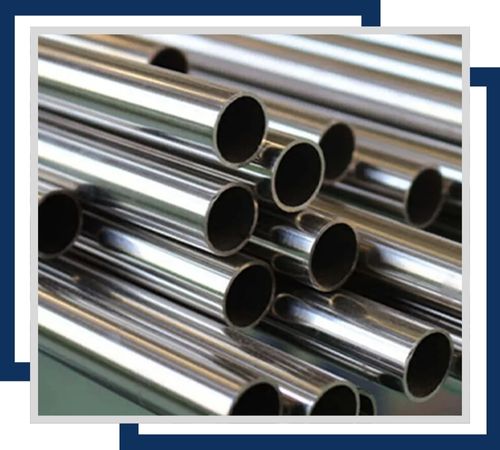

Stainless Steel 301 Seamless Pipe offers excellent strength and ductility, corrosion resistance, and durability. It’s ideal for high-stress applications in automotive, aerospace, and structural components. Customizable lengths and diameters.

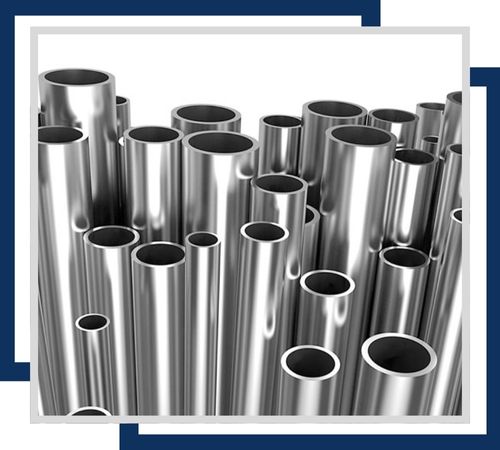

Stainless Steel TP 301 Welded Pipe provides high strength, excellent corrosion resistance, and good formability. Suitable for structural, automotive, and aerospace applications. Features smooth welds and customizable sizes.

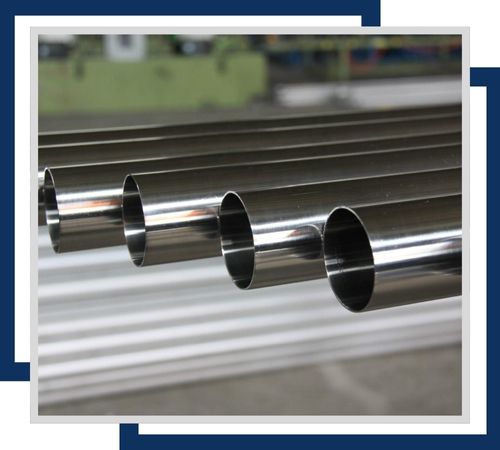

Stainless Steel TP 301 ERW Pipe combines high tensile strength with excellent corrosion resistance. Ideal for various applications including automotive and structural, it offers durability and uniform welds in customizable sizes.

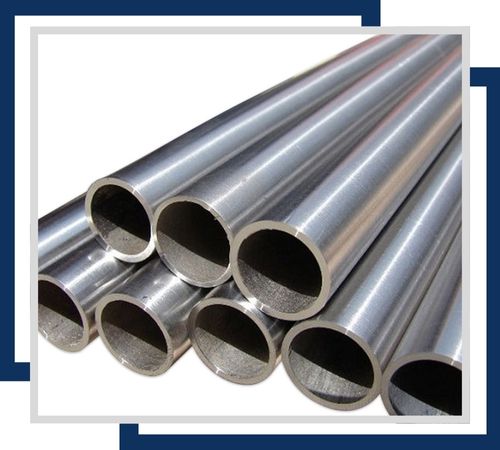

ASTM A666 TP 301 EFW Pipe offers high strength, excellent corrosion resistance, and good weldability. It’s ideal for structural and industrial applications, featuring smooth welds and customizable dimensions.

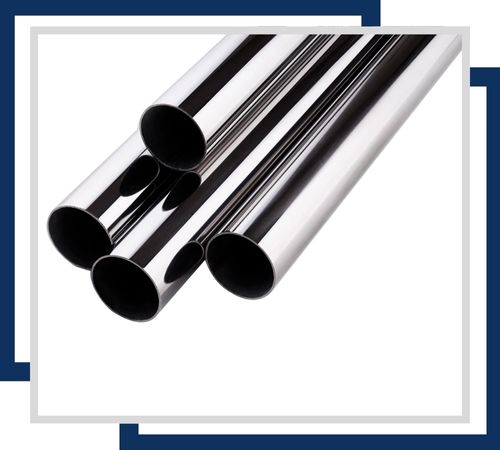

Stainless Steel 301 Round Pipe combines high tensile strength with excellent corrosion resistance and formability. Ideal for structural and industrial applications, it offers durability, precision, and various size options.

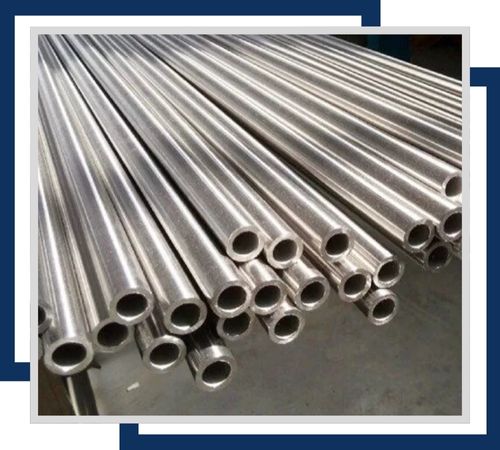

Stainless Steel 301 EFW Pipes provide high strength, excellent corrosion resistance, and superior weld quality. Ideal for structural and industrial applications, they offer durability and are available in customizable dimensions.
Stainless Steel 301 Pipes are a go-to choice in various industries that require a perfect blend of strength, resistance to corrosion, and the ability to be shaped easily. You’ll often find them in automotive exhaust systems, springs, washers, kitchen equipment, and even in architectural designs. Thanks to their durability, these pipes can handle mechanical stress and can thrive in moderately corrosive environments, making them ideal for sectors like chemical processing, construction, and aerospace. Their fantastic cold working properties mean they can be bent or formed into intricate shapes for specialized applications. Plus, 301 pipes are also popular in decorative projects and machinery parts where both durability and visual appeal matter.
