Harsh Metalloys is a leading manufacturer and exporter of Stainless Steel 415 bars based in Mumbai, India. We deal with supplying high-quality stainless steel items according to international standards of strength, durability, and corrosion resistance. Our SS 415 bars are made from cutting-edge production techniques and top-grade raw materials to guarantee maximum performance in highly critical industrial operations. Reputed for accuracy, dependability, and customer satisfaction, Harsh Metalloys caters to a wide variety of industries such as construction, petrochemicals, power generation, and engineering sectors. Our delivery on time and quality management make us a known name in stainless steel suppliers in India and overseas.
415 Stainless Steel bars are martensitic stainless steel products which contain primarily 12-14% chromium and have added carbon and manganese to give increased hardness and mechanical strength. These bars possess good resistance to corrosion in mildly corrosive conditions and possess excellent tensile strength. The general tensile strength is between 700 MPa and 850 MPa, with a yield strength of about 450 MPa, based on heat treatment. SS 415 bars possess good machinability and fair weldability and are apt for high-stress applications. Their magnetic properties and high mechanical properties render them suitable for structures and precision-machined parts.
| Specifications : | ASTM A240 / ASME SA240 |
| Dimensions : | ASTM, ASME and API |
| Standard : | JIS, AISI, ASTM, GB, DIN, EN, etc. |
| Surface : | 2B, 2D, BA, NO.4, NO.8, 8K, Mirror,Checkered, Embossed, Hair Line, Sand Blast, Brush, Etching |
| Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm,etc. |
| Finish : | Black,Bright Polished,Rough Turned,No.4 Finish,Matt Finish,BA Finish |
| Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc. |
| Grade | C | Mn | P | S | Si | Ch | Ni | Mo |
| SS 415 | 0.05 max | 0.50-1.00 | 0.030 max | 0.030 max | 0.60 max | 11.5-14.0 | 3.5-5.5 | 0.50-1.00 |
| Tensile Strength R₃ N/mm² | 700-800 | 700-800 | 700-800 | 700-800 | 700-800 | 700-800 | 700-800 |
| 0.2% Offset Yield Strength Rᵖ ≥N/mm² | 520 | 520 | 520 | 520 | 520 | 520 | 520 |
| Elongation in 2 inches, % | 15 min | 15 min | 15 min | 15 min | 15 min | 15 min | 15 min |
| Grade | Density lbm/in3 | Melting Range(°F) | Thermal Conductivity(BTU-in/hr- ft. °F) | Electrical Resistivity(in x 10-6) | Modulus of Elasticity (psi x 106 | Coefficient of Thermal Expansion (in/in)/°F x 10-6 | Specific Heat(BTU/lb/°F) |
|---|---|---|---|---|---|---|---|
| 415 | -at 68°F: 0.280 | 2700 to 2790 | 187 at 212°F | 23.7 at 68°F | 29 | 6.0 at 32 – 212°F | 0.11 at 68°F to 212°F |
| – | – | – | – | – | 7.5 at 68 – 1200°F | – |
Contact us to get a quick quote for your requirement.
We ensures the highest standards of stainless steel 415 frames through rigorous testing procedures. Our products undergo comprehensive inspection, including chemical composition analysis, tensile strength and hardness tests, to ensure they conform to international standards. Certified and certified by authorities, we guarantee reliability, durability and performance in every batch delivered.

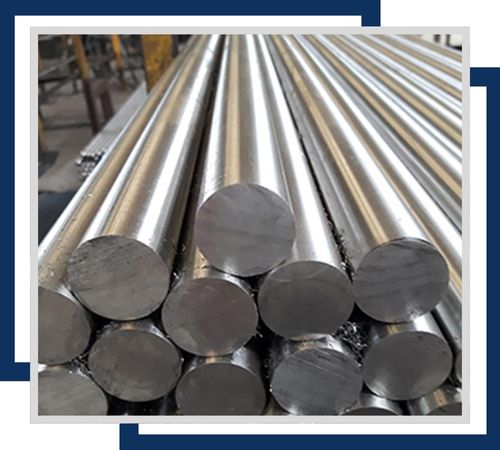

SS 415 (Precipitation Hardening) Bar Round Bar is a high-strength stainless steel alloy, known for its excellent corrosion resistance, toughness, and hardness. It is commonly used in applications requiring high strength-to-weight ratios, such as aerospace, automotive, and structural components. It undergoes a heat treatment process for enhanced properties.

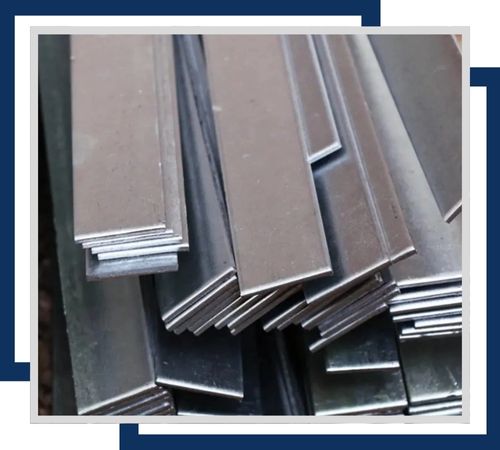

Stainless Steel 415 Flat Bar is a precipitation-hardening alloy known for its excellent strength, corrosion resistance, and hardness. It is widely used in industries such as aerospace, defense, and automotive, offering high strength-to-weight ratios. The flat bar undergoes heat treatment for improved mechanical properties and durability.

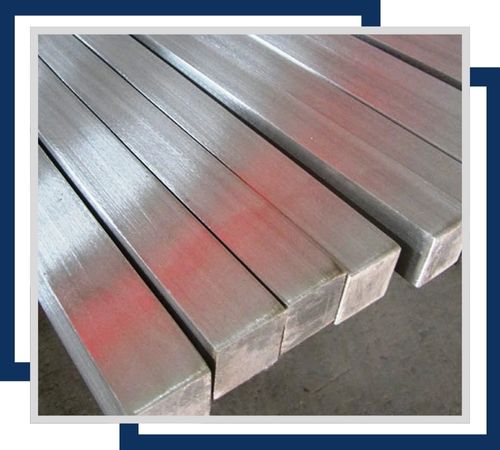

SS 415 Bar Square Bar is a precipitation-hardening stainless steel offering high strength, corrosion resistance, and hardness. It is commonly used in industries such as aerospace, defense, and automotive for applications requiring strong, durable materials. The square bar is heat-treated to enhance its mechanical properties and performance.

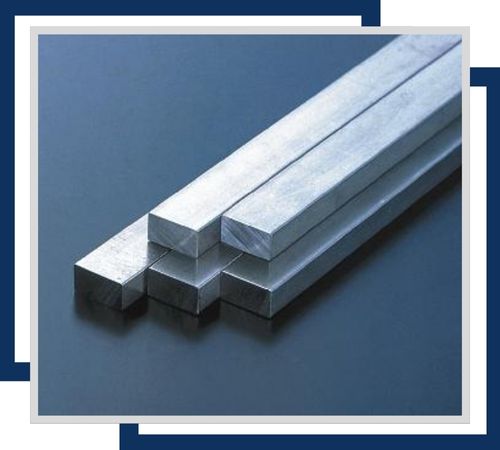

Stainless Steel 415 Rectangular Bar is a precipitation-hardening stainless steel known for its exceptional strength, corrosion resistance, and hardness. Commonly used in aerospace, automotive, and defense industries, this bar offers high mechanical properties and durability. It is heat-treated for enhanced strength and wear resistance in demanding applications.

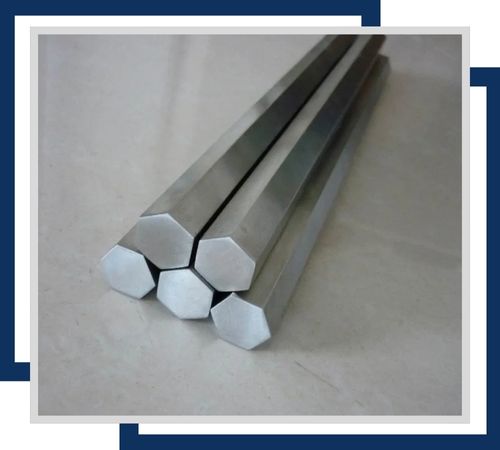

SS 415 Bar Hexagonal Bar is a high-strength, corrosion-resistant stainless steel alloy. It undergoes precipitation hardening to enhance its hardness and mechanical properties. Typically used in aerospace, automotive, and defense industries, this hexagonal bar provides excellent durability, wear resistance, and strength for demanding structural and mechanical applications.

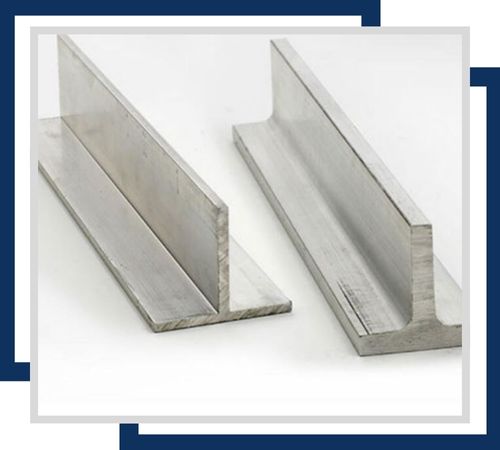

SS 415 Bar T-Bar is a precipitation-hardening stainless steel known for its high strength, excellent corrosion resistance, and hardness. Often used in aerospace, automotive, and industrial applications, this T-shaped bar provides enhanced mechanical properties after heat treatment, offering durability and reliability in demanding structural and mechanical components.
Stainless Steel 415 bars are extensively applied in industries that demand robust, long-lasting, and corrosion-resistant materials. Some common uses are shafts, fasteners, valves, pump components, and components for compressors and turbines. These bars are best applicable in high-stress conditions, for instance, in oil and gas refineries, petrochemical processing, and heavy-duty mechanical equipment. Moreover, SS 415 bars are employed in the construction and infrastructure sectors where high strength and moderate resistance to corrosion are essential. Their machinability and economic price make them a favorite choice in the manufacturing of automotive and engineering components as well.
