Based in Mumbai, India, Harsh Metalloys is a top producer and supplier of stainless steel 309 bars. We provide premium SS 309 bars that are made to withstand the rigours of corrosive and high-temperature applications. Our bars are made with high-quality raw materials and cutting-edge methods to meet international quality standards. These bars are renowned for their robustness, longevity, and ability to withstand heat and oxidation. Power generation, heat treatment, and petrochemicals are just a few of the many industries that Harsh Metalloys serves. We are a reliable partner in the engineering industry because of our dedication to accuracy, excellence, and prompt delivery.
Approximately 22–24% chromium and 12–15% nickel make up stainless steel 309 bars, which provide exceptional resistance to oxidation and high temperatures. The tensile strength, yield strength, and elongation of this austenitic stainless steel alloy are approximately 550 MPa, 205 MPa, and 40%, respectively. The bars are appropriate for thermal environments because they maintain their mechanical integrity even at temperatures as high as 1000°C. In industrial applications involving thermal cycling and chemical exposure, SS 309 bars provide long-lasting performance due to their exceptional weldability, good creep resistance, and corrosion resistance in oxidising conditions.
| Specifications | ASTM A276, ASTM A479 |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 309 Round Bars | Outside Diameter in the range of 4mm to 500mm |
| SS 309 Bright Bars | Outside Diameter in the range of 4mm to 100mm |
| SS 309 Hex Bars | 18mm – 57mm (11/16″ to 2-3/4″) |
| SS 309 Square Bars | 18mm – 47mm (11/16″ to 1-3/4″) |
| SS 309 Flat Bars | 1/2” to 10” in thickness range of 2mm to 150mm, Custom Size Stainless Steel Flats available |
| Finish | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Length | 1 to 6 Meters, Custom Cut Lengths |
| Form | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc. |
Element | Content (%) |
Iron, Fe | 60 |
Chromium, Cr | 23 |
Nickel, Ni | 14 |
Manganese, Mn | 2 |
Silicon, Si | 1 |
Carbon, C | 0.20 |
Phosphorous, P | 0.045 |
Sulfur, S | 0.030 |
Properties | Metric | Imperial |
Tensile strength | 620 MPa | 89900 psi |
Yield strength (@ strain 0.200%) | 310 MPa | 45000 psi |
Izod impact | 120 – 165 J | 88.5 – 122 ft-lb |
Shear modulus (typical for steel) | 77 GPa | 11200 ksi |
Elastic modulus | 200 GPa | 29008 ksi |
Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
Elongation at break (in 50 mm) | 45% | 45% |
Hardness, Brinell | 147 | 147 |
Hardness, Rockwell B | 85 | 85 |
Hardness, Vickers (converted from Rockwell B hardness) | 169 | 169 |
Contact us to get a quick quote for your requirement.
We carries out rigorous performance tests on complete batches of Stainless Steel 309 Bars with regards to chemical composition, mechanical properties, and the degree of corrosion resistance. Our products are certified by recognized authorities regarding conformity to international standards for ensuring reliability and consistency with every delivery.

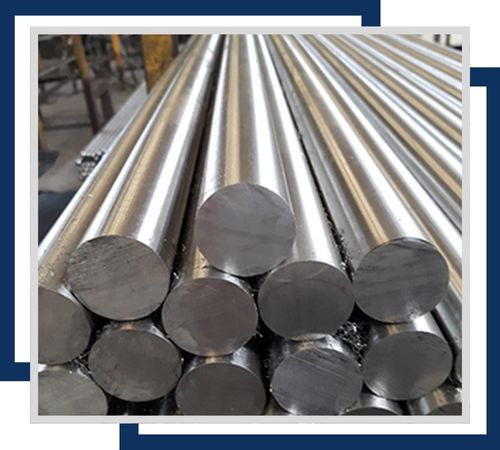

Stainless Steel 309 Round Bars offer excellent corrosion resistance and are available in diameters ranging from 6 mm to 200 mm. Ideal for high-temperature applications and structural uses, they ensure durability and strength.

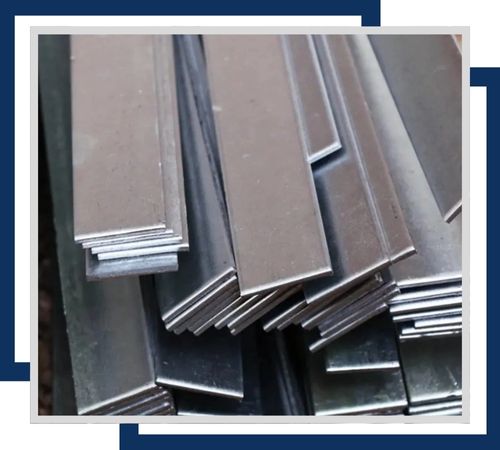

Featuring good corrosion resistance, Stainless Steel 309 Flat Bars come in widths from 20 mm to 150 mm and thicknesses from 5 mm to 50 mm. These bars are used in construction, manufacturing, and industrial applications for their thermal stability.

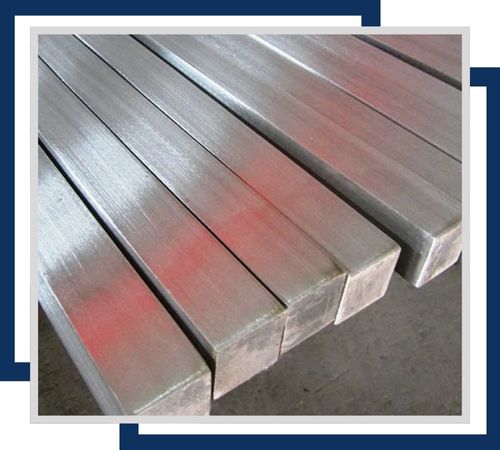

Known for their corrosion resistance, Stainless Steel 309 Square Bars are available in sizes from 10 mm to 100 mm. They are utilized in various structural and industrial applications where strength and heat resistance are required.

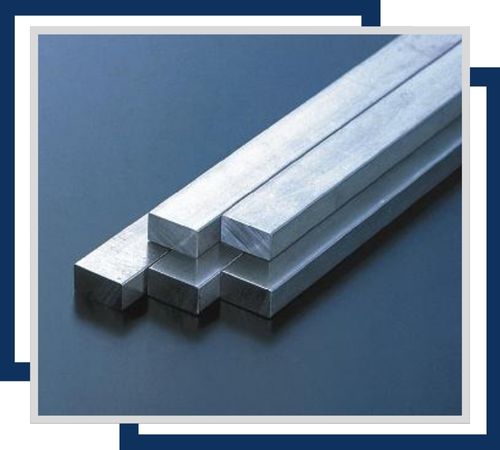

Stainless Steel 309 Rectangular Bars provide corrosion resistance and are offered in dimensions like 20 mm x 10 mm to 150 mm x 50 mm. These bars are suitable for use in high-temperature environments and structural applications.

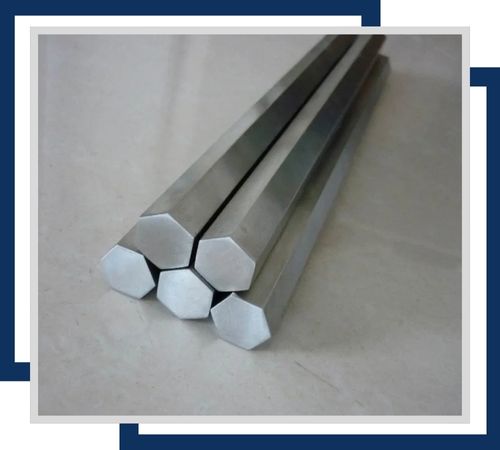

Offering corrosion resistance, Stainless Steel 309 Hexagonal Bars are available in sizes ranging from 6 mm to 50 mm across flats. They are often used in machining, fabrication, and for applications requiring heat resistance.

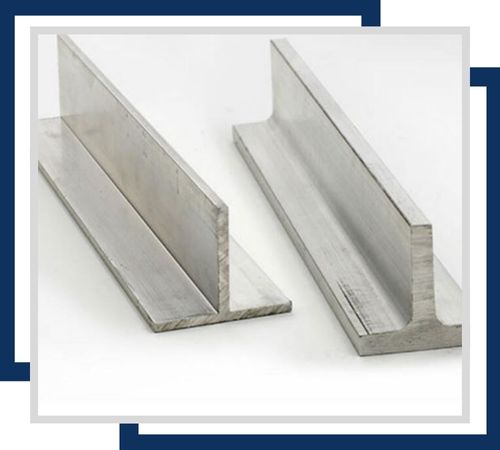

Stainless Steel 309 T-Bars are known for their high-temperature resistance and oxidation resistance. Available in sizes ranging from 15 mm x 15 mm x 6 mm to 100 mm x 100 mm x 12 mm, they are used in industrial applications such as heat exchangers and furnace components, providing durability and strength in extreme conditions.
Stainless steel 309 bars are frequently utilised in applications where oxidation and heat resistance are crucial. These consist of boiler parts, oil burner parts, heat exchangers, furnace parts, and equipment used in chemical processing. They are frequently found in sectors like food processing, metallurgy, power generation, and petrochemicals. The bars are perfect for fasteners, shafts, and structural supports under high-temperature operating conditions. Because SS 309 bars maintain their strength at high temperatures, they are also used in thermal plants, incinerators, and exhaust systems, guaranteeing dependable operation and structural stability in harsh environments.
