Harsh Metalloys is a reputed manufacturer and supplier of Stainless Steel 317L Bars in Mumbai, India. Known for their outstanding corrosion resistance and excellent mechanical properties, these bars are widely used in demanding industrial applications. Made from low carbon, molybdenum-enriched austenitic stainless steel, our 317L bars comply with international standards such as ASTM A276 and ASTM A479. Available in various sizes and finishes, these bars are ideal for fabricating components that require high strength and durability in aggressive chemical environments, including chemical processing, marine, and pharmaceutical industries.
Stainless Steel 317L Bars feature a chemical composition with 17–20% chromium, 11–15% nickel, 3–4% molybdenum, and a maximum of 0.03% carbon. The low carbon content prevents carbide precipitation during welding, enhancing corrosion resistance in harsh environments. These bars have a typical tensile strength of around 515 MPa and a yield strength near 205 MPa, offering excellent ductility and toughness. Their molybdenum content significantly improves resistance to pitting and crevice corrosion, making them highly reliable for critical applications in acidic and chloride-rich atmospheres.
| Specification | ASTM A276, A479 / ASME SA276, SA479 |
|---|---|
| Standard | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Round Bars | Outside Diameter in the range of 4mm to 500mm |
| Bright Bars | Outside Diameter in the range of 4mm to 100mm |
| Hex Bars | 18mm – 57mm (11/16″ to 2-3/4″) |
| Square Bars | 8mm – 47mm (11/16″ to 1-3/4″) |
| Length | 1 to 6 meters, Custom Cut Length |
| Form | Round, Square, Hexagonal, Rectangular |
| Grade | C | Mn | Si | P | S | Cr | Ni | Mo | N |
| SS 317L | 0.03 max. | 2.00 max. | 0.75 max. | 0.045 max. | 0.03 max. | 18.0 – 20.0 | 11.0 – 15.0 | 3.0 – 4.0 | 0.1 |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | ||
| Rockwell B (HR B) max | Brinell (HB) max | |||||
| 317L | 595 MPa | 260 MPa | 55% | 85 | 200 | – |
Contact us to get a quick quote for your requirement.
We ensures exceptional quality through rigorous testing and certification of stainless steel 317L frames. Each bar undergoes ultrasonic, hardness and tensile strength testing to ensure it meets industry standards. Certified to ISO 9001, EN10204 3.1/3.2, and NABL-accredited laboratory reports, our products guarantee durability, corrosion resistance and reliability for critical applications

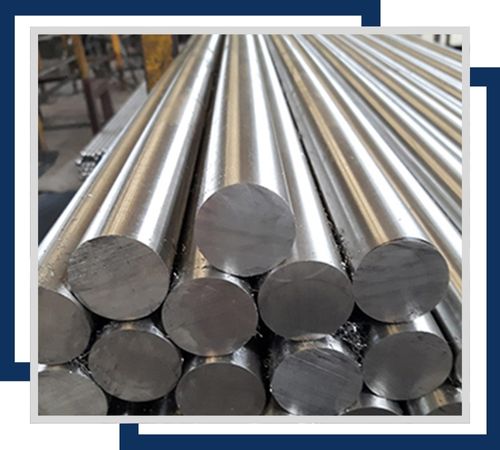

Corrosion-resistant Stainless Steel 317L Round Bars come in various diameters, typically from 6mm to 300mm. Ideal for applications requiring high strength and resistance to chloride environments, these bars are used in chemical and marine industries.

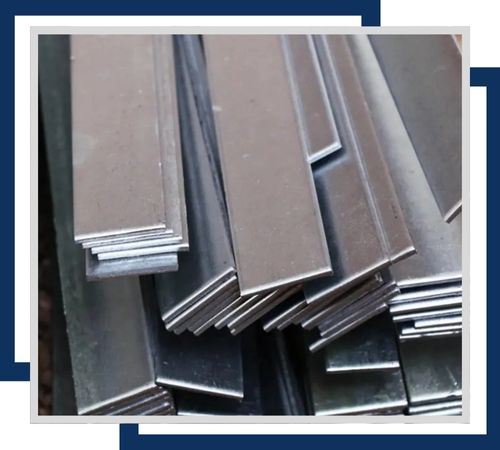

Stainless Steel 317L Flat Bars are available in thicknesses from 3mm to 50mm and widths up to 300mm. These bars offer exceptional corrosion resistance, making them suitable for structural and industrial applications, including chemical processing.

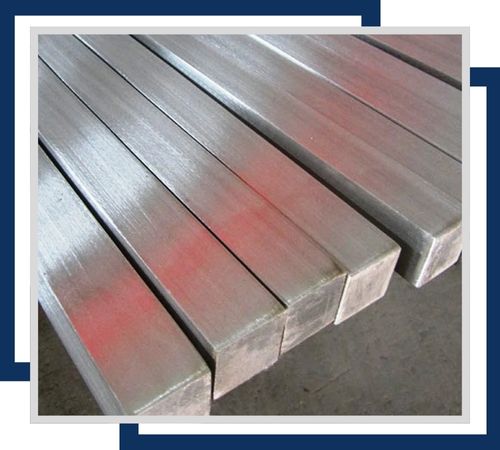

Stainless Steel 317L Square Bars are produced in sizes ranging from 10mm to 100mm. Known for their durability and resistance to aggressive environments, they are ideal for use in manufacturing and construction where strength and corrosion resistance are essential.

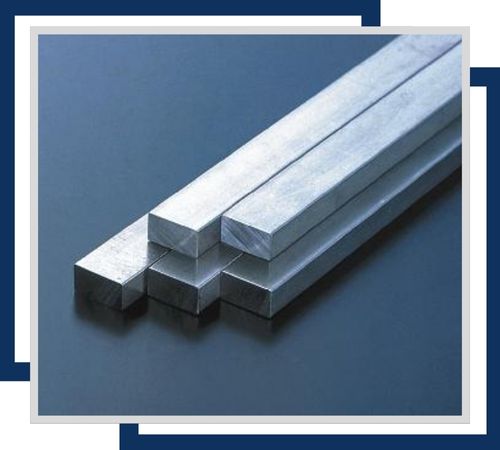

Stainless Steel 317L Rectangular Bars come in custom sizes with typical thicknesses of 5mm to 50mm and widths from 20mm to 200mm. They are used in applications where strength and resistance to harsh conditions are critical, such as in marine and chemical industries.

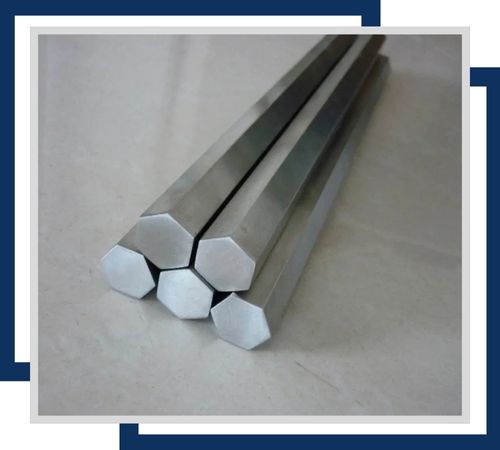

Stainless Steel 317L Hexagonal Bars are available in dimensions from 10mm to 100mm across flats. Their unique shape and corrosion resistance make them suitable for applications in high-stress environments, including aerospace and marine sectors.

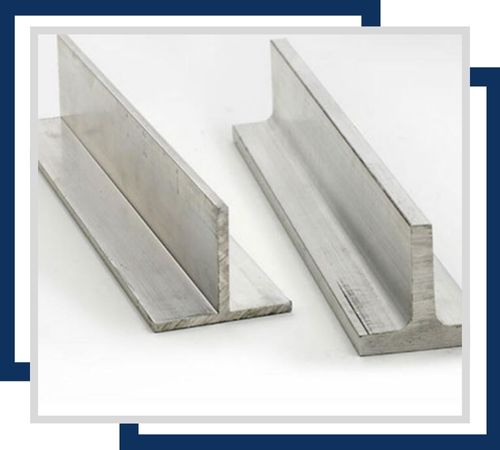

Stainless Steel 317L T-Bars are manufactured with standard dimensions, often ranging from 10mm x 10mm to 100mm x 100mm. These bars are used in structural and industrial applications where high resistance to corrosion and strength are required, such as in chemical processing plants.
Stainless Steel 317L Bars are extensively used in chemical processing equipment, marine applications, pharmaceutical machinery, food processing plants, and power generation industries. Their superior corrosion resistance makes them ideal for components exposed to strong oxidizing agents, acids, and chloride-rich environments. These bars are often used to manufacture valves, pumps, heat exchangers, and structural parts requiring high strength and long-term reliability. Harsh Metalloys supplies these bars in various shapes and sizes, ensuring precise engineering to meet the rigorous demands of critical industrial applications.
