Harsh Metalloys stands out as a top manufacturer and supplier of Stainless Steel 15-5 PH Bars, proudly based in Mumbai, India. This particular grade, known as SS 15-5 PH (UNS S15500), is a precipitation-hardening martensitic stainless steel that boasts impressive strength, outstanding corrosion resistance, and solid transverse toughness. It’s an upgraded version of 17-4 PH, featuring enhanced toughness and lower ferrite content. Harsh Metalloys offers these bars in a range of diameters and heat-treated conditions like H900, H1025, and H1150M, all in line with international standards such as AMS 5659 and ASTM A564. These bars are perfect for applications in aerospace, marine, chemical, and high-stress mechanical fields.
When it comes to composition and mechanical properties, Stainless Steel 15-5 PH Bars generally consist of 15% chromium, 5% nickel, and trace amounts of copper (around 3.5%), manganese, silicon, and carbon. This alloy can achieve a tensile strength of up to 1310 MPa, a yield strength of about 1170 MPa, and an elongation rate of 10–15%, depending on the aging treatment applied. With a hardness reaching up to 40 HRC, SS 15-5 PH is not only machinable and weldable but also exhibits excellent mechanical properties in both longitudinal and transverse directions. Additionally, it offers remarkable resistance to stress corrosion cracking and general corrosion, making it an ideal choice for precision-engineered, high-strength components.
| Specification : | ASTM A564 / ASME SA564 AMS 5643 |
| Standard : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Round Bars : | Outside Diameter in the range of 4mm to 500mm |
| Bright Bars : | Outside Diameter in the range of 4mm to 100mm |
| Hex Bars : | 18mm – 57mm (11/16″ to 2-3/4″) |
| Square Bars : | 18mm – 47mm (11/16″ to 1-3/4″) |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Length : | 1 to 6 Meters, Custom Cut Lengths |
| Form : | Round, Square, Hex (A/F), Rectangle Etc. |
| Grade | C | Cb+Ta | Cr | Cu | Fe | Mn | Ni | P | S | Si |
| SS 15-5 PH | 0.07 max | 0.15-0.45 max | 14.0-15.0 max | 2.5-4.5 max | Bal | 1.0 | 3.5-5.5 | 0.04 | 0.03 | 1.0 |
| Grade | Tensile Strength ksi (MPa) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Rockwell) MAX |
| SS 15-5 PH | 161,000 | 140,000 | 7.6% | C35 |
| Density | Electrical conductivity (% IACS) | Thermal conductivity (BTU-in/hr-ft²-°F) | Specific heat capacity | Thermal expansion (1/°F) | Melting Point (°F) |
| 0.282 | 1.72 | 97 | 0.11 | 0.00000589 | 2560 |
Contact us to get a quick quote for your requirement.
At Harsh Metalloys, stainless steel 15-5 PH bars undergo rigorous quality testing including hardness, tensile strength, ultrasonic, and corrosion resistance tests Each product is certified to meet international standards such as ASTM , AMS and ASME. Material Testing Certificates (MTC) and third-party inspection reports ensure the reliability and efficiency of each application.

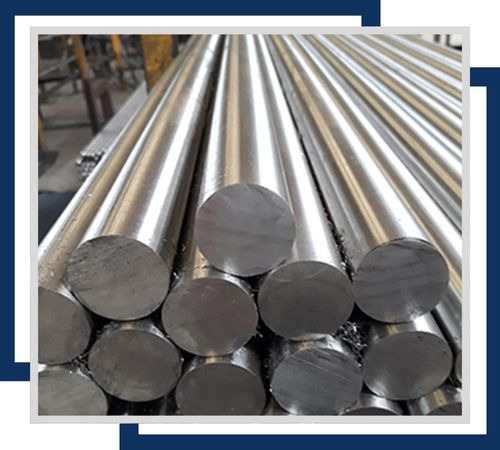

SS 15-5 PH (Stainless Steel 15-5 PH) is a precipitation-hardening stainless steel alloy known for high strength, corrosion resistance, and excellent fatigue properties. It is commonly used in aerospace, chemical, and petrochemical industries. The bar round form is versatile for manufacturing components requiring strength and durability.

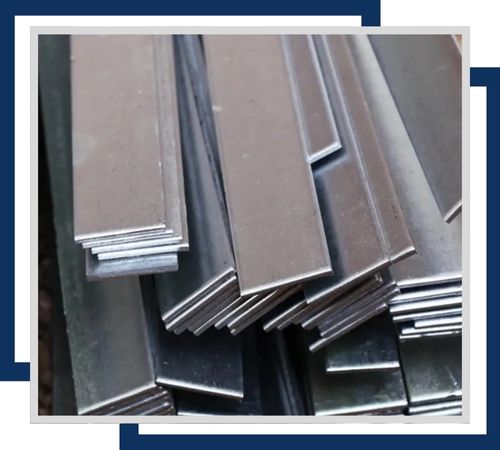

Stainless Steel 15-5 PH Flat Bar is a precipitation-hardening alloy offering high strength, excellent corrosion resistance, and good fatigue properties. It is widely used in aerospace, chemical, and petrochemical industries for applications requiring superior mechanical performance. Its flat bar form is ideal for structural and precision components.

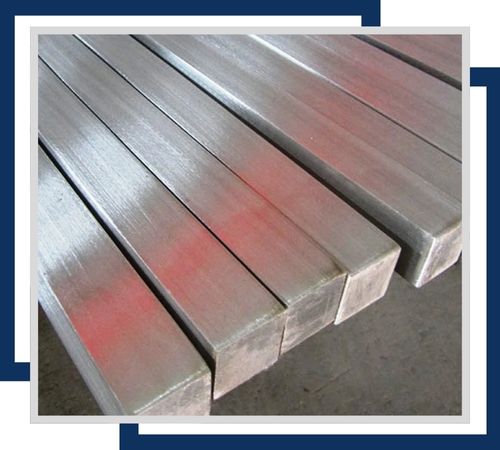

SS 15-5 PH Square Bar is a precipitation-hardening stainless steel known for its high strength, corrosion resistance, and excellent fatigue properties. It is commonly used in aerospace, chemical, and petrochemical industries. The square bar shape is ideal for applications requiring precise dimensions and enhanced mechanical performance in various structural components.

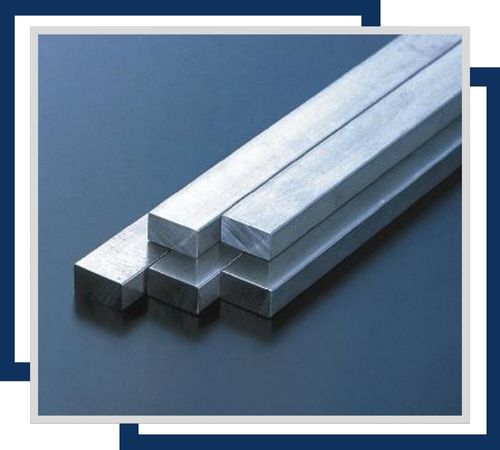

Stainless Steel 15-5 PH Rectangular Bar is a high-strength, corrosion-resistant alloy offering excellent fatigue and mechanical properties. Commonly used in aerospace, chemical, and petrochemical industries, it provides superior performance in harsh environments. The rectangular bar shape is ideal for precise structural applications and components requiring durability and resistance to corrosion.

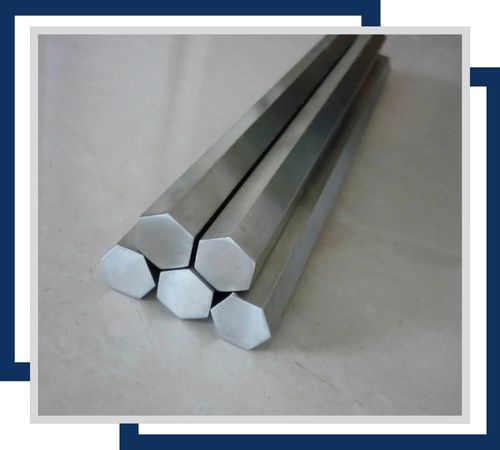

SS 15-5 PH Hexagonal Bar is a high-strength, corrosion-resistant stainless steel alloy, offering excellent mechanical properties and fatigue resistance. Widely used in aerospace, chemical, and petrochemical industries, the hexagonal bar shape is ideal for applications requiring precise, durable components with enhanced performance and resistance to harsh environments and corrosion.

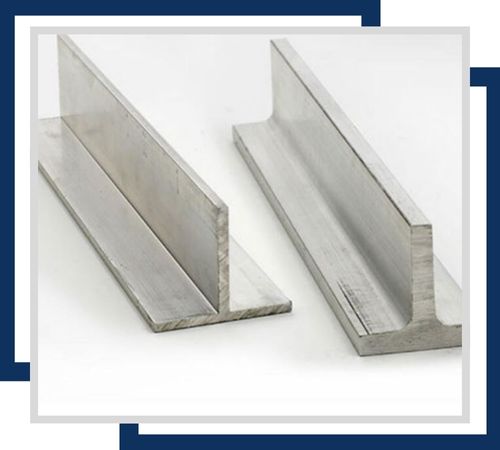

SS 15-5 PH T-Bar is a high-strength, corrosion-resistant stainless steel alloy known for its excellent fatigue resistance and mechanical properties. Commonly used in aerospace, chemical, and petrochemical industries, the T-bar shape offers structural integrity and versatility for applications requiring precision, durability, and superior performance in challenging environments.
Stainless Steel 15-5 PH Bars are incredibly popular in a variety of applications, including aerospace components, structural parts, marine shafts, valve parts, fasteners, fittings, and even nuclear reactor components. Thanks to its impressive strength-to-weight ratio and outstanding corrosion resistance, it’s a go-to choice for pressurized systems, jet engine parts, and landing gear structures. You’ll also find SS 15-5 PH being used in chemical processing, food processing equipment, paper and pulp machinery, and a range of general industrial applications. The alloy’s stability during heat treatment and remarkable toughness guarantee reliable performance in both static and dynamic loading situations, particularly where precision, fatigue resistance, and corrosion resistance are crucial.
