Harsh Metalloys is a reputable manufacturer and supplier of Stainless Steel 317/317L forged fittings, proudly based in Mumbai, India. We specialize in delivering high-performance piping components that are renowned for their outstanding corrosion resistance, strength, and durability, especially in challenging chemical and marine environments. Our fittings are crafted from top-quality materials using advanced forging techniques, ensuring they meet international quality standards and cater to a diverse range of industries. With years of experience and a solid reputation for reliability, Harsh Metalloys is dedicated to supporting the chemical, pharmaceutical, marine, and food processing sectors both in India and around the world with top-notch stainless steel fitting solutions.
Stainless Steel 317/317L forged fittings are created from a molybdenum-bearing austenitic stainless steel alloy, featuring 18–20% chromium, 11–15% nickel, and 3–4% molybdenum. The “L” grade is designed with lower carbon content to improve weldability and minimize the risk of intergranular corrosion. These fittings boast a tensile strength of about 515 MPa and a yield strength of roughly 205 MPa, providing excellent resistance to pitting and crevice corrosion in environments rich in chlorides and acids. The combination of strength, ductility, and corrosion resistance in SS 317/317L forged fittings makes them perfect for high-stress and corrosive applications.
Specifications ASTM A182 & ASME SA182
Standard ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type Socketweld Fittings, Screwed-Threaded Fittings
Forged Fittings Items 45 Deg Elbow, 90 Deg Elbow, Forged Tee, Union, Full Coupling, Half Coupling, Cross, Cap, Swage Nipple, Plug, Bush, Welding Boss, Hexagonal Nipple etc.
Type Socketweld Fittings, Screwed-Threaded Fittings
Grade 317 / 317L UNS (S31700, S31703), DIN (1.4449, 1.4438)
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.845 min |
| SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
We ensures that all stainless steel 317/317L forged fittings go through rigorous testing procedures, including dimensional testing, mechanical testing and corrosion resistance testing. The products are certified to meet international quality standards, including ASTM, ASME, and EN specifications, providing customers with guaranteed reliability and performance for a range of industrial applications

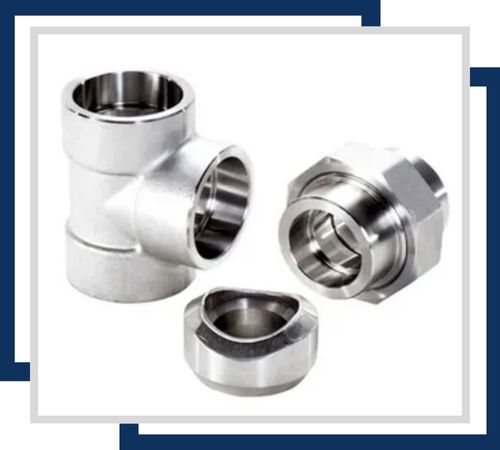

Stainless Steel 317 Socket Weld Fittings are renowned for their excellent corrosion resistance and are commonly used in high-pressure applications. They are available in sizes ranging from 1/8″ to 4″ and are manufactured to meet ASTM standards, ensuring strong, leak-proof connections.
Offering high corrosion resistance, these fittings are designed for easy installation in various piping systems. Common sizes range from 1/8″ to 6″ NPT, providing versatility and robustness in handling fluids and gases.

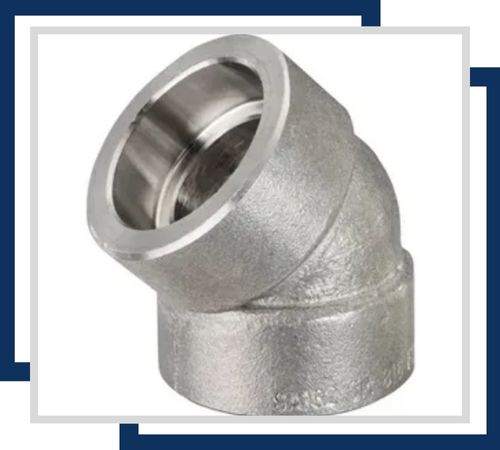

With superior corrosion resistance, this elbow allows for smooth directional changes in piping systems. It is available in sizes from 1/2″ to 4″ and is designed to meet ASTM specifications for high strength and durability.

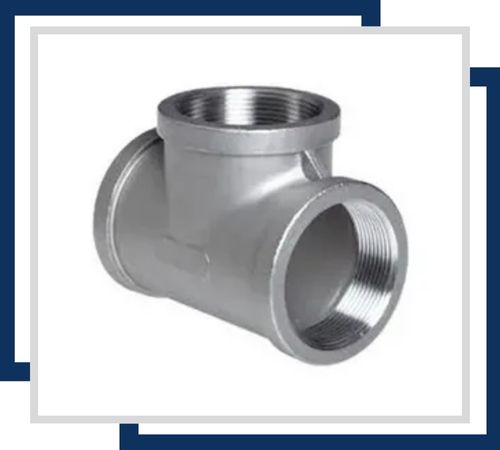

This fitting combines high corrosion resistance with structural integrity, ideal for branching pipes at a 90-degree angle. Available in sizes from 1/8″ to 6″ NPT, it ensures reliable and secure connections.

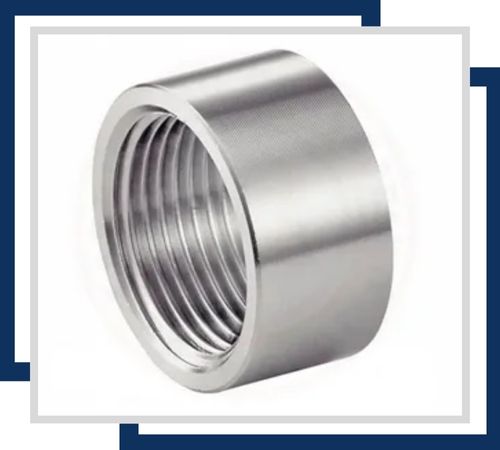

Known for its excellent corrosion resistance, this half coupling connects two threaded pipes or fittings. Common sizes include 1/4″ to 4″ NPT, providing a strong and durable link.

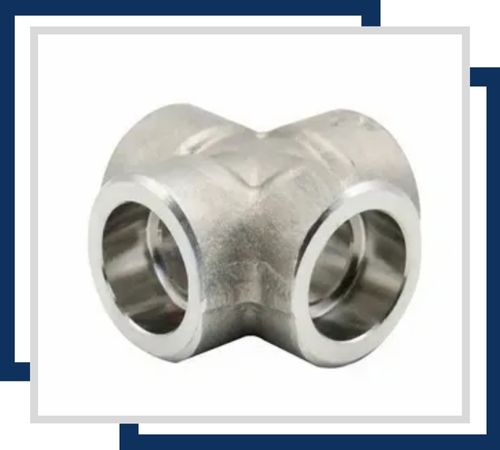

This cross-fitting offers exceptional corrosion resistance, enabling the intersection of four pipes. Sizes typically range from 1/2″ to 4″, adhering to ASTM standards for robustness and reliability in high-pressure applications.
These fittings are widely utilized in industries that demand resistance to harsh chemicals and high-pressure conditions. Common applications include chemical processing plants, pharmaceutical production lines, food and beverage facilities, marine equipment, and pulp and paper manufacturing. SS 317/317L forged fittings are particularly suited for systems that transport corrosive fluids, acids, and chlorides. They find their place in reactors, heat exchangers, condensers, and storage tanks, where corrosion resistance and structural integrity are vital. With SS 317/317L forged fittings, you can count on long-term reliability, easy installation, and exceptional performance in demanding industrial applications.
