Harsh Metalloys, a well-respected manufacturer and supplier based in Mumbai, India, specializes in top-notch Stainless Steel 347/347H Forged Fittings designed for high-temperature and corrosive environments. SS 347 is enhanced with niobium to prevent intergranular corrosion, while SS 347H has a higher carbon content, boosting its creep strength and performance in elevated temperatures. These forged fittings are crafted in line with ASTM A182 and ASME standards, guaranteeing impressive strength, precise dimensions, and outstanding durability. Available in various shapes like elbows, tees, couplings, and unions, SS 347/347H forged fittings are perfect for industries such as petrochemical, power generation, and chemical processing.
Stainless Steel 347/347H Forged Fittings are composed of 17–20% Chromium, 9–13% Nickel, and are stabilized with Niobium (with a minimum Nb content of 10 times the carbon content). SS 347H has a higher carbon content (0.04–0.10%) compared to SS 347, which improves its creep resistance during extended high-temperature use. These fittings boast a tensile strength ranging from 515 to 690 MPa and show excellent resistance to intergranular corrosion, oxidation, and thermal fatigue. They are non-magnetic when annealed and maintain their mechanical stability even under extreme temperatures and pressures. Their strength, weldability, and corrosion resistance make them ideal for demanding industrial applications.
Stainless Steel Forged Fittings Specification : ASTM A182 / ASME SA182
Dimension Standard : ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799
Size : 1/8″ NB to 4″ NB
Type : Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)
Rating Pressure : Threaded End – 2000 /3000/ 6000 LBS. Socket-weld End – 3000 / 6000/ 9000 LBS.
| C | Cr | Mn | Ni | P | S | Si | Cb/Ta | |
|---|---|---|---|---|---|---|---|---|
| 347 | 0.08 max | min: 17.0 max: 20.0 | 2.0 max | min: 9.0 max: 13.0 | 0.04 max | 0.30 max | 0.75 max | min:10x C max: 1.0 |
| 347H | min: 0.04 max: 0.10 | min: 17.0 max: 20.0 | 2.0 max | min: 9.0 max: 13.0 | 0.03 max | 0.30 max | 0.75 max | min:10x C max: 1.0 |
| Grade | Tensile Strength ksi (MPa) min | Yield Strength 0.2% ksi offset ksi (MPa) min | Elongation (% in 50mm) min | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
|---|---|---|---|---|---|
| 347/347H | 75 (515) | 30 (205) | 40 | 201 | 95 |
Contact us to get a quick quote for your requirement.
At Harsh Metalloys, all stainless steel 347/347H forged fittings are rigorously tested to ensure unmatched quality and performance. Each product is certified to international standards, including ISO, ASTM and ASME. Comprehensive testing such as fluid stability, ultrasonic and mechanical analysis provides reliability, stability and compliance for various industrial applications.

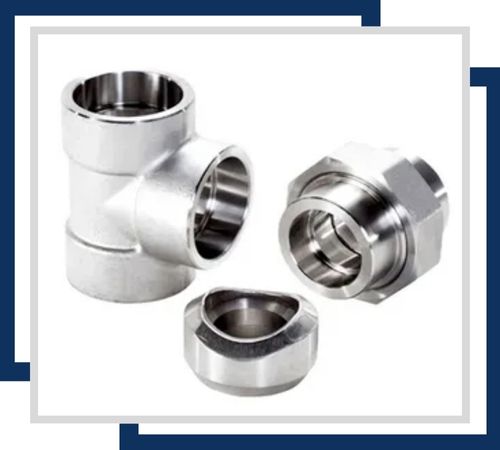

These durable 347 socket weld fittings are designed to create leak-proof, high-strength joints that excel in resisting corrosion and heat. They’re perfect for use in power plants and chemical industries.

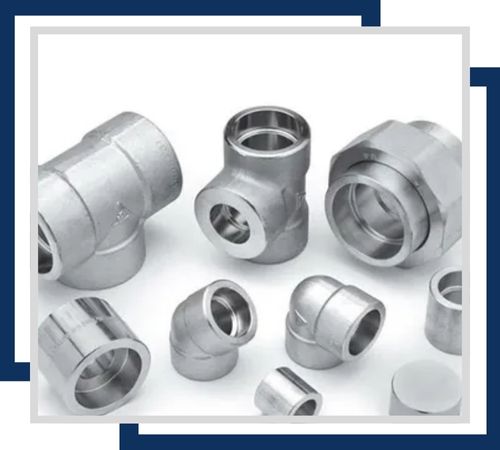

With precision engineering, 347H threaded fittings offer secure and easy-to-install connections. They boast excellent thermal stability and corrosion resistance, making them ideal for high-temperature and pressure piping systems.

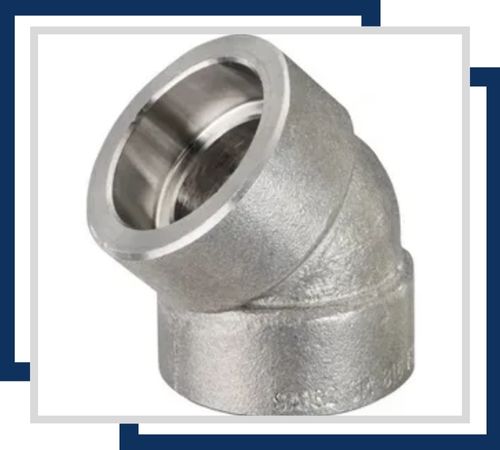

The 347H socket weld 45° elbows allow for smooth directional changes in piping. They provide strong corrosion resistance and heat tolerance, making them a great choice for industrial fluid transport systems.

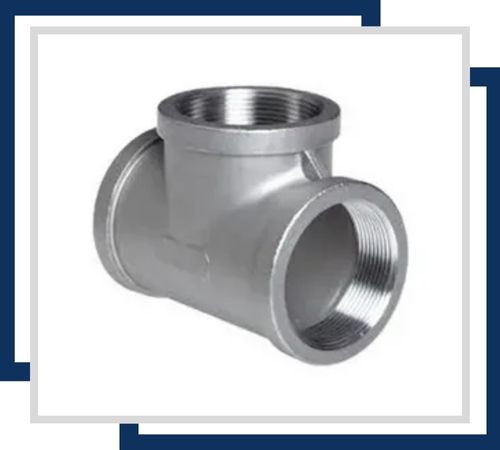

347 threaded tees are reliable for creating branch connections, offering outstanding corrosion and heat resistance. They’re commonly found in chemical, petrochemical, and high-temperature processing lines.

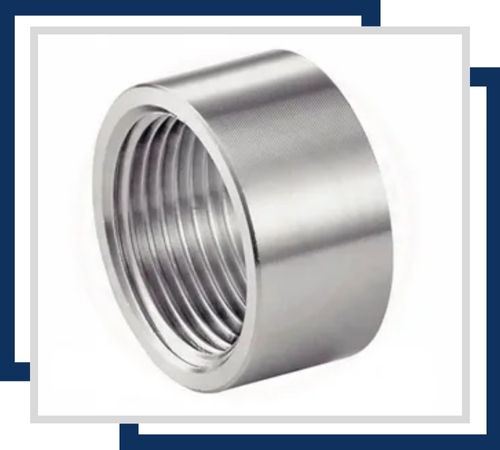

These compact 347 threaded half couplings ensure secure extensions or repairs of pipes, featuring superior thermal and corrosion resistance for tough industrial applications.

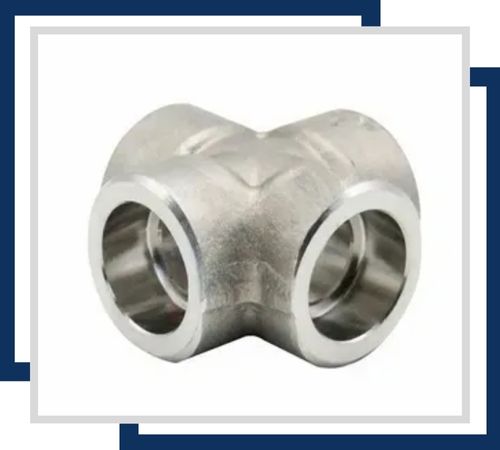

The 347 socket weld crosses facilitate multi-directional pipeline connections with durable, leak-proof joints, making them suitable for high-pressure and high-temperature environments.
Stainless Steel 347/347H Forged Fittings are extensively used in high-temperature piping systems, chemical processing plants, and power generation facilities. They are ideal for pressure vessels, heat exchangers, boilers, and refineries, where exposure to high heat, corrosive fluids, and thermal cycling is frequent. Their resistance to intergranular corrosion makes them suitable for welded applications, while their high creep strength ensures reliability in elevated temperature service. These forged fittings are also used in aerospace systems, oil and gas installations, and industrial furnaces, where secure, leak-proof connections are required for critical operational safety and performance.
