Harsh Metalloys, located in Mumbai, India, is a well-respected manufacturer and supplier of top-notch Stainless Steel 304/304L Forged Fittings. Renowned for our precision engineering and unwavering commitment to quality, we deliver forged fittings that adhere to international standards and meet the diverse needs of various industries. Stainless Steel 304/304L is a popular austenitic grade known for its outstanding corrosion resistance, weldability, and formability. Our forged fittings are crafted to endure pressure, temperature changes, and tough environments. With a strong focus on customer satisfaction and timely delivery, Harsh Metalloys has earned the trust of clients both in India and around the globe.
When it comes to the composition and mechanical properties of Stainless Steel 304/304L Forged Fittings, they consist of Chromium (18–20%), Nickel (8–12%), Manganese (≤2%), Silicon (≤1%), Phosphorus (≤0.045%), Sulfur (≤0.03%), and Carbon—≤0.08% for 304 and ≤0.03% for 304L. The reduced carbon content in 304L improves weldability and minimizes the risk of carbide precipitation. The mechanical properties include a tensile strength of ≥485 MPa, yield strength of ≥170 MPa, elongation of ≥40%, and hardness of ≤92 HRB. These characteristics guarantee excellent structural performance, corrosion resistance, and suitability for a wide array of industrial applications.
Stainless Steel Forged Fittings Specification : ASTM A182 / ASME SA182
Dimension Standard : ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799
Size : 1/8″ NB to 4″ NB
Type : Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)
Rating Pressure : Threaded End – 2000 /3000/ 6000 LBS. Socket-weld End – 3000 / 6000/ 9000 LBS.
| C | Mn | Si | P | S | Cr | Ni | N | |
|---|---|---|---|---|---|---|---|---|
| 304 | 0.07max | 2.0max | 0.75max | 0.045max | 0.03max | min: 18.0 max: 20.0 | min: 8.0 max: 10.5 | — |
| 304L | 0.03max | 2.0max | 0.75max | 0.045max | 0.03max | min: 18.0 max: 20.0 | min: 8.0 max: 12.0 | 0.10 max |
| Grade | Tensile Strength ksi (min) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
|---|---|---|---|---|---|
| 304 | 75 | 30 | 40 | 201 | 92 |
| 304L | 70 | 25 | 40 | 201 | 92 |
Contact us to get a quick quote for your requirement.
At Harsh Metalloys, all stainless steel 304/304L forged fittings are rigorously tested to ensure quality and reliability. Our products are certified to meet international standards, including ISO, ASTM and ASME specifications. We also provide material test certificates (MTCs), third-party inspection reports and traceability documents to verify performance and compliance.
These fittings offer excellent corrosion resistance, particularly against oxidation and atmospheric corrosion. Typically available in sizes ranging from ¼ inch to 4 inches, they are designed for high-pressure applications and are widely used in piping systems for their strength and durability.

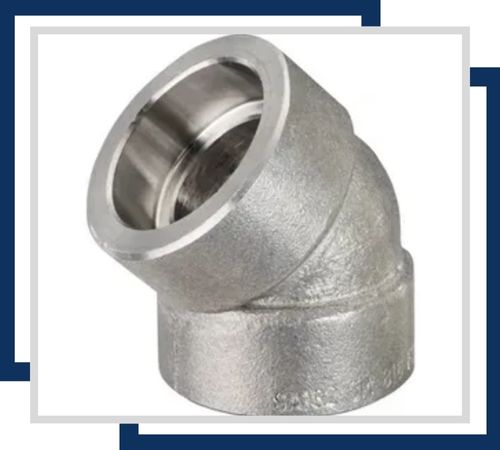

Offering excellent corrosion resistance, this 45-degree elbow is designed to redirect flow in a piping system. Available in sizes from ¼ inch to 4 inches, it is suitable for high-pressure and high-temperature applications, ensuring reliable and leak-proof connections.
Highly resistant to corrosion, this elbow facilitates changes in direction with a 45-degree bend. Standard sizes range from ½” to 4″ in diameter. It redirects its flow in pipelines, especially in chemical and petrochemical industries.

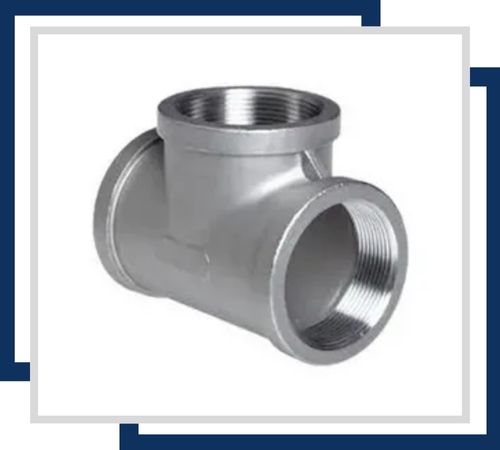

With robust corrosion resistance, this tee fitting branches off a pipeline. Available in sizes from ¼ inch to 4 inches, it allows flow distribution in three directions, making it versatile for various industrial applications.
Providing strong corrosion resistance, this half coupling connects two pieces of pipe. Sizes range from ¼ inch to 4 inches, and it is ideal for applications requiring a reliable and secure connection in both industrial and residential settings.

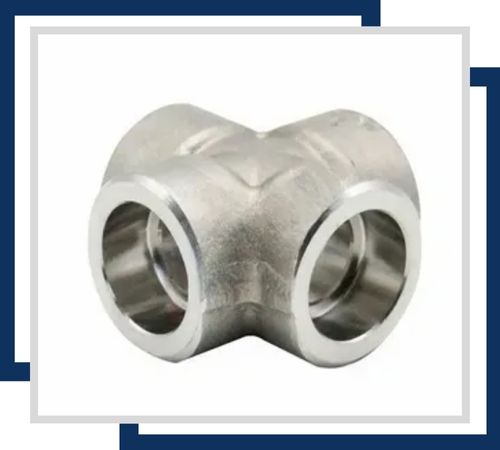

Featuring excellent corrosion resistance, this cross-fitting allows for connecting four pipes. It is available in sizes from ¼ inch to 4 inches and is commonly used in complex piping systems requiring multiple branches.
Stainless Steel 304/304L Forged Fittings are a go-to choice in industries that prioritize durability, hygiene, and resistance to corrosion. You’ll often find them in piping systems for chemical plants, food processing facilities, pharmaceutical production, water treatment plants, and oil and gas pipelines. These fittings are perfect for high-pressure situations, ensuring secure, leak-proof connections in elbows, tees, couplings, and reducers. Their non-reactive properties also make them a great fit for sanitary and cryogenic uses. Plus, they’re commonly utilized in shipbuilding, construction, and power generation because of their impressive mechanical strength, ease of fabrication, and long-lasting performance even in harsh or corrosive environments.
