Harsh Metalloys stands out as a top-notch manufacturer and supplier of high-quality Stainless Steel 304H Forged Fittings, proudly based in Mumbai, India. We prioritize quality, performance, and customer satisfaction, providing sturdy forged fittings that excel in high-temperature and high-pressure settings. Our 304H forged fittings are crafted with cutting-edge technology and premium raw materials, guaranteeing outstanding strength, corrosion resistance, and durability. Commonly utilized in the petrochemical, power generation, and refining sectors, our fittings comply with global standards like ASME, ASTM, and ANSI. At Harsh Metalloys, we blend precision engineering with dependable service to adapt to the changing demands of both domestic and international markets.
Stainless Steel 304H Forged Fittings are designed with a higher carbon content to enhance strength and heat resistance. Their typical chemical makeup features Chromium (18–20%), Nickel (8–11%), Carbon (0.04–0.10%), Manganese (≤2%), Silicon (≤1%), Phosphorus (≤0.045%), and Sulfur (≤0.03%). In terms of mechanical properties, they boast a tensile strength of at least 515 MPa, yield strength of at least 205 MPa, elongation of 40% or more, and a hardness of no more than 95 HRB. These fittings are perfect for high-temperature applications, maintaining their structural integrity even under stress and in corrosive environments, ensuring reliability and longevity in critical operations.
| Standard | ASTM A182 / ASME SA182 |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304H | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 10.5 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
The rigorous testing and certifications of Harsh Metalloys help ensure that their Stainless Steel 304H Forged Fittings meet the finest quality standards. Every product, whether in raw material analysis or dimensional checks and pressure tests, is carefully tested. With authentications from respected authorities, it adheres strictly to international standards while ensuring reliability and durability and great performance in a critical application.
These fittings are available in sizes from 1/8″ to 4″ and offer reliable, leak-free connections in high-pressure systems. They are commonly used in petrochemical, power generation, and oil and gas industries.

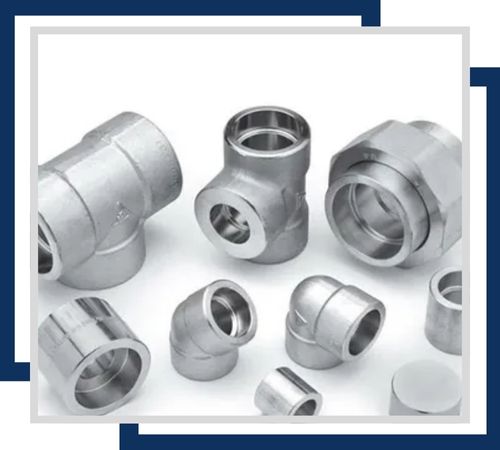

Threaded fittings, ranging from 1/8″ to 4″, provide ease of installation and maintenance. Suitable for low-pressure applications, they are widely used in plumbing, heating, and cooling systems.

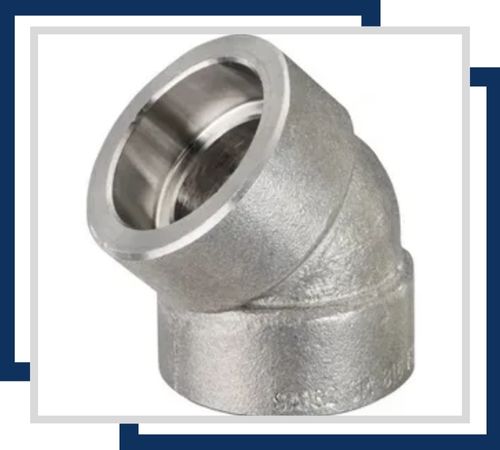

These elbows, available in sizes from 1/8″ to 4″, allow for smooth directional flow changes. They are ideal for piping systems requiring high-strength connections and reduced flow resistance.

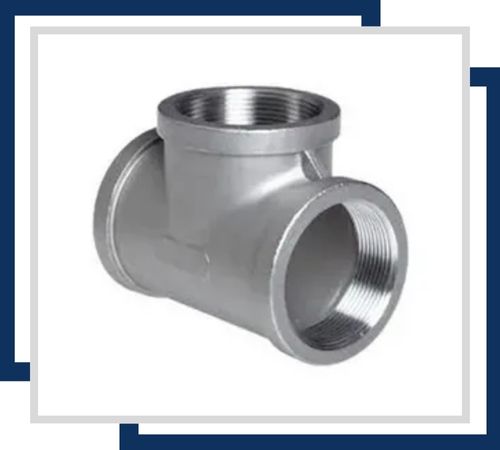

Threaded tees, in sizes ranging from 1/8″ to 4″, branch off the main line in a piping system. They provide reliable performance in various industrial and commercial applications.

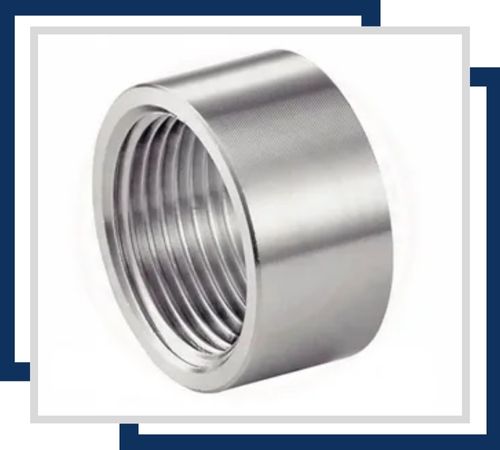

These couplings, available in sizes from 1/8″ to 4″, join two pipes or fittings. They offer easy assembly and disassembly, making them suitable for maintenance and repair work.

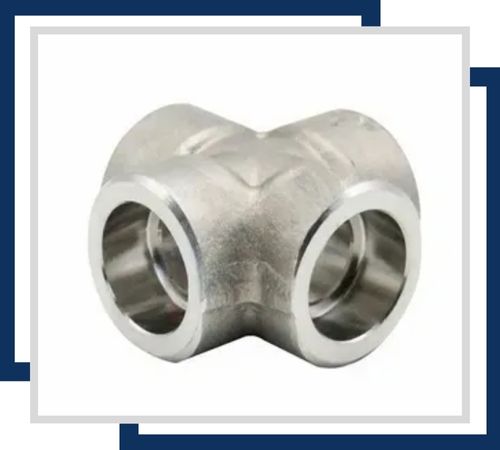

Socket weld crosses, ranging from 1/8″ to 4″, are designed to connect four pipes at a single junction. They are used in high-pressure applications where a strong, leak-proof connection is essential.
Stainless Steel 304H Forged Fittings are widely utilized in high-temperature and high-pressure systems across a range of industries. You’ll find them in power plants, petrochemical facilities, oil and gas refineries, heat exchangers, and boiler systems. These fittings are perfect for steam lines, process piping, and superheaters because of their outstanding creep resistance and strength at elevated temperatures. They’re also used in industrial furnaces, chemical processing units, and thermal reactors. These fittings ensure secure, leak-proof connections, which are crucial in systems where durability and safety are paramount. With their impressive corrosion resistance and precise dimensions, they are essential in demanding and aggressive operational environments.
