Harsh Metalloys is a leading producer and supplier of Stainless Steel 310H Forged Fittings in Mumbai, India. We are an expert in creating high-performance forged fittings using top-quality stainless steel, withstanding hard temperatures and corrosive conditions. Our SS 310H Forged Fittings have excellent longevity, high strength, and corrosion resistance. With sophisticated manufacturing methods and rigorous quality checks, Harsh Metalloys provides products at international standards. We cater to numerous industries with tailor-made solutions, prompt delivery, and cost-effective prices, developing long-term relationships with clients in India and overseas markets.
Forced Fittings of Stainless Steel 310H contain 24–26% chromium, 19–22% nickel, and greater carbon content than the regular 310 for better creep resistance and strength at high temperatures. Other ingredients are manganese, silicon, sulfur, phosphorus, and iron. These fittings have good mechanical properties such as a tensile strength of approximately 515 MPa, yield strength of about 205 MPa, and good elongation of up to 40%. The Brinell hardness is about 217 and SS 310H forged fittings retain structural integrity in thermal and mechanical loads, and therefore, these are suitable for high-temperature and high-pressure conditions.
| Standard | ASTM A182 / ASME SA182 |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 310H | 0.04 – 0.10 | 2.0 max | 1.00 max | 0.045 max | 0.030 max | 24.00 – 26.00 | – | 19.00 – 21.00 | 53.885 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1402 °C (2555 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
Contact us to get a quick quote for your requirement.
We ensures the highest standards for its stainless steel 310H lattice fittings through stringent testing and certification programs. Extensive testing of each component is carried out, including dimensional testing, mechanical testing and corrosion resistance evaluation. Certifications such as Mill Test Reports (MTR) and ISO compliance ensure the reliability and performance of each fitting.

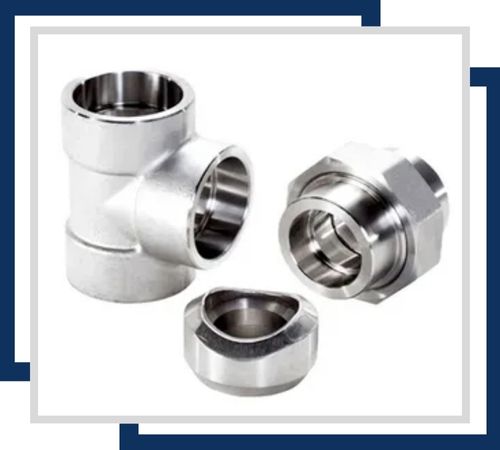

Corrosion-resistant and designed for high-temperature applications, these fittings are ideal for joining pipes. Sizes typically range from 1/4 inch to 4 inches. Dimensions vary based on pipe size, with standard schedules available.

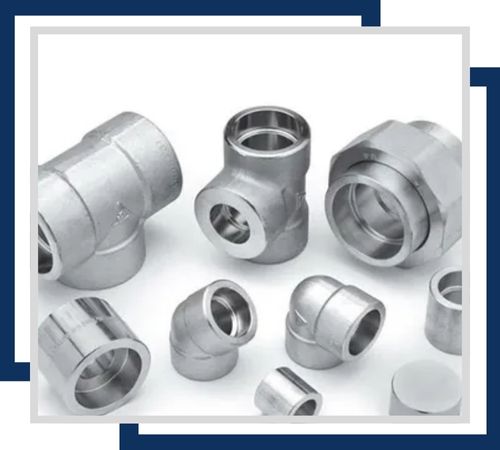

Offering excellent corrosion resistance, these fittings are used where welding is impractical. Common sizes range from 1/8 inch to 2 inches. They are available in various threads per inch, adhering to ANSI standards.

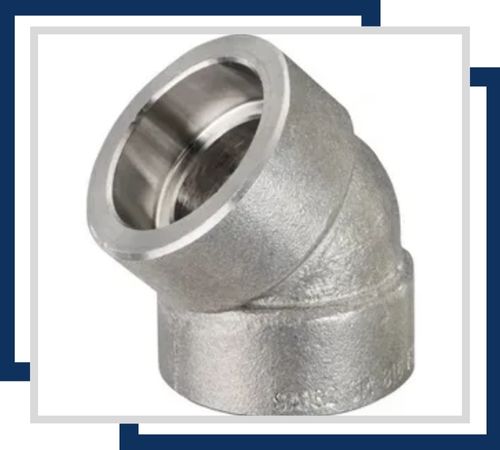

This elbow provides high resistance to oxidation and corrosion at elevated temperatures. Available in sizes from 1/2 inch to 4 inches, it helps in redirecting flow at a 45-degree angle. Dimensions conform to ANSI/ASME standards.

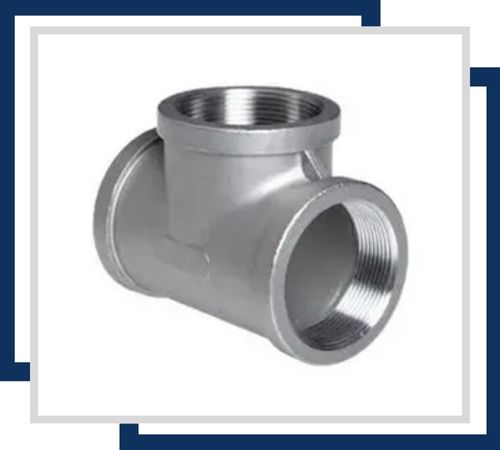

Corrosion-resistant and durable, the threaded tee connects three pipes. Sizes generally range from 1/4 inch to 4 inches, with dimensions following standard pipe thread specifications for ease of connection.

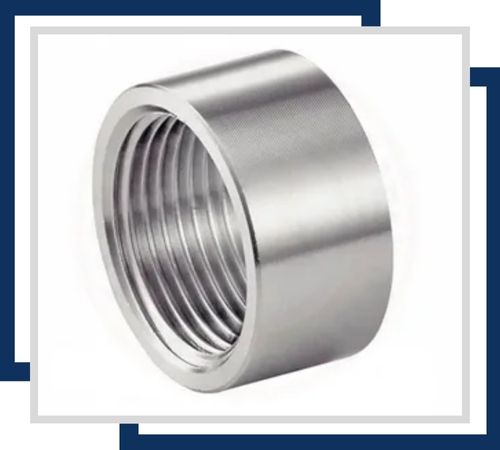

Offering superior resistance to high temperatures and corrosion, this coupling is used for pipe connections. Sizes typically range from 1/4 inch to 2 inches. It features internal threads that match standard pipe sizes.

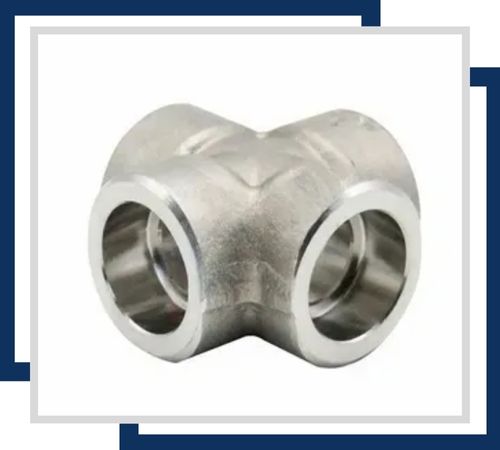

With excellent corrosion resistance, the socket weld cross allows for the connection of four pipes at a single junction. Common sizes range from 1/2 inch to 2 inches, with dimensions based on standard pipe specifications.
Stainless Steel 310H Forged Fittings have wide applications in high-temperature strength and corrosion-resistance-demanding industries. They find applications in heat exchangers, furnace components, superheater and reheater tubing, power generation plants, and petrochemical processing equipment. Their heavy-duty build qualifies them for the purpose of piping and systems conveying hot gases or corrosive liquids. They find applications in refineries, thermal processing units, and oceanic environments as well. SS 310H forged fittings provide leak-tight, high-strength connections and are thus essential for applications that include thermal cycling and high-pressure and high-temperature service conditions.
