Harsh Metalloys is a reputable manufacturer and supplier of AWS Class E385-16 Electrodes, located in Mumbai, India. These electrodes are specifically designed for welding austenitic stainless steels, providing exceptional corrosion resistance and impressive strength. With features like excellent arc stability, a smooth bead appearance, and easy slag removal, E385-16 electrodes are perfect for critical welding tasks. Produced under rigorous quality control to comply with AWS standards, these electrodes find extensive use in sectors such as chemical processing, food and beverage, pharmaceuticals, and marine environments. Harsh Metalloys guarantees consistent quality and dependable welding performance for even the most demanding industrial applications.
AWS Class E385-16 Electrodes are primarily made up of 18–20% chromium, 11–14% nickel, and 2–3% molybdenum, with a low carbon content that helps minimize carbide precipitation and boost corrosion resistance. The addition of molybdenum improves resistance to pitting and crevice corrosion. These electrodes yield weld metal with a tensile strength of at least 570 MPa, a yield strength of 400 MPa or more, and an elongation of at least 30%. E385-16 electrodes offer outstanding toughness and ductility, and they can be used with both AC and DC+ polarity, making them suitable for all welding positions.
| Classification | AWS A5.4, E385-16 |
| Form | Welding Electrode, Welding Rods |
| Type Of Current | AC-DCEP (Direct Current Electrode Positive) |
| Welding Position | F, V, OH, H |
| Size | 2.0 mm, 2.50 mm, 3.15 mm, 4.00 mm, 5.0 mm |
| AC/DC+ | AC or DC (+) |
| JIS Specification | BS 2926 19.9 A R |
| Other Specification | DIN 8556 E19 9 R 23 A |
| AWS E385-16 Coated Electrodes Application & uses |
|
| Grade | C | Cr | Cu | Fe | Mn | Mo | Ni | N | P | Si | S |
| SS E385-16 | 0.015 max | 20.5 max | 1.70 max | Bal | 2.10 max | 4.60 max | 25.2 max | 0.04-0.08 | 0.018 max | 0.45 max | 0.009 max |
Contact us to get a quick quote for your requirement.

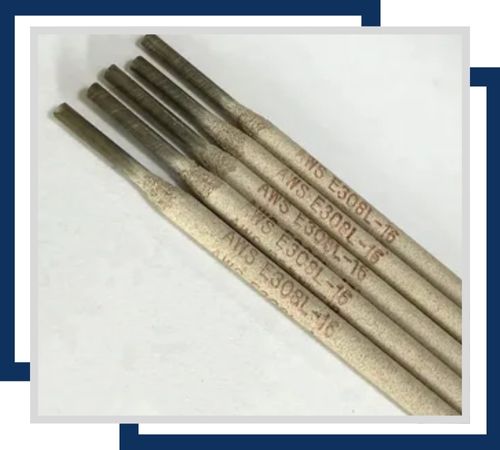

These electrodes offer excellent corrosion resistance, particularly for welding high-strength stainless steel structures. They come in various sizes, including 3.2 mm (1/8 in) and 4.0 mm (5/32 in) diameters, providing strong welds with smooth, light coatings.

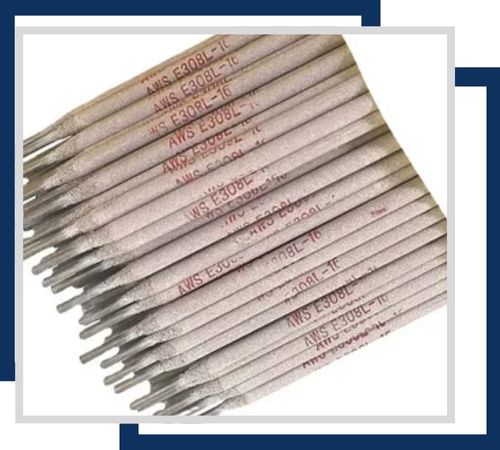

Featuring superior corrosion resistance, these electrodes are ideal for heavy-duty welding tasks. They are available in 3.2 mm (1/8 in) and 4.0 mm (5/32 in) diameters, designed for high-strength applications with thicker coatings for enhanced performance.

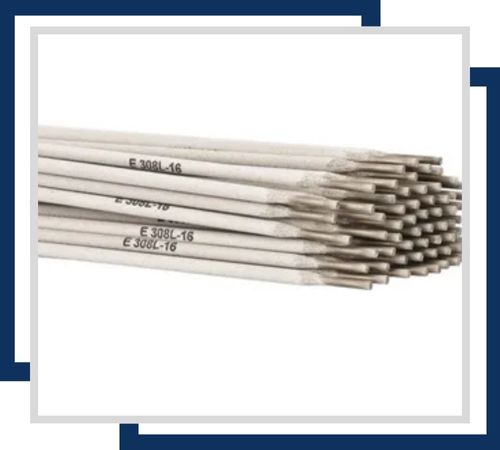

These electrodes are used in shielded arc welding processes for stainless steel, providing robust corrosion resistance. They are offered in sizes like 3.2 mm (1/8 in) and 4.0 mm (5/32 in) diameters, ensuring strong, reliable welds with excellent shielding properties.
AWS Class E385-16 Electrodes are primarily designed for welding high-performance stainless steels, especially in tough chemical and marine settings. You’ll often find them in applications like chemical reactors, heat exchangers, pharmaceutical equipment, food processing machinery, and marine vessels. They also play a crucial role in the pulp and paper industries, wastewater treatment plants, and desalination facilities where resistance to corrosion is essential. Thanks to their impressive ability to resist chloride-induced corrosion and high-temperature oxidation, these electrodes are perfect for fabricating and repairing equipment that faces harsh conditions. Their welds ensure structural integrity and durability, whether in static or dynamic operating environments.
