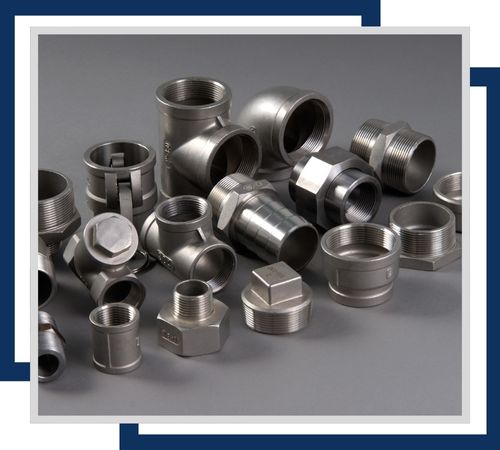

Harsh Metalloys, located in Mumbai, India, is a recognized manufacturer and supplier of high-performance Stainless Steel 904L Pipe Fittings. Engineered for superior corrosion resistance and mechanical strength, our 904L fittings are ideal for demanding applications in harsh chemical and marine environments. We offer a wide range of fittings including elbows, tees, reducers, caps, and stub ends, all manufactured in compliance with international standards such as ASTM and ASME. Known for quality, durability, and precision, Harsh Metalloys ensures reliable solutions for critical piping systems in chemical processing, pharmaceuticals, petrochemicals, and offshore industries.
Stainless Steel 904L Pipe Fittings are made from a non-stabilized austenitic stainless steel containing 19–23% Chromium, 23–28% Nickel, 4–5% Molybdenum, 1–2% Copper, and low carbon content. This alloy offers exceptional resistance to strong reducing acids, such as sulfuric acid, and resists pitting, crevice corrosion, and stress corrosion cracking. 904L fittings have a tensile strength of around 71 ksi (490 MPa), yield strength of about 31 ksi (220 MPa), and elongation of 35%. The fittings are non-magnetic, weldable, and retain excellent ductility and toughness even in extreme conditions, making them suitable for high-integrity piping systems.
| Grades | 201, 202, 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L |
| Type | Seamless / Welded / Fabricated |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Size | ½”NB to 48″NB in |
| Schedule | Sch 10s, 40s, 80s, 160s, XXS. |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 904L | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 10.5 | – |
| Density | 8.0 g/cm3 |
| Melting Point | 1400 °C (2550 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35 % |
Contact us to get a quick quote for your requirement.
We ensures high standards of quality through rigorous testing and certification of the Stainless Steel 904L Pipe Fittings. Each product goes through rigorous analysis, such as chemical composition testing, mechanical testing, and pressure testing. Thus, the fitting is certified against international standards so that clients may rely on these products with complete assurance about reliability, performance, and compliance.
When it comes to 904L pipe fittings, you can count on them for outstanding corrosion resistance, particularly in acidic and chloride-heavy environments. This makes them a top choice for chemical processing, marine, and pharmaceutical piping systems.
The 904L butt weld fittings are designed to create strong, seamless connections that boast high corrosion resistance and durability. They’re perfect for handling high-pressure and corrosive fluids.
With 904L socket weld fittings, you get reliable, leak-resistant joints that are ideal for small-diameter, high-pressure piping systems that come into contact with corrosive and aggressive media.
The 904L seamless fittings provide consistent strength and excellent corrosion resistance, making them essential for critical process piping where both purity and durability are key.
If you need four-way flow distribution, 904L cross fittings are the way to go. They offer high resistance to acids and chlorides, making them perfect for complex chemical and offshore piping networks.
The 904L tee fittings allow for branch connections while ensuring excellent resistance to pitting and stress corrosion. They’re ideal for applications in chemical, petrochemical, and marine industries.
Stainless Steel 904L Pipe Fittings are widely used in industries that demand superior corrosion resistance and strength, especially in aggressive environments. Typical applications include piping systems in chemical processing plants, acid production units, oil refineries, and marine environments where chlorides are present. These fittings are also used in heat exchangers, desalination plants, and pharmaceutical production facilities. Their resistance to strong acids, saline water, and harsh chemicals ensures long service life with minimal maintenance. 904L fittings are essential in industries requiring hygienic, corrosion-proof, and high-pressure-capable joints, providing safe and leak-proof connections in critical operations.
