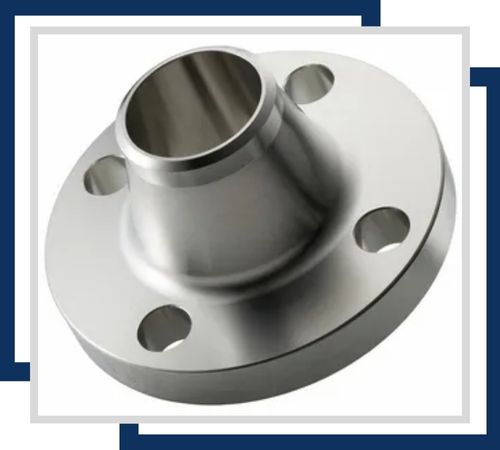

Harsh Metalloys, a well-respected manufacturer and supplier located in Mumbai, India, specializes in top-notch Stainless Steel 321 Flanges that are perfect for high-temperature and corrosive environments. SS 321 is a titanium-stabilized austenitic stainless steel known for its remarkable resistance to intergranular corrosion and oxidation, particularly in situations with frequent temperature changes. These flanges are crafted to meet international standards like ASTM A182 and come in various types, including weld neck, slip-on, blind, socket weld, and threaded options. They are ideal for piping systems in power plants, refineries, and chemical industries, ensuring reliable performance even under extreme conditions.
Stainless Steel 321 Flanges are made up of 17–19% Chromium, 9–12% Nickel, and Titanium for stabilization (at least five times the carbon content) to avoid carbide precipitation during welding. These flanges boast a tensile strength ranging from 515 to 750 MPa and a yield strength of about 205 MPa. They perform exceptionally well at elevated temperatures, reaching up to 870°C (1600°F), and offer good creep resistance and stress rupture strength. SS 321 maintains its structural integrity in oxidizing environments and is non-magnetic when annealed. Its excellent weldability and corrosion resistance make it a great choice for critical flanged connections.
| Standard | ASTM A182 / ASME SA182 |
| Dimensions | ANSI/ASME B16.5, B 16.47 A & B, B16.48, BS4504, BS 10, EN-1092, DIN |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges |
| Size | 1/2″ (15 NB) to 48″ (1200NB) |
| Class/Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| SS 321 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 0.10 max | 9.00 – 12.00 | 5(C+N) – 0.70 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1457 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
We offers the best quality Stainless Steel 321 Flanges Harsh Metalloys,which has undergone intense testing to produce top quality and performance. The flange is thoroughly tested for meeting international standards and specifications. Products supplied by us are certified by recognized authorities for traceability and reliability in each batch. With modern technology and strict quality control, we ensure durability, corrosion resistance, and good mechanical properties. Harsh Metalloys stands by the delivery of flanges with the highest level of industry standards in functionality and safety.

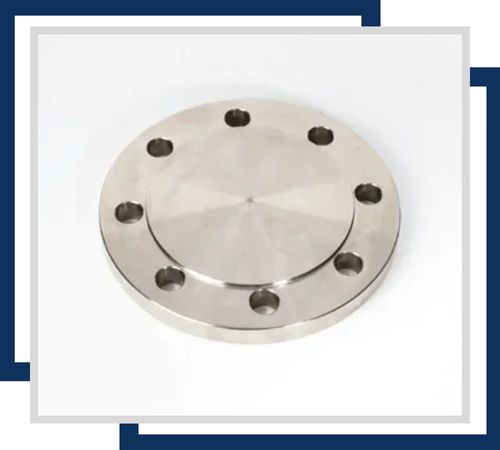

SS 321 blind flanges are used to seal the end of a piping system. Crafted from stainless steel, they provide a robust, corrosion-resistant solution for maintaining system integrity and pressure.
SS 321 ring type joint flanges offer a secure, leak-proof seal in high-pressure environments. Made from stainless steel, they feature a ring groove design for reliable, corrosion-resistant performance in demanding applications.
SS 321 forged flanges are crafted from stainless steel for high strength and durability. They are ideal for demanding applications, offering excellent resistance to high temperatures, corrosion, and mechanical stress.
Stainless Steel 321 Flanges are widely used in industries where high temperature, pressure, and corrosion resistance are critical. Applications include flanged connections in heat exchangers, boiler systems, furnace ducts, exhaust systems, petrochemical pipelines, and chemical process vessels. Their titanium stabilization ensures long-term performance without intergranular corrosion even after welding, making them ideal for continuous service in thermal environments. These flanges are frequently employed in aerospace, power generation, pharmaceutical, and marine applications. The durability and thermal stability of SS 321 flanges make them a dependable choice for secure, leak-proof connections in aggressive operating conditions.
