Harsh Metalloys is a reputable manufacturer and supplier of top-notch Stainless Steel 310H Flanges, based in Mumbai, India. We take pride in delivering precision-engineered products that adhere to global standards. Our SS 310H flanges are specifically designed for high-temperature and high-pressure applications, crafted from heat-resistant austenitic stainless steel that boasts remarkable strength, durability, and resistance to corrosion. With a robust infrastructure and a skilled workforce, Harsh Metalloys guarantees consistent quality, timely deliveries, and complete customer satisfaction. Our Stainless Steel 310H Flanges find applications in various industries, including petrochemical, power generation, and thermal processing, catering to clients both in India and around the globe.
Stainless Steel 310H Flanges are crafted from a high-carbon variant of 310 stainless steel, which enhances their strength at elevated temperatures. The composition features 24–26% chromium, 19–22% nickel, and a carbon content of up to 0.10%. This alloy is known for its excellent oxidation and creep resistance, even at temperatures reaching 1100°C. In terms of mechanical properties, these flanges have a tensile strength of about 515 MPa, a yield strength of 205 MPa, and an elongation of 40%. They come in various types, including weld neck, slip-on, socket weld, and blind, all conforming to ASTM A182 standards and other international specifications.
| Standard | ASTM A182 / ASME SA182 |
| Dimensions | ANSI/ASME B16.5, B 16.47 A & B, B16.48, BS4504, BS 10, EN-1092, DIN |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges |
| Size | 1/2″ (15 NB) to 48″ (1200NB) |
| Class/Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 310H | min. | 0.04 | – | – | – | – | 24.0 | – | 19.0 | – |
| max. | 0.10 | 2.00 | 1.00 | 0.045 | 0.030 | 26.0 | 21.0 | |||
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 310H | 515 | 205 | 40 | 95 | 217 |
Contact us to get a quick quote for your requirement.
We offers the best quality Stainless Steel 310H Flanges- Harsh Metalloys,which has undergone intense testing to produce top quality and performance. The flange is thoroughly tested for meeting international standards and specifications. Products supplied by us are certified by recognized authorities for traceability and reliability in each batch. With modern technology and strict quality control, we ensure durability, corrosion resistance, and good mechanical properties. Harsh Metalloys stands by the delivery of flanges with the highest level of industry standards in functionality and safety.

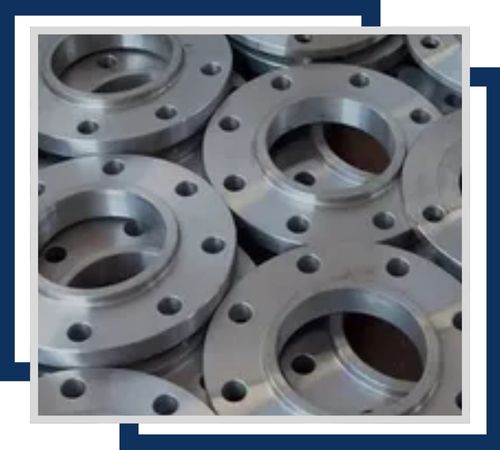

SS 310H long weld neck flanges are robust stainless steel fittings designed for high-pressure applications. Their extended neck provides strength and stability, making them ideal for critical, high-temperature environments.
SS 310H lap joint flanges are versatile stainless steel components designed for ease of assembly and disassembly. They offer excellent resistance to high temperatures and corrosion, making them ideal for dynamic applications.
SS 310H reducing flanges facilitate the transition between different pipe sizes in high-temperature systems. Made from stainless steel, they offer exceptional strength and corrosion resistance, ensuring reliable performance under demanding conditions.
Stainless Steel 310H Flanges are a go-to choice for high-temperature settings like power plants, refineries, and thermal processing units. Their ability to perform reliably under intense heat makes them perfect for applications such as heat exchangers, boilers, furnace components, superheater tubes, and pressure vessels. In the petrochemical and oil & gas sectors, these flanges play a crucial role in connecting piping systems that transport hot gases and corrosive fluids. Thanks to their resistance to thermal cycling and oxidation, they’re also well-suited for use in incinerators, kilns, and exhaust systems. SS 310H Flanges provide durable, leak-proof joints, making them essential for both high-pressure and high-temperature piping needs.
