Premium quality stainless steel 309H flanges designed for corrosive and high-temperature industrial settings are available from Harsh Metalloys, a reputable manufacturer and supplier with headquarters in Mumbai, India. Our SS 309H flanges, which are made with premium raw materials and adhere to international standards, are renowned for their precision engineering and longevity. These flanges are perfect for heavy-duty operations in refineries, thermal plants, and petrochemical facilities because they are made to guarantee sturdy, leak-proof pipe connections. Harsh Metalloys is committed to providing reliable flange solutions that blend durability, strength, and resistance to corrosion—all supported by timely delivery and a customer-focused philosophy.
Stainless steel 309H flanges have a higher carbon content (0.04–0.10%) than SS 309 and are alloyed with 22–24% chromium and 12–15% nickel for enhanced high-temperature strength. These flanges retain an elongation of about 40%, a yield strength of 205 MPa, and a tensile strength of about 550 MPa. Excellent creep resistance and thermal stability at temperatures above 1000°C are provided by the increased carbon content. This austenitic alloy is appropriate for flanges used in extremely hot and corrosive industrial environments because it exhibits exceptional oxidation resistance and structural integrity under thermal cycling.
| Specifications | ASTM A240 / ASME SA240 |
| Thickness | 4mm-100mm |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hairline, sand blast, Brush, etching, etc |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| ASTM A182 GRADE | C | Mn | P | S | Si | Ni | Cr | Mo | Nb | Ti | Others |
|---|---|---|---|---|---|---|---|---|---|---|---|
| F304(1) | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 8.0-11.0 | 18.0-20.0 | ||||
| F304H | 0.04-0.10 | 2.0 | 0.045 | 0.030 | 1.0 | 8.0-11.0 | 18.0-20.0 | ||||
| F304L(1) | 0.030 | 2.0 | 0.045 | 0.030 | 1.0 | 8.0-13.0 | 18.0-20.0 | ||||
| F304N(2) | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 8.0-10.5 | 18.0-20.0 | ||||
| F304LN(2) | 0.030 | 2.0 | 0.045 | 0.030 | 1.0 | 8.0-10.5 | 18.0-20.0 | ||||
| F309H | 0.04-0.10 | 2.0 | 0.045 | 0.030 | 1.0 | 12.0-15.0 | 22.0-24.0 | ||||
| F310 | 0.25 | 2.0 | 0.045 | 0.030 | 1.0 | 19.0-22.0 | 24.0-26.0 | ||||
| F310H | 0.04-0.10 | 2.0 | 0.045 | 0.030 | 1.0 | 19.0-22.0 | 24.0-26.0 | ||||
| F310MoLN | 0.030 | 2.0 | 0.030 | 0.015 | 0.40 | 21.0-23.0 | 24.0-26.0 | 2.0-3.0 | N 0.10-0.16 | ||
| F316 | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | |||
| F316H | 0.04-0.10 | 2.0 | 0.045 | 0.030 | 1.0 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | |||
| F316L(1) | 0.030 | 2.0 | 0.045 | 0.030 | 1.0 | 10.0-15.0 | 16.0-18.0 | 2.0-3.0 | |||
| F316N(2) | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 11.0-14.0 | 16.0-18.0 | 2.0-3.0 | |||
| F316LN(2) | 0.030 | 2.0 | 0.045 | 0.030 | 1.0 | 11.0-14.0 | 16.0-18.0 | 2.0-3.0 | |||
| F316Ti | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | (3) | N 0.10 max | |
| F317 | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 11.0-15.0 | 18.0-20.0 | 3.0-4.0 | |||
| F317L | 0.030 | 2.0 | 0.045 | 0.030 | 1.0 | 11.0-15.0 | 18.0-20.0 | 3.0-4.0 | |||
| F321 | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 9.0-12.0 | 17.0-19.0 | (4) | |||
| F321H | 0.04-0.10 | 2.0 | 0.045 | 0.030 | 1.0 | 9.0-12.0 | 17.0-19.0 | (5) | |||
| F347 | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 9.0-13.0 | 17.0-20.0 | (6) | |||
| F347H | 0.04-0.10 | 2.0 | 0.045 | 0.030 | 1.0 | 9.0-13.0 | 17.0-20.0 | (7) | |||
| F348 | 0.08 | 2.0 | 0.045 | 0.030 | 1.0 | 9.0-13.0 | 17.0-20.0 | (6) | Co 0.20 Ta 0.10 | ||
| F348H | 0.04-0.10 | 2.0 | 0.045 | 0.030 | 1.0 | 9.0-13.0 | 17.0-20.0 | (7) | Co 0.20 Ta 0.10 |
| ASTM A182 Grade | Minimum Tensile Strength in MPa | Minimum Yield point in Mpa | Minimum Elongation in % | Minimum Reduction of in min, % |
| Stainless Steel Flanges | 515 | 205 | 30 | 50 |
Contact us to get a quick quote for your requirement.
We provides Stainless Steel 309H Flanges- Harsh Metalloys,which has undergone intense testing to produce top quality and performance. The flange is thoroughly tested for meeting international standards and specifications. Products supplied by us are certified by recognized authorities for traceability and reliability in each batch. With modern technology and strict quality control, we ensure durability, corrosion resistance, and good mechanical properties. Harsh Metalloys stands by the delivery of flanges with the highest level of industry standards in functionality and safety.

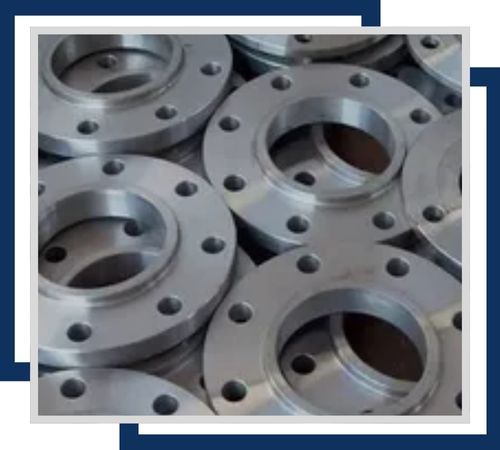

The SS 1.4833 socket weld flange, known for its excellent high-temperature and corrosion resistance, provides a secure, durable connection in critical applications, ensuring performance and reliability in harsh industrial environments.
The ASTM A182 F309 ring-type joint flange offers exceptional high-temperature strength and corrosion resistance. It ensures reliable, leak-proof connections in demanding environments, making it ideal for critical industrial applications.
UNS S30900 spectacle blind flanges deliver superior high-temperature strength and corrosion resistance. Ideal for pipeline isolation and maintenance, these flanges ensure robust, reliable performance in demanding industrial settings.
In high-temperature service applications like power generation, chemical processing, oil and gas refineries, and furnace construction, stainless steel 309H flanges are widely utilised. They are perfect for joining pipes in boilers, heat exchangers, incinerators, and exhaust systems because of their great strength and resistance to oxidation and scaling. These flanges are frequently used in systems that move aggressive chemicals or hot gases. Additionally, SS 309H flanges function dependably in high-pressure steam lines and flue gas desulfurization units. Their robust design lowers maintenance costs and downtime by guaranteeing leak-proof connections and long-term performance in demanding operating environments.
