Harsh Metalloys, based in Mumbai, India, is a reputable manufacturer and supplier of premium-grade Stainless Steel Ball Valves designed for precise and reliable flow control in demanding environments. Fabricated from top-quality stainless steel grades such as 304, 316, and 904L, our ball valves offer superior corrosion resistance, durability, and pressure handling. Available in two-piece, three-piece, full port, and reduced port configurations, they meet international standards like API 608, ASME B16.34, and ISO. Harsh Metalloys supplies these valves to diverse industries including oil & gas, water treatment, chemical processing, food & beverage, and pharmaceutical manufacturing.
Stainless Steel Ball Valves are made from austenitic stainless steel comprising 18–25% Chromium and 8–22% Nickel. Grades such as 316 and 904L also include Molybdenum, enhancing resistance to chlorides and aggressive chemicals. These valves offer tensile strengths of 485–750 MPa and yield strengths between 170–500 MPa depending on grade and heat treatment. The stainless steel body and precision-engineered ball ensure smooth rotation, leak-proof sealing, and resistance to pressure, corrosion, and high temperatures. Excellent mechanical strength and non-reactivity make these valves ideal for handling both clean and corrosive fluids.
| Size | 40 MM TO 300 MM |
|---|---|
| Temperature | -29°C — +180°C |
| Available Connection | BSP/ BSPT/ NPT/ Flanged/ Welded |
| Nominal Pressure | P10/PN16 |
| Suitable Medium | Water,Sewage,Seawater,Gas,Food,Oils,etc |
| Applications | Water, Oil, Gas, |
| Operation Temperature | -10°C~150°C |
| Material | C | Si | Mn | P | S | Cr | Ni | N |
|---|---|---|---|---|---|---|---|---|
| Stainless Steel | 0.080 max | 0.75 max | 2.00 max | 0.045 max | 0.030 max | 18.00-20.00 | 8.00-10.50 | 0.100 max |
| Material | Yield Strength | Tensile Strength | Elongation (%) | Reduction of Area (%) | Hardness Max | |
|---|---|---|---|---|---|---|
| Min (Mpa) | Min (Mpa) | Min | Min (50mm) | HB | HR B | |
| Stainless Steel | 170 | 458 | 30 | 50 | 201* | 92* |
Contact us to get a quick quote for your requirement.
The testing and certifications make sure that quality is maintained with the stainless steel ball valves from Harsh Metalloys. Each valve, therefore, gets quality checks based on pressure tests, leakage tests, and durability tests. Our certified valves ensure good performance, reliability, and safety in industrial use, which symbolizes our focus on excellence and customer satisfaction.
This valve features a one-piece design with flanged ends, available in sizes from 1/2″ to 12″. It offers exceptional corrosion resistance, making it ideal for various industrial applications requiring robust and reliable flow control.

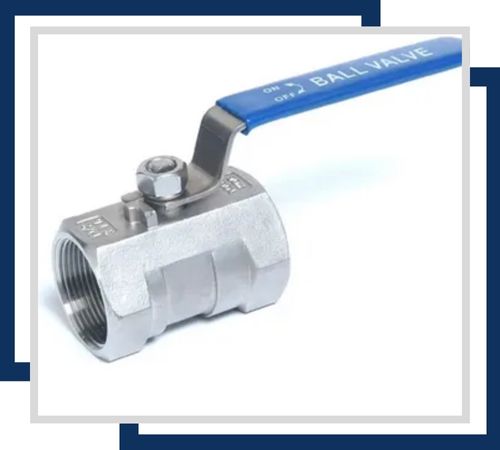

Featuring a one-piece design with screwed ends, this ball valve is available in sizes from 1/4″ to 4″. Its corrosion-resistant stainless steel construction ensures durability and reliability in a wide range of applications.

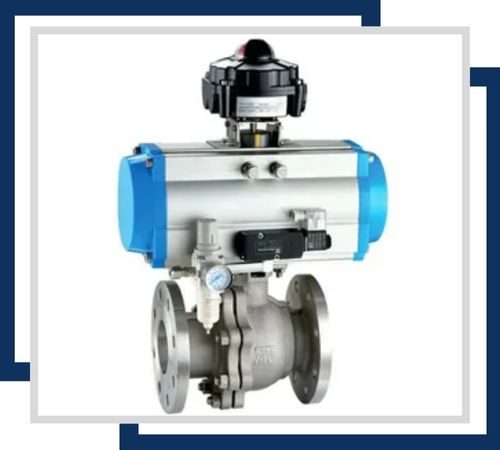

This ball valve comes with pneumatic actuation, providing automated flow control. Available in sizes from 1/2″ to 12″, it offers superior corrosion resistance and is perfect for automated systems in demanding environments.

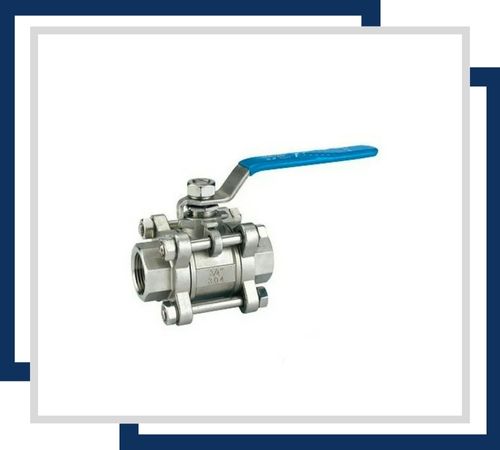

Designed with three-piece construction, this forged stainless steel ball valve is available in sizes from 1/2″ to 4″. Its high corrosion resistance and easy maintenance make it ideal for high-performance industrial applications.

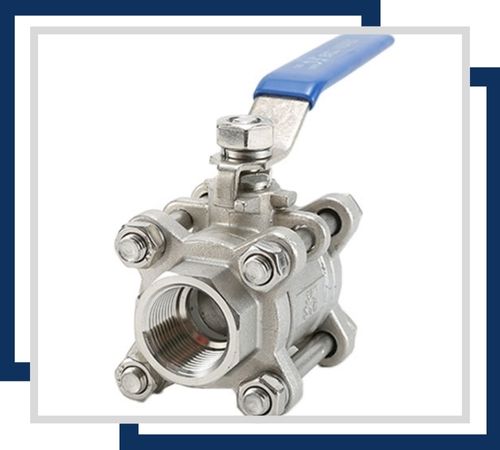

This valve features a three-piece design with an OD base, available in sizes from 1/2″ to 4″. Made from corrosion-resistant stainless steel, it provides reliable performance and easy maintenance in various industrial settings.

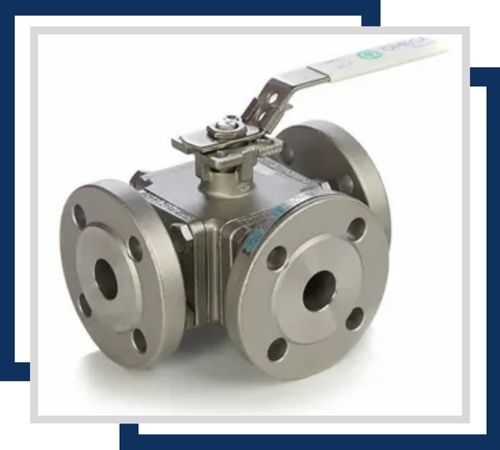

Featuring a three-piece design with flanged ends, this three-way ball valve is available in sizes from 1/2″ to 12″. Its corrosion-resistant construction allows for versatile flow control in complex piping systems, suitable for industrial applications.
Stainless Steel Ball Valves are extensively used for on/off and throttling control of liquids and gases in high-performance systems. Common applications include pipelines in oil & gas refineries, chemical plants, and water treatment facilities. Their corrosion resistance and tight sealing make them suitable for hygienic processing in the food, beverage, and pharmaceutical industries. These valves are also employed in HVAC systems, marine operations, power plants, and fire protection systems. With options for manual, electric, or pneumatic actuation, stainless steel ball valves offer dependable performance, minimal maintenance, and long service life in both industrial and commercial flow control systems.
