Harsh Metalloys is a prominent manufacturer and exporter of high-quality Stainless Steel 316 Valves in Mumbai, India. We are known for our passion for excellence and precision engineering and provide an array of SS 316 valves that address various industrial applications. We produce our products from superior quality raw materials and state-of-the-art manufacturing processes to guarantee durability, corrosion resistance, and consistent performance under extreme conditions. With its emphasis on customer satisfaction, delivery on time, and competitive pricing, Harsh Metalloys has gained a respected position in the domestic as well as global market as a reliable source for stainless steel valve solutions.
| Material | Stainless Steel |
|---|---|
| Seal Material | PTFE/ RPTFE |
| Working Pressure | 1.6 – 6.4Mpa |
| Working Temperature | -29°C — +180°C |
| Availabe Size | 1/2″-4″,(DN15-DN100) |
| Available Connection | BSP/ BSPT/ NPT/ Flanged/ Welded |
| Nominal Pressure | P10/PN16 |
| Operation | Manual,Pneumatic, Electric |
| Suitable Medium | Water,Sewage,Seawater,Gas,Food,Oils,etc |
| Standards | GB9112,DIN2501,BS4504,ISO2084,ANSI125 |
| Applications | Water, Oil, Gas, |
| Nominal Diameter | DN40-DN300 handle lever |
| Operation Temperature | -10°C~150°C |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 67.845 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
Stainless Steel 316 valves, available in sizes from 1/4″ to 12″, offer superior corrosion resistance and durability. Ideal for harsh environments, they ensure reliable performance in marine, chemical, and high-temperature applications.

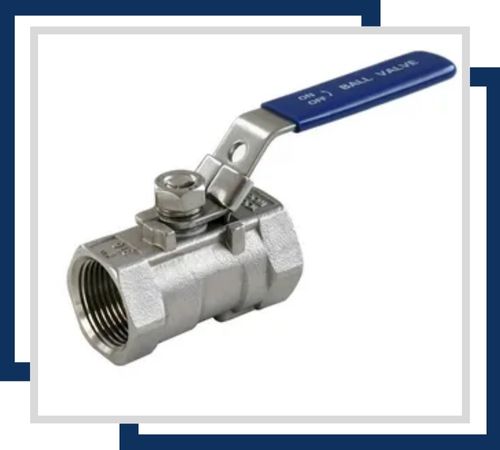

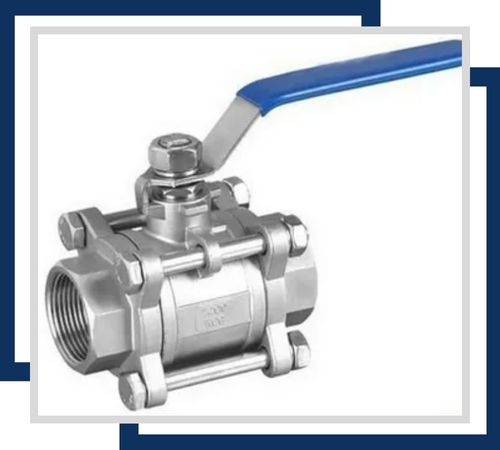

Stainless Steel 316 ball valves, ranging from 1/4″ to 6″, provide smooth, reliable flow control with excellent corrosion resistance. Suitable for aggressive fluids and high-pressure environments, they ensure robust and long-lasting performance.

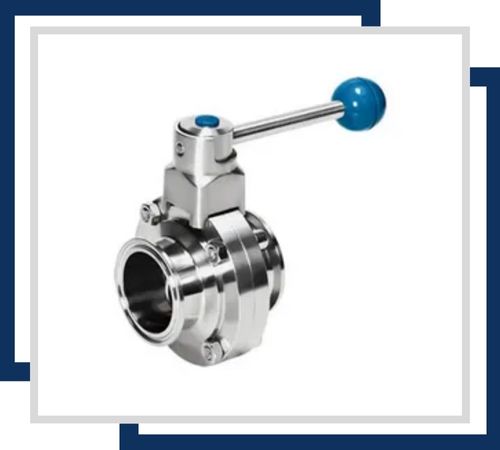

Stainless Steel 316 butterfly valves, available from 2″ to 12″, offer efficient flow regulation with high corrosion resistance. Their durable construction makes them ideal for use in chemical processing and marine applications.

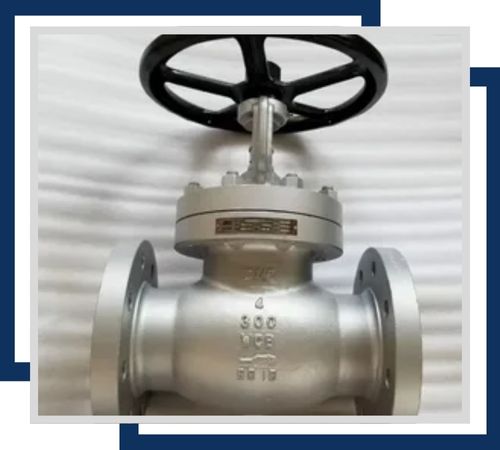

Stainless Steel 316 globe valves, sized from 1″ to 12″, deliver precise flow control with exceptional corrosion resistance. Perfect for high-pressure and high-temperature applications in industrial and marine environments.

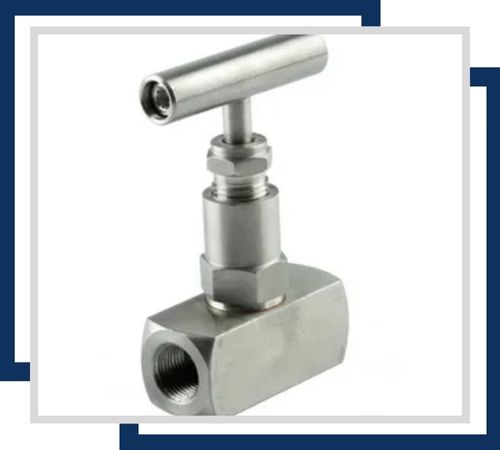

Stainless Steel 316 needle valves, available in sizes from 1/4″ to 2″, provide accurate flow control and high corrosion resistance. Ideal for handling aggressive fluids and high-pressure systems.

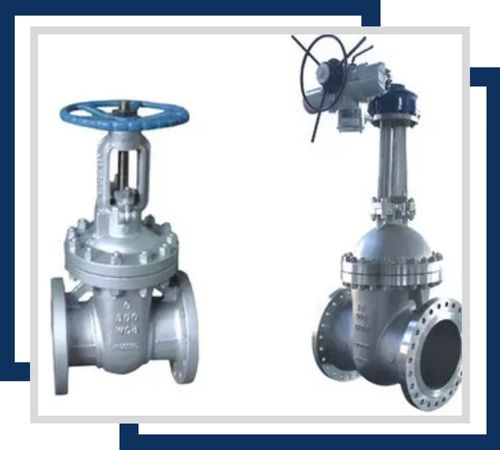

Stainless Steel 316 gate valves, sized from 1″ to 12″, offer reliable on/off flow control with excellent corrosion resistance. Suitable for marine, chemical, and industrial applications, they ensure durability and performance.
Iron makes up the majority of stainless steel 316 valves, but important alloying elements like 16–18% chromium, 10–14% nickel, and 2–3% molybdenum improve corrosion resistance, particularly against chlorides. Tensile strength of approximately 515 MPa, yield strength of 205 MPa, and elongation of 40% in 50 mm are typical mechanical characteristics of SS 316. It retains strength at high temperatures and provides exceptional toughness even at cryogenic temperatures. Because of these characteristics, SS 316 valves are perfect for industrial, chemical, and marine settings that demand strong mechanical durability and resistance to corrosion.
