Based in Mumbai, India, Harsh Metalloys is a reputable producer and supplier of premium stainless steel 316L valves. With our corrosion-resistant and long-lasting valve solutions, we serve a variety of industries and have a solid reputation for precision engineering and dependable product performance. To satisfy international standards, our SS 316L valves are made with premium raw materials and cutting-edge technology. These valves are well-known for having a low carbon content, providing excellent weldability and making them perfect for demanding applications. Harsh Metalloys is a favoured option in both domestic and foreign markets because we guarantee reliable product quality, prompt delivery, and customer satisfaction.
Iron makes up the majority of stainless steel 316L valves, but they also contain 16–18% chromium, 10–14% nickel, 2–3% molybdenum, and less than 0.03% reduced carbon, which improves weldability and corrosion resistance. With an elongation of 40% in 50 mm, a yield strength of 170 MPa, and a tensile strength of roughly 485 MPa, they demonstrate exceptional mechanical qualities. Because SS 316L maintains its exceptional toughness at both high and low temperatures, it can be used in demanding settings. Superior performance in welded structures and corrosive environments is ensured by the low carbon content, which reduces carbide precipitation.
| 316L Stainless Steel Valves Specification | |
|---|---|
| Specifications | ASTM A276, A351, A494, A961 / ASME SA276, SA351, SA494, SA961 |
| Temperature Rating | PTFE 450F,(232C)/ Grafoil 700 F(371C) |
| End Connection | Male and Female NPT, BSPT, Socket Weld (SW) or Dual Ferrule Tube Connections, Male to Female |
| Working Pressure | Up to 6000 PSIG, valves are also available that can handle higher pressure |
| Pressure rating | 150#,300#,600#,800#,1500# |
| Grade | C (MAX) | Si (Max) | Mn (Max) | P (Max) | S (Max) | Cr | Mo | Ni | N (Max) |
| 316L | 0.030 | 1.00 | 2.00 | 0.045 | 0.030 | 16.00/18.00 | 2.00/3.00 | 10.00/15.00 | 0.10 |
| Grade | Yield Strength | Tensile Strength | Elongation (%) | Reduction of Area (%) | Hardness Max | |
| Min (Mpa) | Min (Mpa) | Min | Min (50mm) | HB | HR B | |
| 316L | 170 | 485 | 30 | 50 | 217* | 95* |
Contact us to get a quick quote for your requirement.

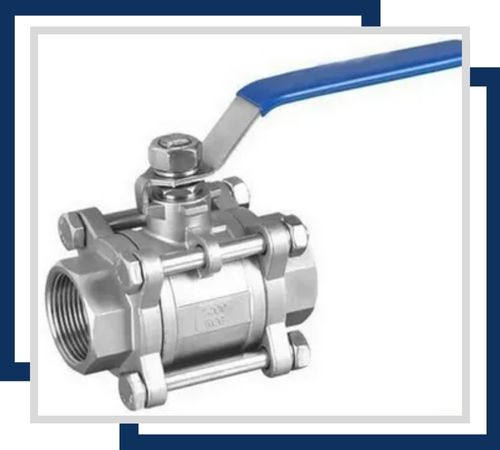

Stainless Steel 316L valves, available in sizes from 1/4″ to 12″, offer exceptional corrosion resistance and low carbon content. Ideal for use in sensitive and high-purity applications, they ensure reliable performance.

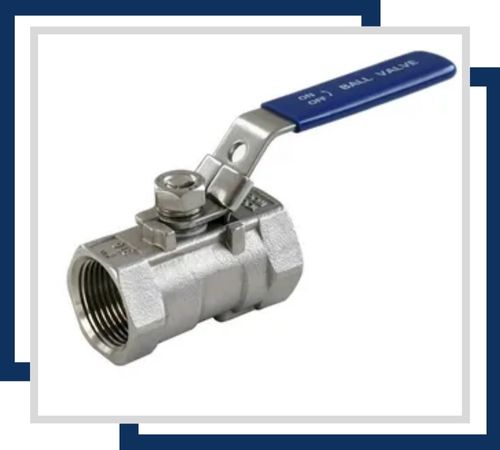

Stainless Steel 316L ball valves, ranging from 1/4″ to 6″, provide smooth, reliable flow control with superior corrosion resistance. They are suitable for handling aggressive chemicals and high-pressure environments.

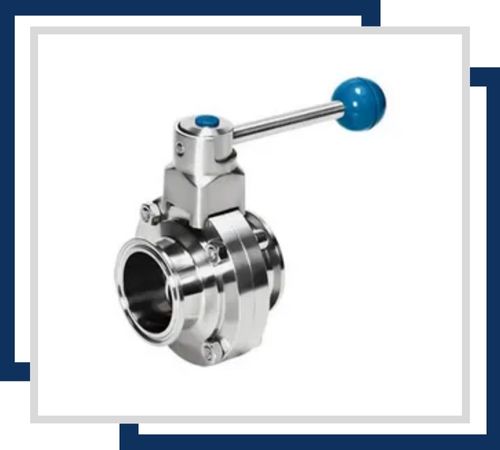

Stainless Steel 316L butterfly valves, sized from 2″ to 12″, offer efficient flow regulation with excellent corrosion resistance. Their low carbon content enhances performance in critical applications, including chemical and pharmaceutical industries.

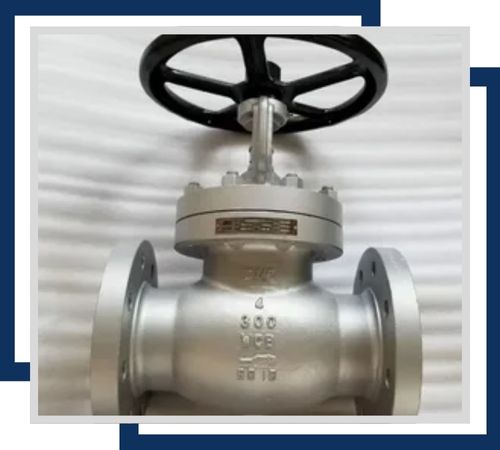

Stainless Steel 316L globe valves, available from 1″ to 12″, deliver precise flow control with high corrosion resistance. Ideal for high-purity and high-temperature applications, they ensure long-lasting durability and reliability.

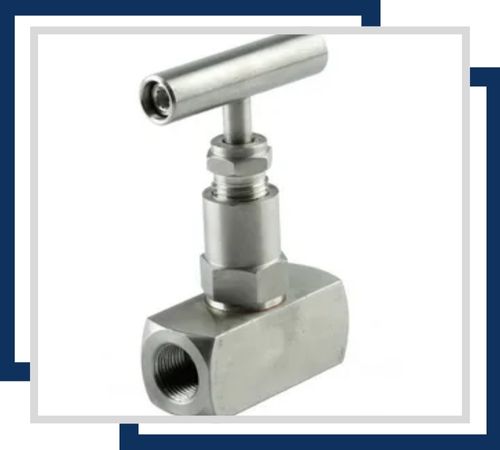

Stainless Steel 316L needle valves, sized from 1/4″ to 2″, provide precise flow adjustment and superior corrosion resistance. They are ideal for high-purity and aggressive fluid applications, ensuring accurate control.

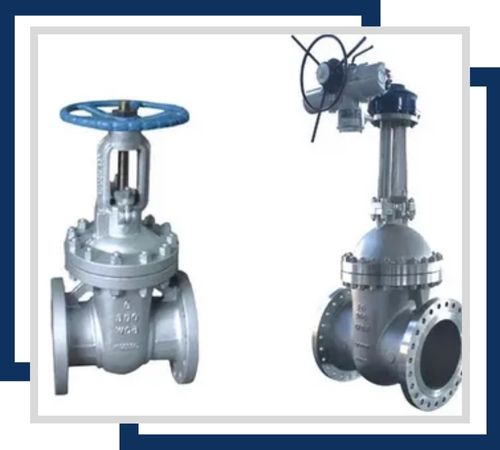

Stainless Steel 316L gate valves, ranging from 1″ to 12″, offer reliable on/off flow control with excellent corrosion resistance. Their low carbon content makes them suitable for use in high-purity and demanding industrial environments.
In industries where corrosion resistance is crucial, particularly in chloride and acidic environments, stainless steel 316L valves are widely used. Common uses include wastewater treatment plants, food and beverage industries, pharmaceutical manufacturing, marine systems, and chemical and petrochemical processing. They are perfect for use in welded piping systems because of their low carbon content, which guarantees improved weldability and lowers the possibility of sensitisation. Additionally, biotechnology, oil and gas installations, and medical devices use these valves. SS 316L valves are a popular option for long-lasting and high-performance flow control solutions because of their resilience to pitting and crevice corrosion.
