Home > Stud Bolts > Stainless Steel 316L Stud Bolts

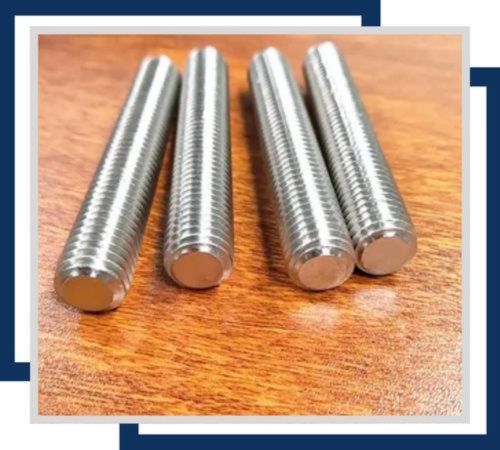

Harsh Metalloys is a renowned manufacturer and supplier of Stainless Steel 316L Stud Bolts based in Mumbai, India. These stud bolts are fabricated from low-carbon austenitic stainless steel, offering superior corrosion resistance, especially in chloride-rich environments. Known for their excellent strength, weldability, and formability, 316L stud bolts are ideal for applications where resistance to harsh chemicals, acids, and marine conditions is critical. We supply these fasteners in various sizes, lengths, and threading options to meet global standards like ASTM A193. Our products are trusted in industries such as oil & gas, petrochemical, marine, and pharmaceuticals.
Stainless Steel 316L Stud Bolts consist of 16–18% chromium, 10–14% nickel, 2–3% molybdenum, and a maximum of 0.03% carbon, which enhances corrosion resistance and minimizes carbide precipitation. These bolts deliver a tensile strength of around 485 MPa and yield strength of 170 MPa. The molybdenum content improves pitting and crevice corrosion resistance, especially in marine and acidic environments. 316L offers excellent mechanical strength, toughness, and durability across a wide temperature range, making it suitable for both cryogenic and elevated-temperature service.
| Grade | Stainless Steel 316L Fasteners. |
| Standard | ASTM A193 / A194, ASME SA193 / SA194, IS, BS, ANSI |
| Size | M02 to M33 |
| Length | 5 METERS |
| Grade | C | Ni | Mn | S | Cr | Si | P | Mo | N | |
| SS 316L | min. | – | 10.0 | – | – | 16.0 | – | – | 2.00 | – |
| max. | 0.08 | 14.0 | 2.00 | 0.03 | 18.0 | 0.75 | 0.045 | 3.00 | 0.10 | |
| Grade | Yield Strength 0.2% Proof (MPa) min | Tensile Strength (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| SS 316L | 170 | 485 | 40% | 95 | 217 |
Contact us to get a quick quote for your requirement.

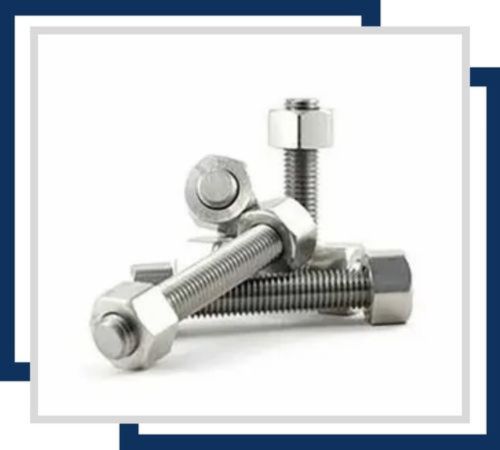

These have threads on both ends, designed for secure connections in flanges or equipment. Ideal for high-corrosion environments due to 316L’s excellent resistance.

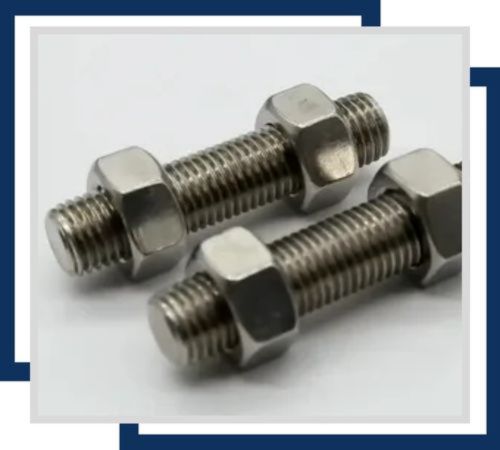

Fully threaded rods offer versatile fastening solutions in structural and mechanical applications. Known for superior corrosion resistance in marine and chemical environments.
These are high-strength fasteners with threads throughout or at both ends. Perfect for applications requiring durability and resistance to corrosion.
Conforming to DIN 1.4301 standards, these bolts provide precise dimensions and quality assurance. Suitable for a variety of industries requiring corrosion-resistant fasteners.

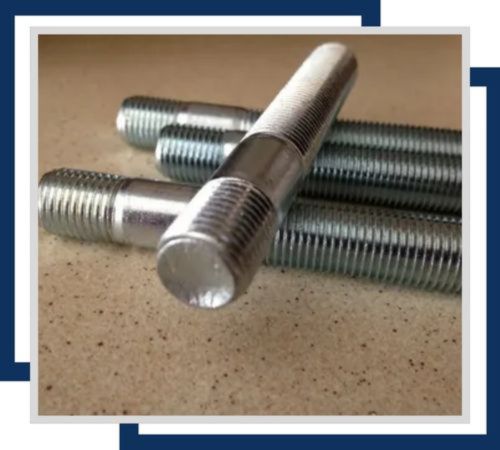

Manufactured under UNS S31600 designation, these bolts ensure high strength and excellent corrosion resistance. Ideal for chemical, petrochemical, and marine applications.

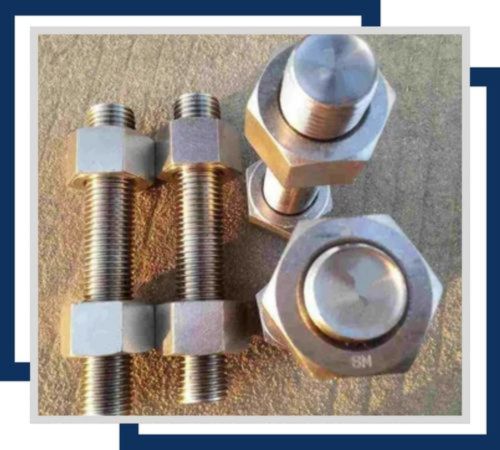

These bolts feature a flush head for smooth, low-profile applications. Designed for environments demanding both aesthetic appeal and high performance.
We have high-quality assurance of the complete transparency of our Stainless Steel 316L Stud Bolts. All the orders are provided with all the required documents such as commercial invoice, packing list, fumigation certificate, heat treatment chart, and an NABL-approved lab test report. We provide a Material Test Certificate as per EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third-Party Inspection Certificate. Our entire documentation is provided for the highest client satisfaction.
Stainless Steel 316L Stud Bolts are widely used in chemical processing plants, offshore drilling rigs, marine construction, pharmaceutical equipment, food processing units, and power plants. Their low carbon content ensures excellent weldability without the risk of intergranular corrosion after welding. These fasteners are ideal for flanged joints in piping systems, heat exchangers, and pressure vessels where high strength and corrosion resistance are required. Harsh Metalloys provides 316L stud bolts with precision threading and dimensional accuracy, meeting international specifications and ensuring secure and long-lasting fastening in demanding and corrosive environments
