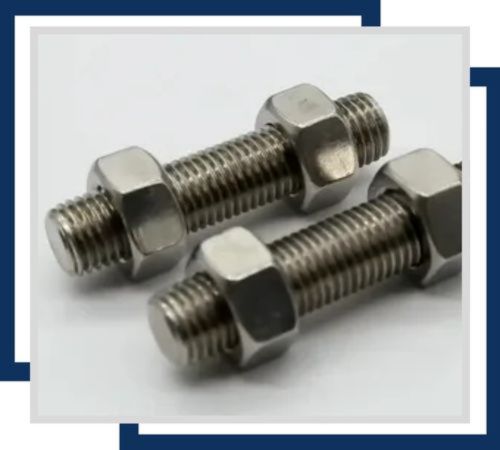

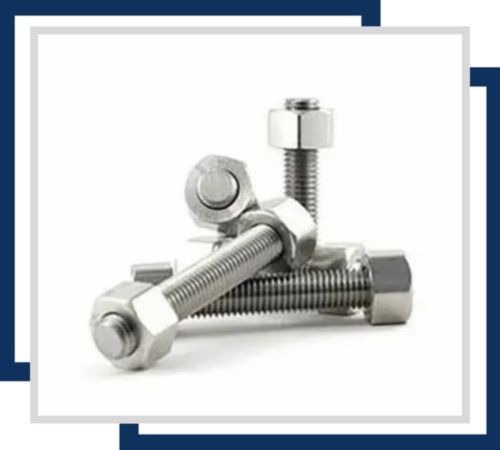

Harsh Metalloys, a reputable manufacturer and supplier based in Mumbai, India, proudly presents a robust and budget-friendly selection of Stainless Steel 202 Stud Bolts. These bolts are specifically engineered for high-strength fastening tasks, ensuring top-notch performance even in mildly corrosive settings. SS 202 is an austenitic stainless steel made from chromium, nickel, and manganese, providing a cost-effective alternative to the more expensive 304-grade stainless steel. Our 202 stud bolts are crafted in line with international standards such as ASTM A276 and ASTM A193, guaranteeing precision, strength, and durability. Perfect for a wide range of industrial applications, Harsh Metalloys is committed to timely deliveries and quality-tested products tailored to meet every project’s needs.
When it comes to the composition and mechanical properties of Stainless Steel 202 Stud Bolts, they generally consist of Chromium (17–19%), Nickel (4–6%), Manganese (7.5–10%), Carbon (≤0.15%), Silicon (≤1%), Phosphorus (≤0.06%), and Sulfur (≤0.03%). These stud bolts boast impressive tensile strength ranging from 515 to 750 MPa, a yield strength of about 275 MPa, an elongation of roughly 40%, and a hardness of up to 95 HRB. The blend of high manganese and lower nickel content ensures solid mechanical strength while keeping costs manageable. While they may not be as corrosion-resistant as 304, SS 202 still holds up well in indoor settings and moderately corrosive environments.
| Specification | Stainless Steel 202 Stud Bolts |
| Standard | all International Standards and ASTM, DIN, BS |
| Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Length | 3 mm to 200 mm | Custom Sizes |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Threads available | UNF, BSW, BSF, METRIC, UNC, or as required |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| 202 Stud Bolts | 0.08 max | 2.0 max | 0.75 max | 0.045 | 0.030 | 18.0-20.0 | – | 8.0-10.5 | 0.10 |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 202 Stud Bolts | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
Stainless Steel 202 anchor bolts offer exceptional strength and corrosion resistance, making them ideal for anchoring structures in challenging environments. Their durability ensures secure and reliable performance in construction and industrial settings.

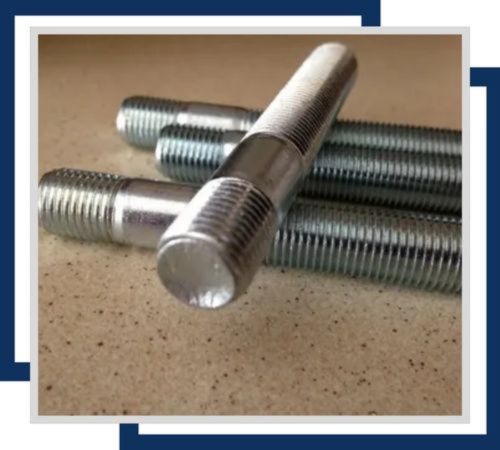

Stainless Steel 202 exhaust bolts are designed for high-temperature and corrosive environments, providing reliable fastening for exhaust systems. Their durability and resistance ensure long-lasting performance in automotive and industrial applications.

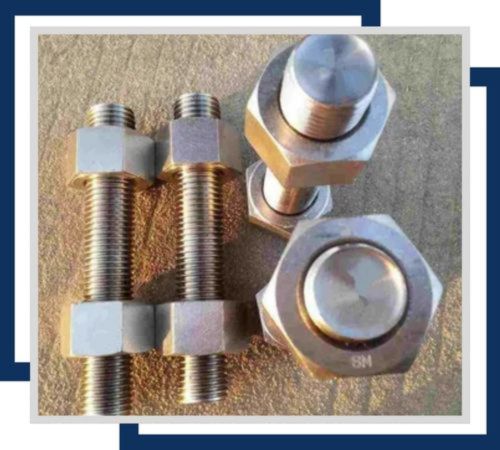

Stainless Steel 202 stud lag bolts offer superior strength and corrosion resistance for heavy-duty fastening in wood or masonry. Ideal for construction and structural projects, they ensure durable and secure connections.
Stainless Steel 202 Stud Bolts are a popular choice across various fields like construction, automotive, railways, industrial machinery, and general engineering. Their impressive strength combined with affordability makes them perfect for assembling equipment, building frames, creating flanged joints, and handling high-tension connections in less critical settings. These bolts shine in interior construction, furniture making, and light industrial projects where they won’t face harsh chemicals or moisture. They’re also a go-to in appliance manufacturing, electrical panels, and agricultural machinery. With their excellent machinability, weldability, and decent resistance to corrosion, they offer a dependable fastening solution for budget-conscious applications.
