Harsh Metalloys, a prominent Mumbai-based manufacturer and supplier company of India, is expert in supplying high-quality Stainless Steel 316H Stud Bolts for various industrial purposes. Praised for their precision-engineered products and international material standards, Harsh Metalloys ensures to supply tough and corrosion-resistant fasteners as per international standards. With great emphasis on customer satisfaction as well as prompt delivery, the company caters to customers in various industries like oil & gas, petrochemical, power, and construction, and thus is a reputable name in the market of stainless steel fasteners.
With important alloying elements such as 16–18% chromium, 10–14% nickel, 2–3% molybdenum, and a higher carbon content (0.04–0.10%) to improve high-temperature strength, stainless steel 316H stud bolts are mainly made of iron. They provide exceptional resistance to corrosion, particularly in chloride environments. In terms of mechanical properties, 316H stud bolts normally have a minimum tensile strength of 515 MPa, a minimum yield strength of 205 MPa, and an elongation of 35% in 50 mm. Because of these characteristics, they are perfect for high-temperature, high-pressure settings found in power generation, chemical processing, and marine applications.
| Fasteners Material Specification | ASTM A194, ASME SA193, UNS S31609 Bolts |
|---|---|
| Standard | DIN, UNI, ISO, JIS, GB, IS, BS, ASME, ANSI, ASTM and all International Standards |
| Fasteners/ Bolts Size | M2, M2.5, M3, M4, M5, M6, M8, M10, M12, M14, M16, M20, M24, M30, M36 to M160 |
| Length | 3 mm to 200 mm |
| Bolts, Studs Threads: | METRIC, BSW, BSF, UNC, UNF or as required |
| SS 316h Fasteners Standard: | ANSI – American National Standards Institute
|
| Source of raw materials | Tata Steel, JSPL, RINL, Usha Martin, Dhamm Steel, Mukund Steel etc. |
| SCOPE OF MANUFACTURE |
|
| Fasteners In Form of: | Hex, Square, Round, Threading as per Gauge Etc. |
| Head drive: | Phillips, Slotted, Phillips/Slot, Six-Lobe, etc |
| bolting Test Certificate: | Manufacturer Test Certificate as per EN 10204 / 3.1 |
| Fasteners finishing: | Zinc (yellow, white, blue, black), black oxide, Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Stainless steel: Passivated Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Stainless Steel, Mechanically Applied coating and some special one like DACROMET |
| Production process | M2-M24: Cold Froging, hot forging M24-M100, machining and CNC for Customized connecting element |
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
316H | Min | 0.04 | 0.04 | 0 | – | – | 16.0 | 2.00 | 10.0 | – |
max | 0.10 | 0.10 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | – |
Grade | Tensile Str (MPa) min | Yield Str 0.2% Proof (MPa) min | Elong (% in 50mm) min | Hardness | |
Rockwell B (HR B) max | Brinell (HB) max | ||||
316H | 515 | 205 | 40 | 95 | 217 |
Contact us to get a quick quote for your requirement.

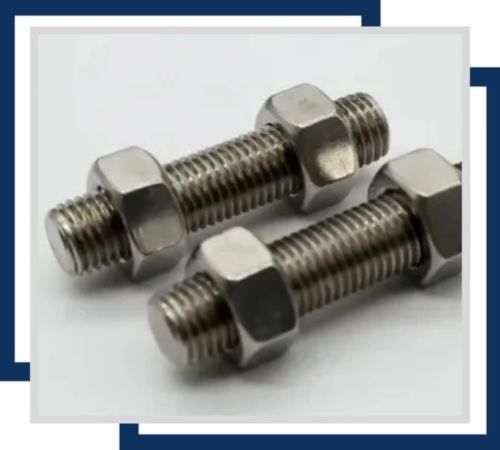

Because of their exceptional corrosion resistance, durability, and high temperature strength, stainless steel 316H stud bolts are perfect for high-pressure, industrial, and marine applications.

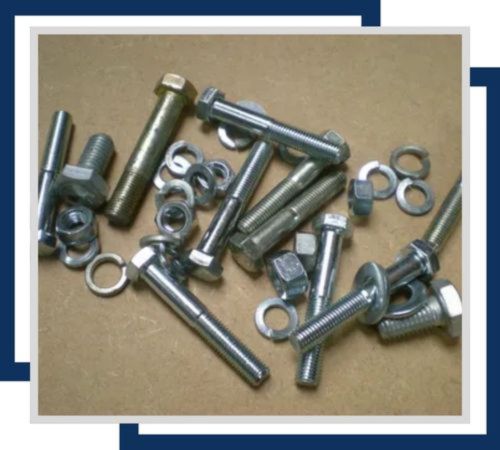

Stainless Steel 316H lag stud bolts offer high strength and superior corrosion resistance, ideal for high-temperature and harsh environments, ensuring durability and reliability in industrial, chemical, and marine applications.

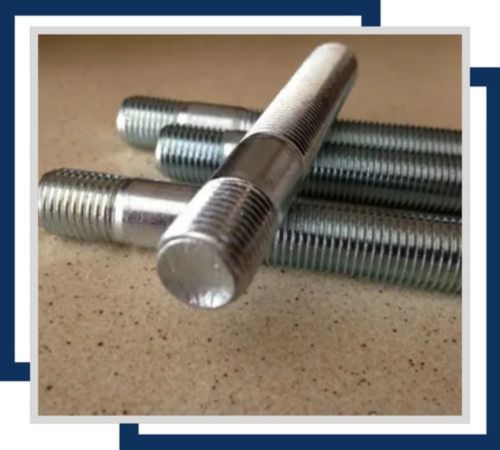

High strength, resistance to corrosion, and heat tolerance make stainless steel 316H Stud Anchor Bolts perfect for fastening structures in high-temperature, marine, and chemical plant settings.

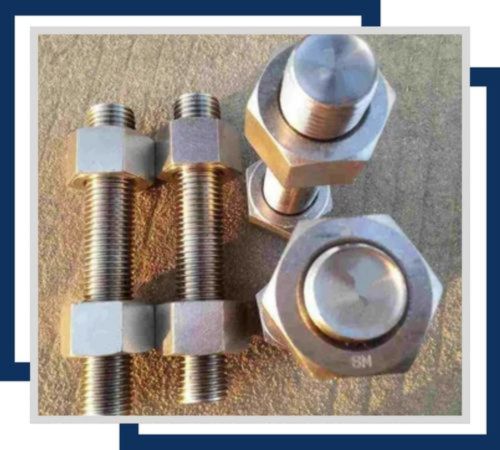

Stainless steel 316H exhaust stud bolts are perfect for high-temperature automotive and industrial exhaust system applications because of their remarkable strength, corrosion resistance, and heat resistance.

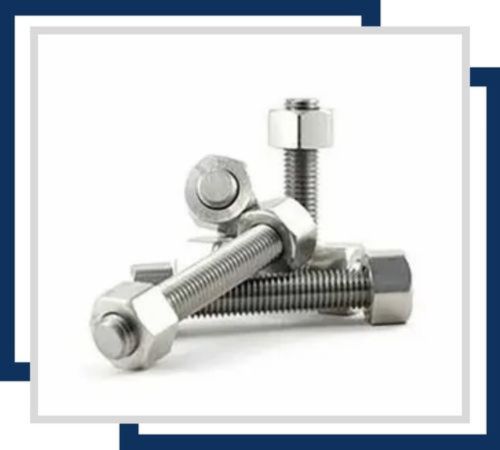

Because of their increased strength and resistance to corrosion, stainless steel 316H stud bolts are frequently utilised in high-temperature and high-pressure settings. They are perfect for use in boilers, heat exchangers, pressure vessels, and reactor components in the petrochemical, oil and gas, and power generation sectors. These bolts are also utilised in chemical processing equipment, offshore platforms, and marine environments where it is essential that they be resistant to conditions that are acidic and chloride-rich. They are appropriate for fastening and structural applications in demanding environments due to their high carbon content and durability, which guarantees long-term performance and dependability under challenging operating circumstances.
