Harsh Metalloys is a trusted name in the manufacturing and supply of top-notch Stainless Steel 310 Fasteners, proudly based in Mumbai, India. Our SS 310 fasteners are crafted to endure extreme temperatures and harsh environments, making them perfect for critical industrial uses. We use only the finest raw materials and cutting-edge technology to ensure our fasteners meet global standards for strength, durability, and performance. Available in a variety of forms like bolts, nuts, washers, screws, and studs, our fasteners guarantee secure and dependable connections even in high-stress situations. With a strong commitment to quality and timely delivery, Harsh Metalloys caters to industries across India and beyond with excellence.
Stainless Steel 310 Fasteners are crafted from a high-chromium (24–26%) and high-nickel (19–22%) austenitic stainless steel alloy, specifically designed for high-temperature applications. This alloy also includes carbon up to 0.25%, which boosts creep resistance and strength at elevated temperatures. The mechanical properties feature a tensile strength of around 515 MPa, yield strength of 205 MPa, and an elongation of 40%. SS 310 fasteners provide outstanding oxidation resistance up to 1150°C, along with impressive ductility and toughness. These fasteners come in various sizes and configurations to meet the needs of different industrial applications and operating conditions.
| Specifications | ASTM F593, F594, F1554 / ASME SF593, F594, F1554 |
|---|---|
| Fasteners size | Bolt / Screw Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes Nuts Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes Washers Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes Machine Screws Size : M1.6 – M12 Self Tapping Screw Size : No.2 – No. 14 |
| Fasteners Length | 3 mm to 200 mm |
| Fastener Threads | UNF, BSW, BSF, METRIC, UNC or as required |
| Standard of Stainless Steel Fasteners | DIN : DIN 934, DIN 931, DIN 970, DIN 933 UTS : UNEF, NPT, UNC, UNS, UNF, NPTF ISO : JIS standards, ISO 4033, ISO 4032, ANSI – American National Standards Institute ASME B18.5 ANSI B 28.2.4 1M as per defined in ASME B16.5 standard SS Stud Bolt length ANSI B 18.2.4 2M as per defined in ASME B18.2.2 SS Hex nuts |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Surface Coating | Ptfe Coated Stainless Steel Fasteners Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
| Fasteners Finishing | Stainless steel : Self-Colour, Passivated, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), Stainless Steel, Sherardized, some special one like DACROMET Geometry and Mechanically Applied coating ,Dacroment, nickel plated, anodizing, plated zinc-nickel Zinc (blue, black, yellow, white), black oxide. |
|
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
|
SS 310 |
0.015 max |
2.0 max |
0.15 max |
0.020 max |
0.015 max |
24.00 – 26.00 |
0.10 max |
19.00 – 21.00 |
54.7 min |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 310 | 515 | 205 | 40 | 95 | 217 |
Contact us to get a quick quote for your requirement.

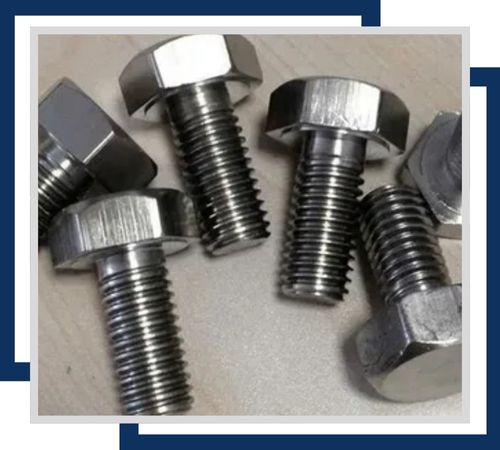

Stainless Steel 310 Bolts offer excellent corrosion resistance in high-temperature environments. Available in various sizes from M3 to M30 and lengths from 10mm to 300mm, they are ideal for structural and high-heat applications.

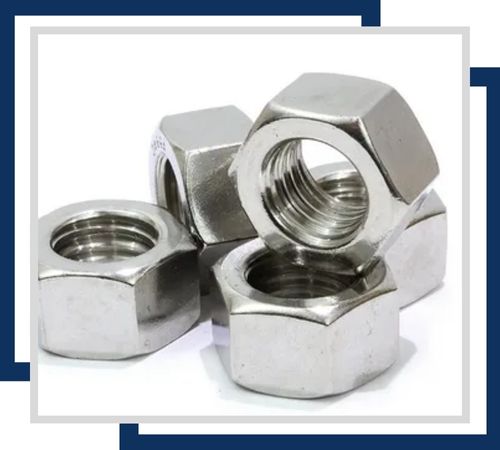

Stainless Steel 310 Nuts provide superior corrosion resistance and high-temperature stability. They come in sizes ranging from M3 to M30, with standard hex dimensions ensuring compatibility with bolts and screws in demanding environments.

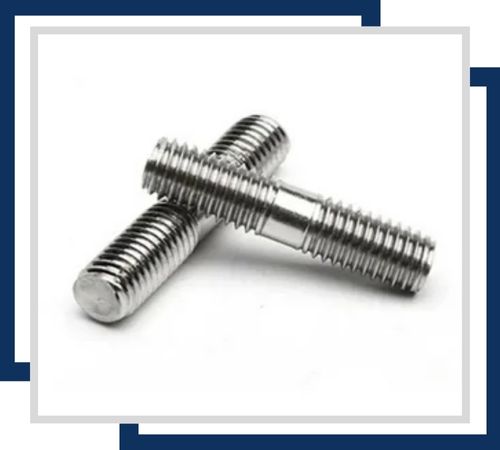

Stainless Steel 310 Stud Bolts are known for their exceptional resistance to oxidation and corrosion at elevated temperatures. Typically available in sizes from M6 to M36 and lengths from 20mm to 300mm, they are used in heavy-duty applications.

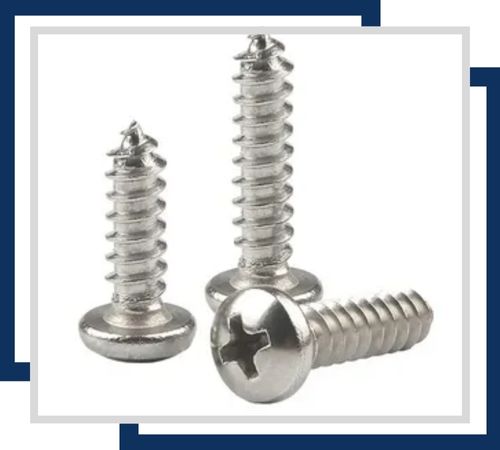

Stainless Steel 310 screws offer outstanding resistance to corrosion and heat. They are available in sizes from M3 to M20 and lengths ranging from 10mm to 200mm, suitable for use in high-temperature and corrosive environments.

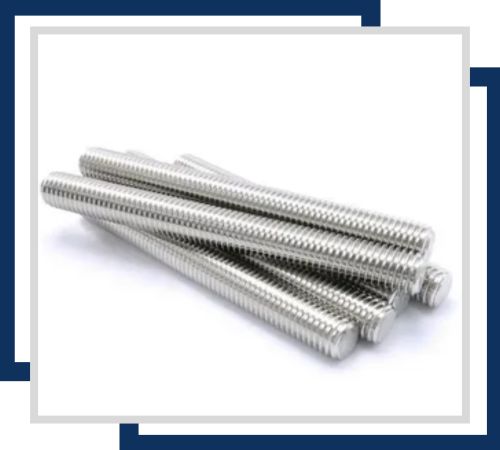

Stainless Steel 310 threaded rods provide excellent durability and resistance to high temperatures and corrosion. They are available in diameters from M6 to M36 and lengths up to 3000mm, making them versatile for various industrial applications.

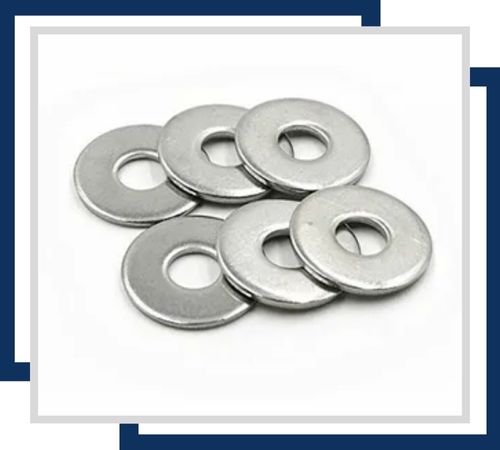

Stainless Steel 310 washers offer superior corrosion and heat resistance, ensuring long-term performance. Sizes range from M3 to M30, with thicknesses typically between 0.5mm and 10mm, suitable for providing stability and load distribution in harsh environments.
Stainless Steel 310 Fasteners are a go-to choice in industries that require exceptional strength at high temperatures and resistance to corrosion. You’ll often find them in applications like heat treatment equipment, furnace fixtures, power plants, petrochemical processing, and exhaust systems. These fasteners are perfect for holding together components in boilers, superheaters, kilns, incinerators, and heat exchangers. In chemical and thermal processing plants, SS 310 fasteners deliver reliable performance, even when faced with thermal cycling and oxidizing conditions. Their durability and ability to resist scaling and deformation at elevated temperatures make them crucial for ensuring the safety and integrity of vital structures in harsh environments.
