Home > Stainless Steel 316/316L Channels
Harsh Metalloys is a renowned manufacturer and supplier of Stainless Steel 316/316L Channels based in Mumbai, India, serving both domestic and international markets with premium-grade stainless steel structural components. These channels are engineered from austenitic stainless steel grades 316 and 316L, offering exceptional resistance to corrosion, pitting, and oxidation, especially in marine and chloride-rich environments. 316L, the low-carbon version, minimizes carbide precipitation during welding, enhancing its weldability. Available in various sizes and dimensions, our SS 316/316L channels are manufactured to meet ASTM and ASME standards and are ideal for structural, architectural, and high-strength industrial applications.
Stainless Steel 316/316L Channels consist of approximately 16–18% Chromium, 10–14% Nickel, and 2–3% Molybdenum, with 316L having a lower carbon content for improved weldability. These channels offer a tensile strength of around 515 MPa, a yield strength of 205 MPa, and excellent elongation and toughness. The presence of molybdenum enhances resistance to pitting and crevice corrosion. With outstanding durability, formability, and mechanical performance across a wide temperature range, SS 316/316L channels are reliable for both structural integrity and long-term service in harsh conditions.
| Standard | ASTM A276, ASTM A479 / ASME SA276, ASME SA479 |
| Condition | HRAP |
| Size Range | Base: 80 to 150 mm Side: 40 to 75 mm |
| Thickness | 5 to 6 mm (depending on size) |
| Grades | 304, 316 |
| Processing | Bar cutting |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni |
|---|---|---|---|---|---|---|---|---|
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 |
| SS 304L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 13 |
| SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 1.0 max | 16.00 – 18.00 | 16.00 – 18.00 | 10.00 – 14.00 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.

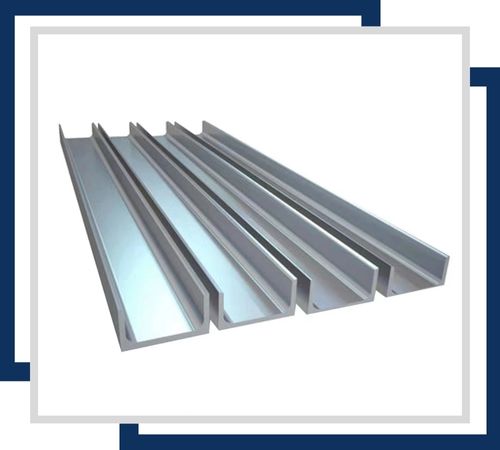

Stainless Steel 316/316L channels are structural elements made from corrosion-resistant stainless steel. They provide high strength and durability, ideal for marine, chemical, and high-temperature applications.

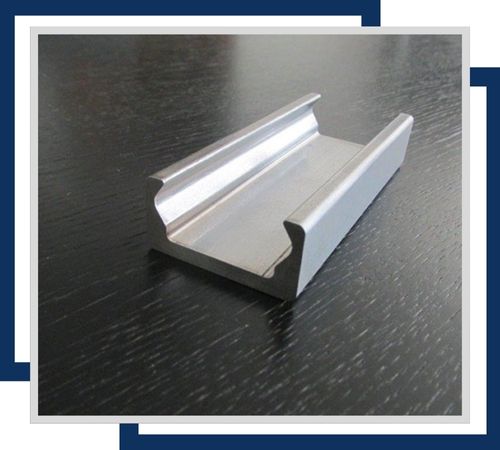

SS 316/316L C channels are stainless steel sections shaped like a “C,” offering high strength and superior corrosion resistance. They are used for support and framing in demanding environments.

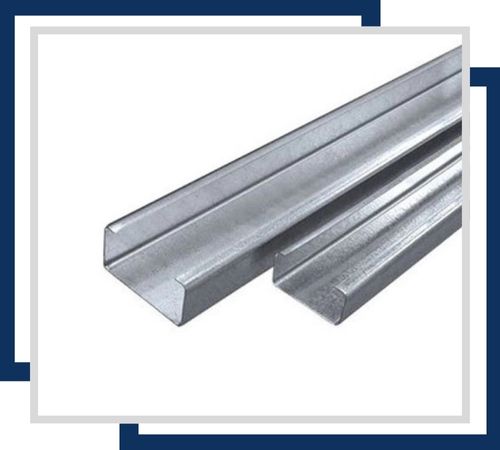

Stainless Steel 316/316L U channels are structural components with a “U” shape, known for excellent strength and corrosion resistance. They are used in marine, chemical, and high-temperature environments for support and reinforcement.

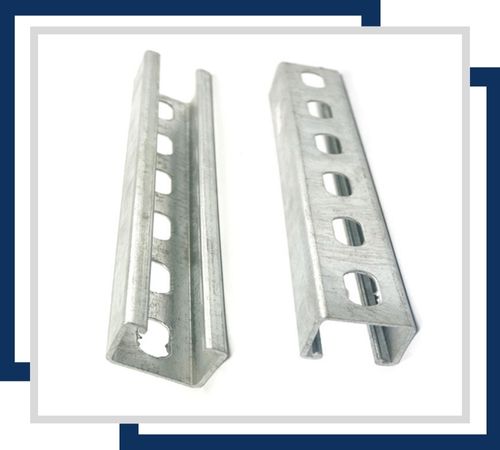

SS 316/316L strut C channels are stainless steel sections with a “C” shape, designed for robust support and framing. They offer high strength, durability, and excellent corrosion resistance for industrial applications.

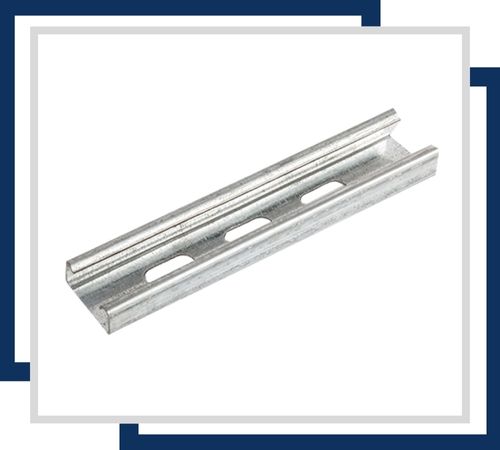

SS 316/316L cold-rolled Unistrut channels are stainless steel channels produced through cold rolling. They offer high strength, excellent corrosion resistance, and are used for versatile support and framing in demanding environments.

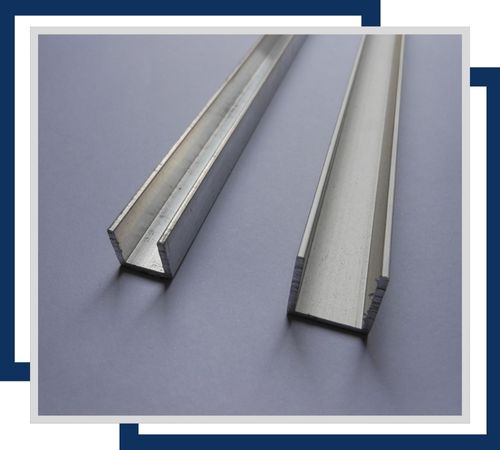

SS 316/316L double C type channels are stainless steel sections with two “C” shapes back-to-back. They provide enhanced strength and stability, suitable for heavy-duty support and structural applications in harsh environments.
Stainless Steel 316/316L Channels are used extensively in industries such as marine, petrochemical, pharmaceutical, food processing, and construction due to their superior strength and corrosion resistance. These channels are ideal for structural frameworks, bracing, supports, and architectural applications, particularly where exposure to corrosive substances is a concern. They are also employed in offshore rigs, tanks, and pressure vessels. The low-carbon 316L variant is especially preferred for welded structures. Harsh Metalloys provides precision-finished channels that meet stringent industry standards, making them the preferred choice for engineers and fabricators seeking longevity and dependable performance.
